Sub-Zero 632/F User Manual

Component Access / Removal
600 Series
(Prior to #1810000)
7-6
#3756270 - Revision B - January, 2006

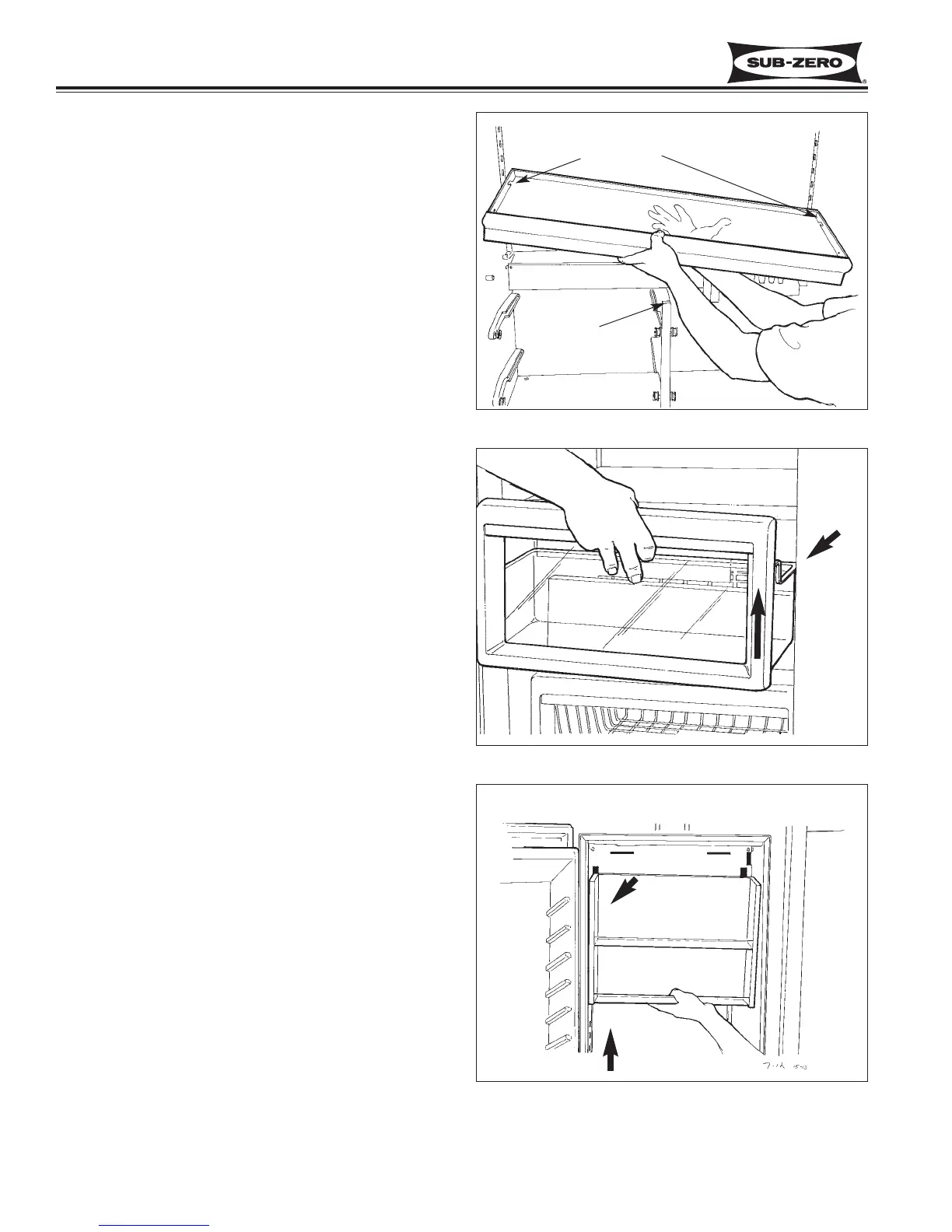

Freezer Glass Shelf (Model 601F)
The glass shelf is secured to the side walls by screws
through the side frames. To remove the freezer glass
shelf, the two top freezer baskets will first need to be
removed. Now, from underneath the glass shelf,
remove the two front mounting screws, and loosen the
two rear screws. (The rear screws fit into slots, so they
do not need to be fully removed.) Then pull shelf for-
ward slightly and lift up and out. (See Figure 7-10)
NOTE: When reinstalling freezer glass shelf, be sure
that the flange at top of freezer basket center slide sup-
port sets into the channel in the freezer glass shelf
front. (See Figure 7-10)
Ice Bucket (Model 601F)
Remove ice bucket by lifting out of top right freezer bas-
ket.
Ice Bucket (Model 611 and 650)
Remove ice bucket by lifting out of left rear corner of
upper freezer basket.
Ice Bucket Assembly
(Model 632 and 642)
Remove ice bucket assembly by pulling ice bucket
open until it stops, then lift up and pull forward. (See
Figure 7-11) When reinstalling, the ice bucket carriage
assembly must be pulled fully forward, then hook rear
flange of ice bucket over carriage assembly and push
ice bucket assembly in.
Juice Can Rack Removal (Model 690)
Remove juice can rack by lifting up and pulling out.
(See Figure 7-12)
Figure 7-12. Model 690 Juice Can Rack Removal
Figure 7-11. Model 632, 642 Ice Bucket Removal
2
Pull out
2
Pull open
1
Lift up
1
Lift up
Figure 7-10. Model 601F Freezer Glass Shelf Removal
Rear Slots
Flange
