Sub-Zero 632/F User Manual

Component Access / Removal
600 Series
(Prior to #1810000)
7-8
#3756270 - Revision B - January, 2006

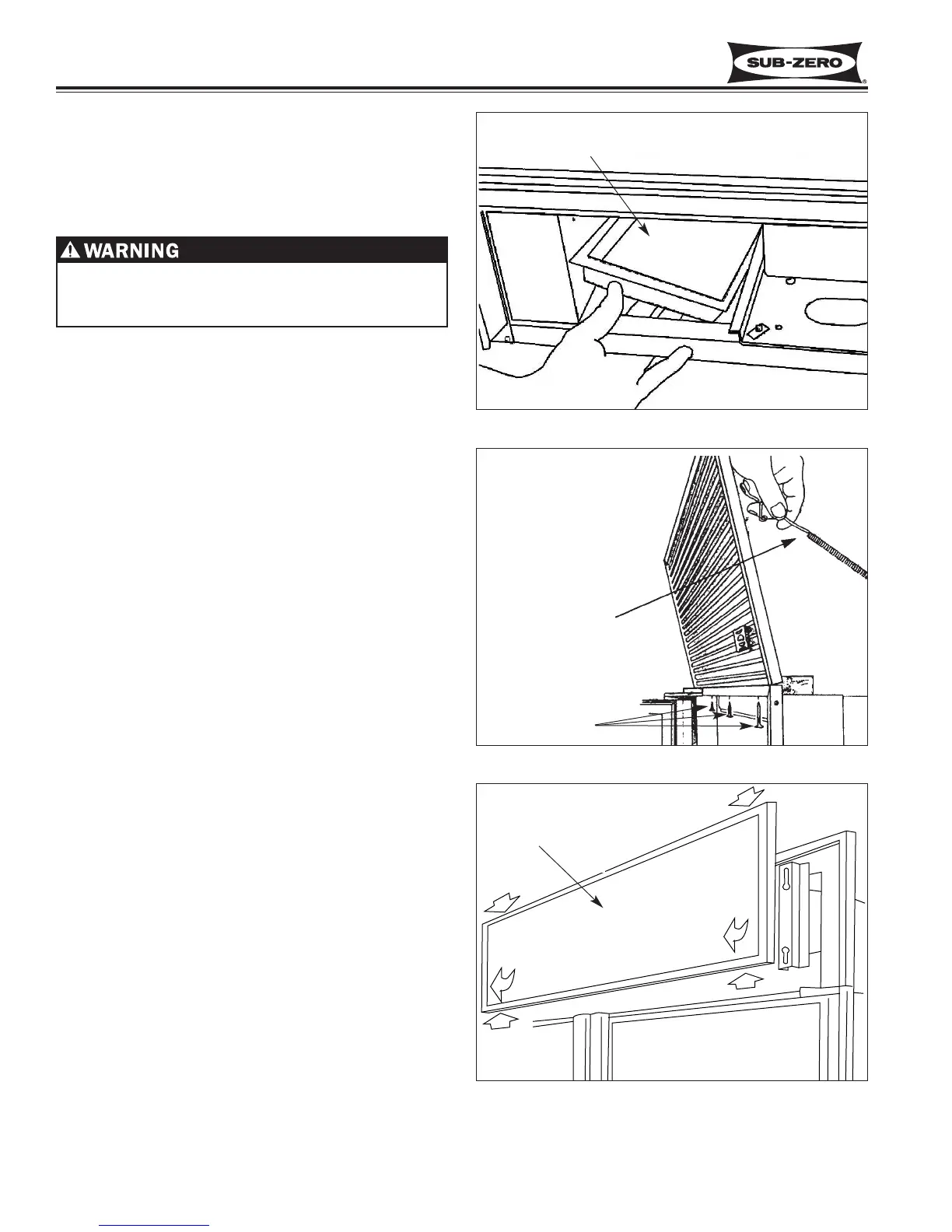

Drain Pan
(Models 601R, 601F)
To access the drain pan, the kickplate and lower grille
section must first be removed. Then push the drain pan
up and out from underneath. (See Figure 7-16)
Louvered Grille and Stainless Steel Grille Assembly
(Models 611/F, 611/S, 632/F, 632/S, 642/F, 642/S,
650/F, 650/S, 690/F, 690/S)
Removal procedures for the standard louvered grille
and stainless steel grille are the same. To remove the
louvered grille assembly, open unit door(s) and extract
the grille screws which pass up through the top main-
frame extrusion into brackets at bottom rear of grille
assembly. Now, tilt the top of grille forward and release
the grille springs from the grille hooks at the back side
of the grille. Then lift grille assembly off. (See Figure
7-17)
Panel Grille Assembly
(Models 611/O, 632/O, 642/O, 650/O)
The panel grille assembly consists of an outer and an
inner grille frame. The outer grille frame attaches to the
unit, while the inner grille frame(which accepts a deco-
rative panel) is easily removable for condenser cleaning
purposes. There are pegs on the back side of the inner
grille frame which fit in key-hole slots in the outer grille
frame. To remove the inner grille frame, lift assembly
up (1) and pull out of key-hole slots at the bottom (2).
Then, pull down and out of key-hole slots at the top (3).
(See Figure 7-18)
To remove the outer grille frame, remove the inner grille
frame first. Now, opening unit door(s) and extract the
grille screws which pass up through the top mainframe
extrusion into bottom extrusion of outer grille frame.
Now, extract the screws at the top front of outer grille
frame and lift frame off.
Figure 7-18. Inner Grille Frame Removal
Figure 7-17. Grille Removal
Grille Spring
Grille Screws
Inner Grille
Frame
3
2
1
2
1
3
Figure 7-16. Model 601R, 601F Drain Pan Removal
Drain Pan
When reinstalling drain pan be sure drain pan is
secure and level. Failure to reinstall drain pan
properly could result in drain pan overflowing.
