Sub-Zero 632/F User Manual

Component Access / Removal
600 Series
(Prior to #1810000)
7-35
#3756270 - Revision B - January, 2006
DRAIN PAN AREA
Water Valve (Models 611, 632, 642, 650)
This section covers the Models 611, 632, 642 and 650,
explaining how to access and remove the water valve
from the drain pan area.
NOTE: To avoid water damage, shut off water supply to
unit before attempting to remove water valve.
The water valve is mounted to a bracket at the left hand
side of the drain pan area. To access and remove the
water valve, first remove the kickplate. Now, loosen the
mounting screw which secures the valve to the bracket,
and push the valve up until the screw head aligns with
the larger section of the keyhole slot. Push valve back
until the screw head clears the hole, then pull forward.
Then, disconnect the water inlet compression fitting
from valve. Disconnect the electrical leads from the
solenoid, and the plastic water line from the valve out-
let. (See Figure 7-66)

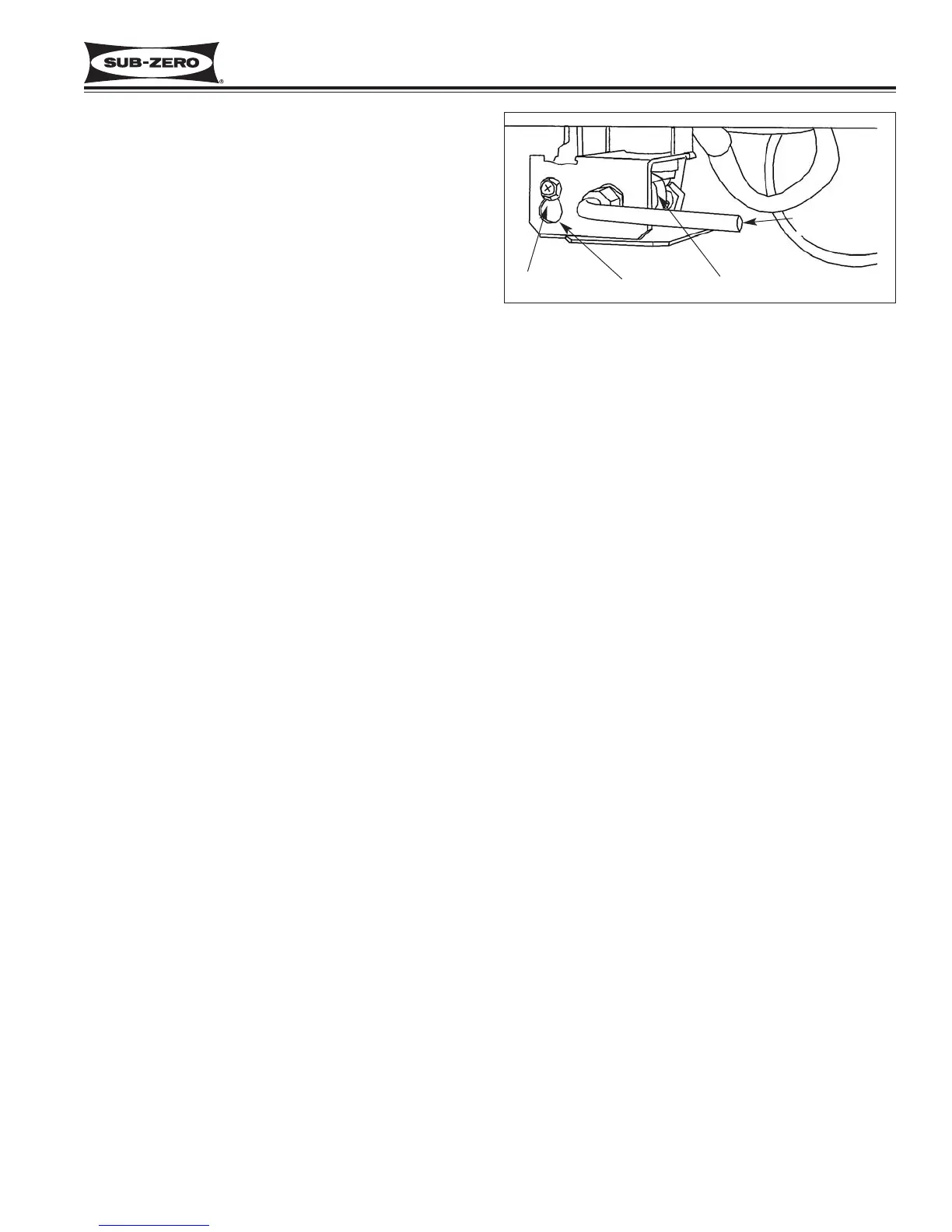

Figure 7-66. Model 611, 632, 642, 650, 690 Water Valve
Removal
Screw
Keyhole Slot
Water Inlet
Water Valve
