Suzuki GSX650F User Manual

Engine General Information and Diagnosis: 1A-116
Active Control Inspection
NOTE
Cooling fan relay and cooling fan motor operation can be checked until the engine coolant
temperature is less than 100 °C (212 °F) after starting the engine.
1) Set up the SDS tool. Refer to “SDS operation manual” for further details.
2) Start the engine and run it idling condition.

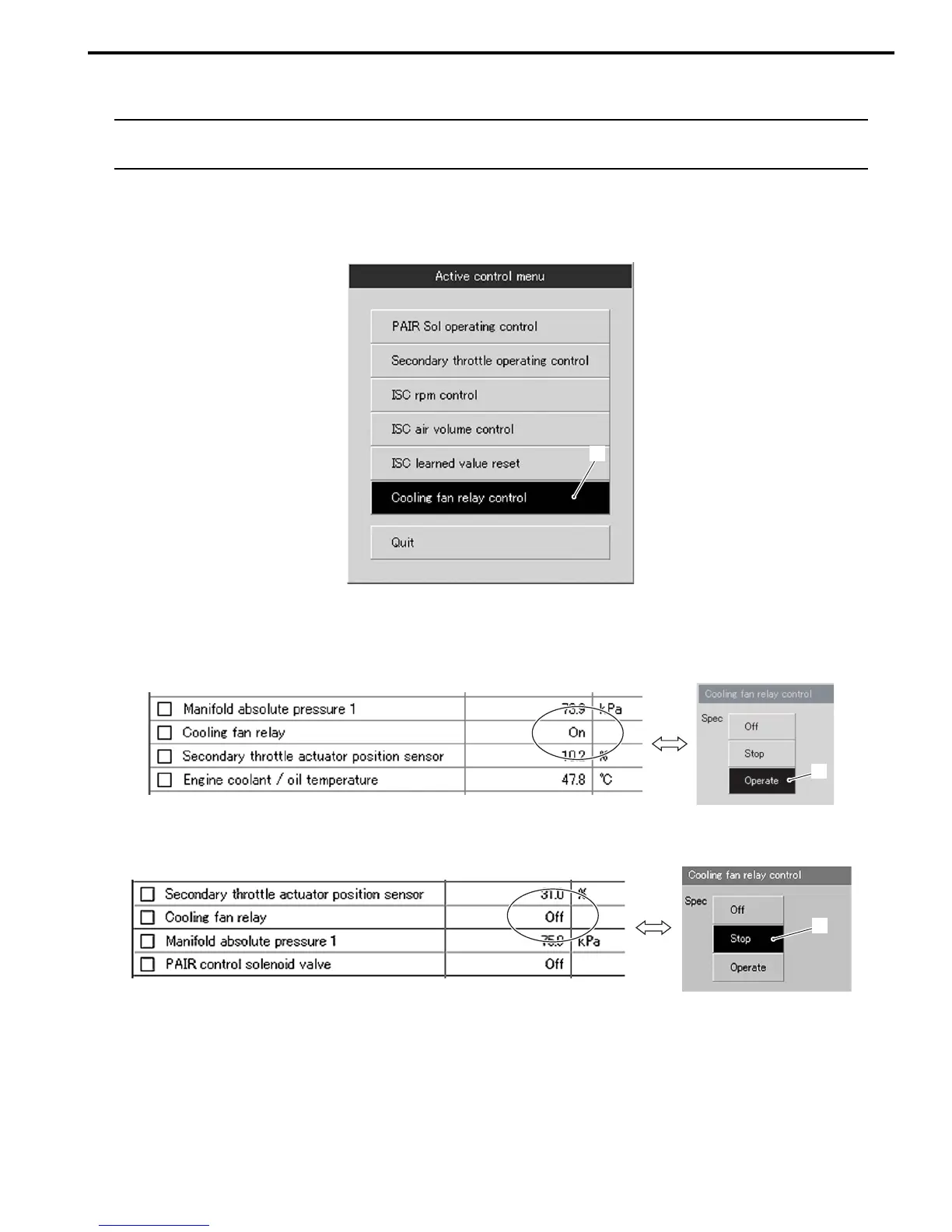

3) Click “Cooling fan relay control” (1).
4) Click the operate button (2).
At this time, if an operation sound is heard from the cooling fan relay and cooling fan motor is operated, the
function is normal.
5) Click the stop button (3) to check the operation properly.
1
I718H1110244-01
2
I718H1110237-02
3
I718H1110138-02

Suzuki GSX650F Specifications

General

Engine Type	4-stroke, 4-cylinder, liquid-cooled, DOHC
Displacement	656cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Disc, twin
Rear Brakes	Disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm (83.9 in)
Wheelbase	1, 470 mm (57.9 in)
Overall Width	760 mm
Ground Clearance	135 mm
Curb Weight	241 kg
