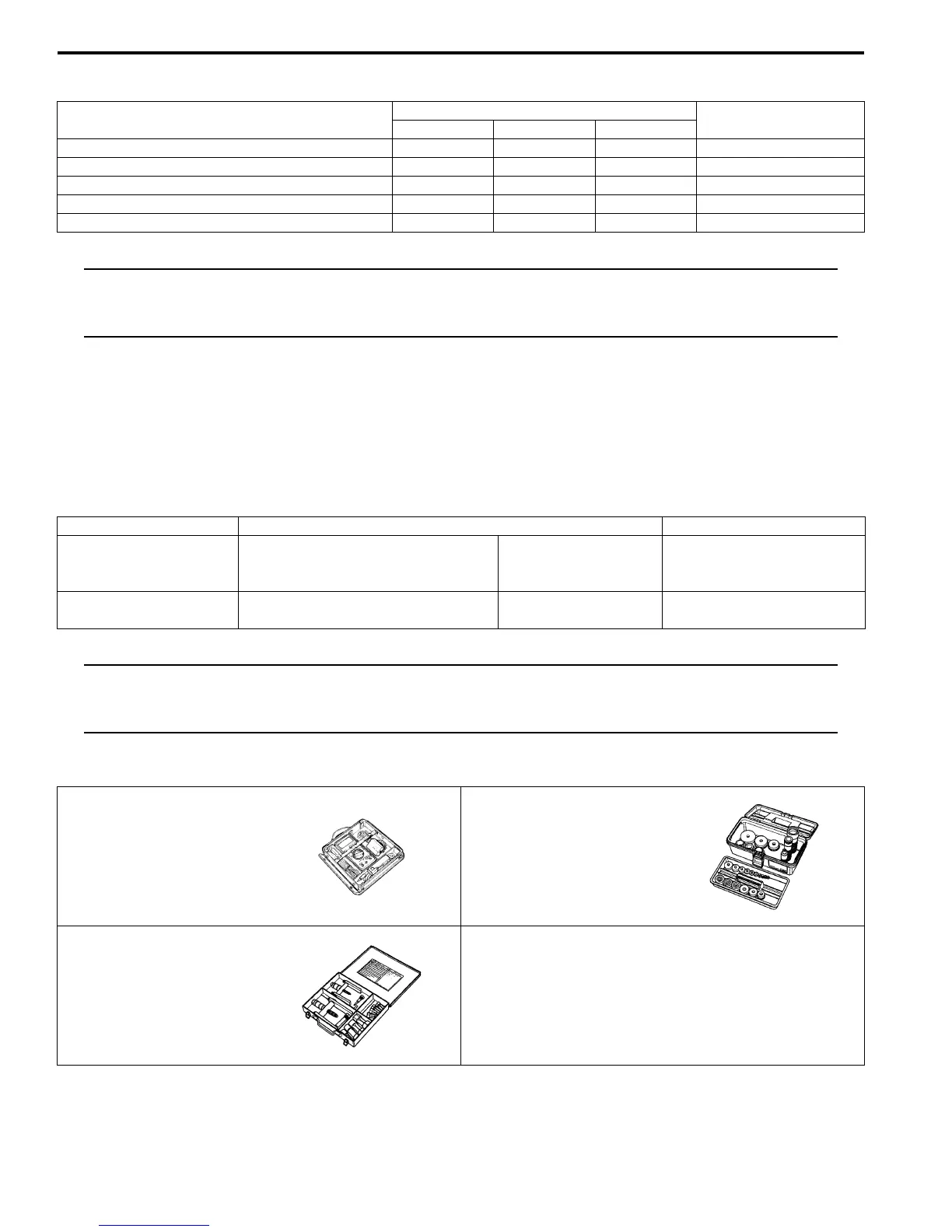

1F-18 Engine Cooling System:
Tightening Torque Specifications
B817H21607002
NOTE
The specified tightening torque is also described in the following.
“Water pump Components (Page 1F-11)”
“Water Pump Construction (Page 1F-12)”
Reference:
For the tightening torque of fastener not specified in this section, refer to “Tightening Torque List in Section 0C
(Page 0C-7)”.
Special Tools and Equipment
Recommended Service Material
B817H21608001
NOTE
Required service material is also described in the following.
“Water pump Components (Page 1F-11)”
“Water Pump Construction (Page 1F-12)”
Special Tool
B817H21608002
Fastening part
Tightening torque
Note
N⋅mkgf-mlbf-ft
Thermostat connector bolt 10 1.0 7.0 )(Page 1F-10)
Water pump mounting bolt 10 1.0 7.0 )(Page 1F-13)
Impeller securing bolt 8 0.8 6.0 )(Page 1F-15)
Water pump case screw 6 0.6 4.5 )(Page 1F-16)
Water pump air vent bolt 13 1.3 9.5 )(Page 1F-16)
Material SUZUKI recommended product or Specification Note
Grease SUZUKI SUPER GREASE A or
equivalent
P/No.: 99000–25010 )(Page 1F-12) /
)(Page 1F-14) /
)(Page 1F-15)
Thread lock cement THREAD LOCK CEMENT SUPER
1322 or equivalent
P/No.: 99000–32110 )(Page 1F-8)
09900–25008 09913–70210
Multi-circuit tester set Bearing installer set
)(Page 1F-9) )(Page 1F-14)
09921–20240
Bearing remover set
)(Page 1F-14)
