Rear Suspension: 2C-6

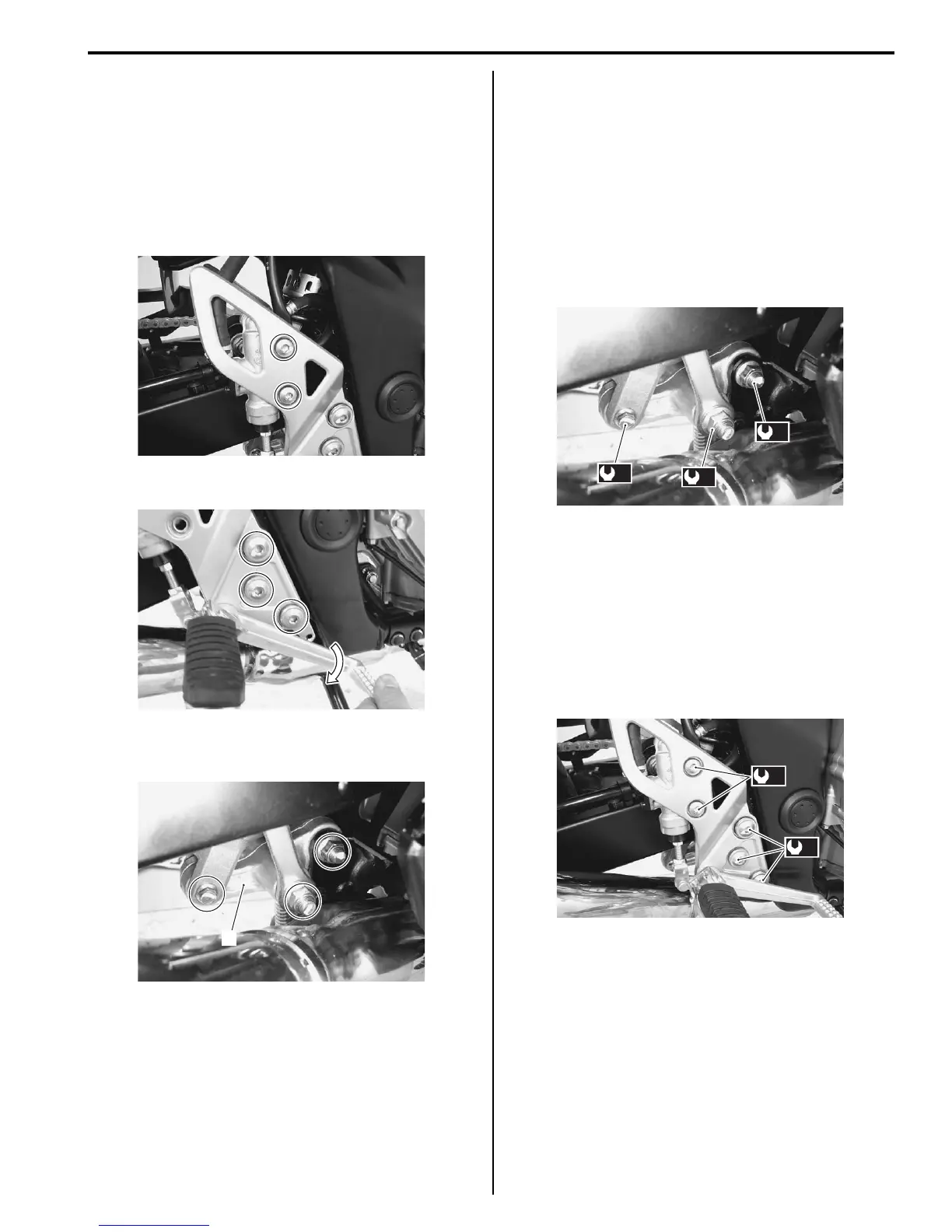

Cushion Lever Removal and Installation
B817H22306008
Removal
1) Place the motorcycle on the center stand and
support the motorcycle with a jack to be no load for
the cushion lever.
2) Remove the rear brake master cylinder mounting
bolts.
3) Remove the front footrest bracket mounting bolts.
4) Remove the cushion lever (1) by removing its related
bolts and nuts.
Installation
Install the cushion lever in the reverse order of removal.
Pay attention to the following point:
• Tighten each nut to the specified torque.
Tightening torque
Cushion lever mounting nut (a): 78 N·m (7.8 kgf-
m, 56.5 lbf-ft)
Cushion rod mounting nut (b): 78 N·m (7.8 kgf-m,
56.5 lbf-ft)
Rear shock absorber mounting nut (c): 50 N·m (
5.0 kgf-m, 36.0 lbf-ft)
• Tighten the front footrest bracket mounting bolts.
Tightening torque
Front footrest bracket mounting bolts (d): 35 N·m
(3.5 kgf-m, 25.5 lbf-ft)
• Tighten the rear brake master cylinder mounting bolts.
Tightening torque
Rear brake master cylinder mounting bolts (e): 23
N·m (2.3 kgf-m, 16.5 lbf-ft)
I717H1230013-01
I717H1230014-02
1
I717H1230015-01
(a)
(b)
(c)
I717H1230016-01
(e)
(d)
I717H1230017-01
To Next Page
