Suzuki GSX650F User Manual

Engine Electrical Devices: 1C-1
Engine
Engine Electrical Devices
Precautions
Precautions for Engine Electrical Device
B817H21300001
Refer to “General Precautions in Section 00 (Page 00-1)” and “Precautions for Electrical Circuit Service in Section 00
(Page 00-2)”.
Component Location
Engine Electrical components Location
B817H21303001
Refer to “Electrical Components Location in Section 0A (Page 0A-10)”.
Diagnostic Information and Procedures
Engine Symptom Diagnosis
B817H21304001
Refer to “Engine Symptom Diagnosis in Section 1A (Page 1A-9)”.
Repair Instructions
ECM Removal and Installation
B817H21306001
Removal
1) Remove the seat. Refer to “Exterior Parts Removal
and Installation (GSF650/S/A/SAK7) in Section 9D
(Page 9D-6)”.
2) Remove the battery (–) lead wire. Refer to “Battery
Removal and Installation in Section 1J (Page 1J-
12)”.

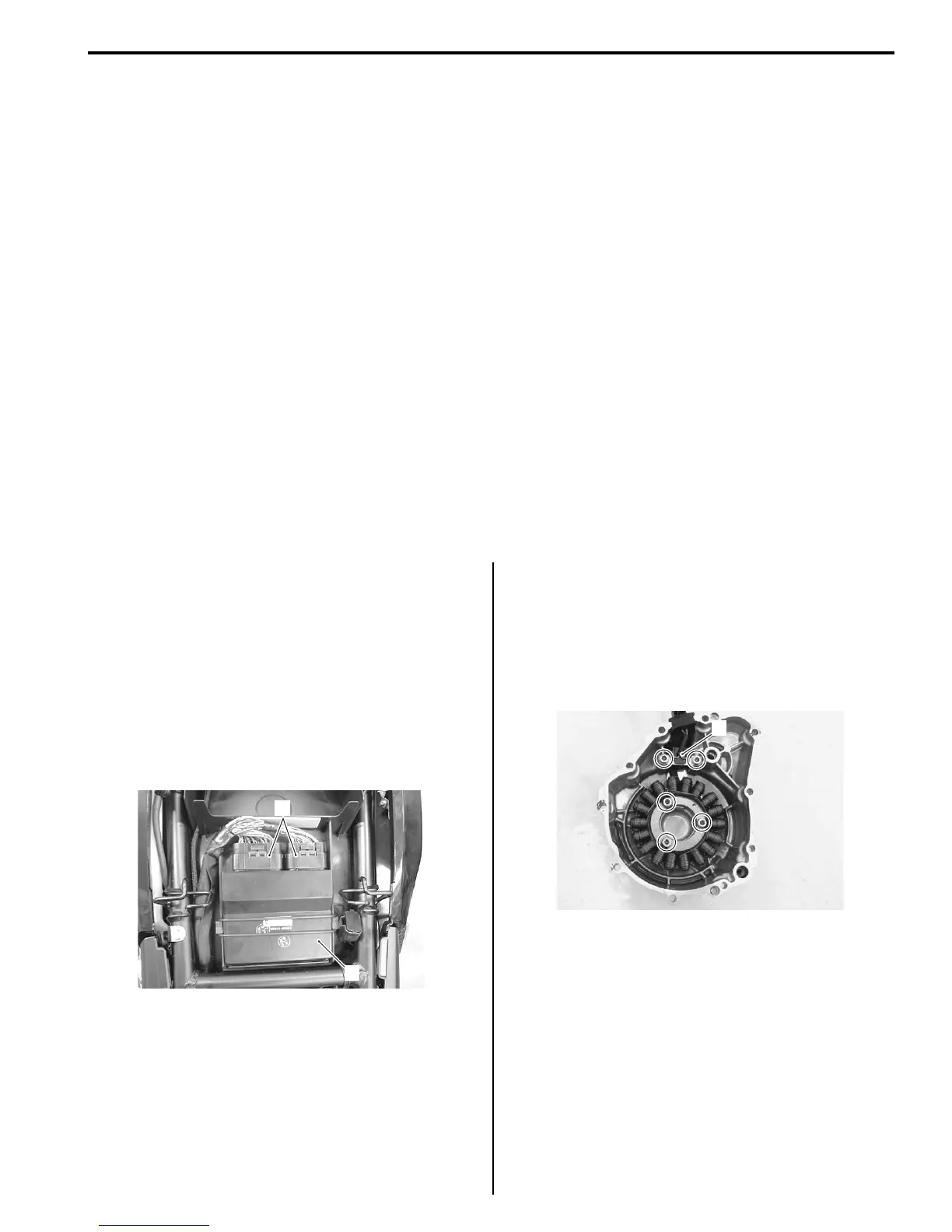

3) Disconnect the ECM couplers (1) and remove the
ECM (2).
Installation
Install the ECM in the reverse order of removal.
CKP Sensor Inspection
B817H21306002
Refer to “DTC “C12” (P0335): CKP Sensor Circuit
Malfunction in Section 1A (Page 1A-27)”.
CKP Sensor Removal and Installation
B817H21306003
Removal
1) Remove the generator cover. Refer to “Generator
Removal and Installation in Section 1J (Page 1J-4)”.
2) Remove the CKP sensor (1) along with generator
starter.
Installation
Install the CKP sensor in the reverse order of removal.
Refer to “Generator Removal and Installation in Section
1J (Page 1J-4)”.
IAP Sensor (#1) Inspection
B817H21306004
Refer to “DTC “C13” (P0105-H/L): IAP Sensor (#1)
Circuit Malfunction in Section 1A (Page 1A-30)”.
1
2
I717H1130001-04
1
I717H1130002-01

Suzuki GSX650F Specifications

General

Engine Type	4-stroke, 4-cylinder, liquid-cooled, DOHC
Displacement	656cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Disc, twin
Rear Brakes	Disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm (83.9 in)
Wheelbase	1, 470 mm (57.9 in)
Overall Width	760 mm
Ground Clearance	135 mm
Curb Weight	241 kg
