Suzuki GSX650F User Manual

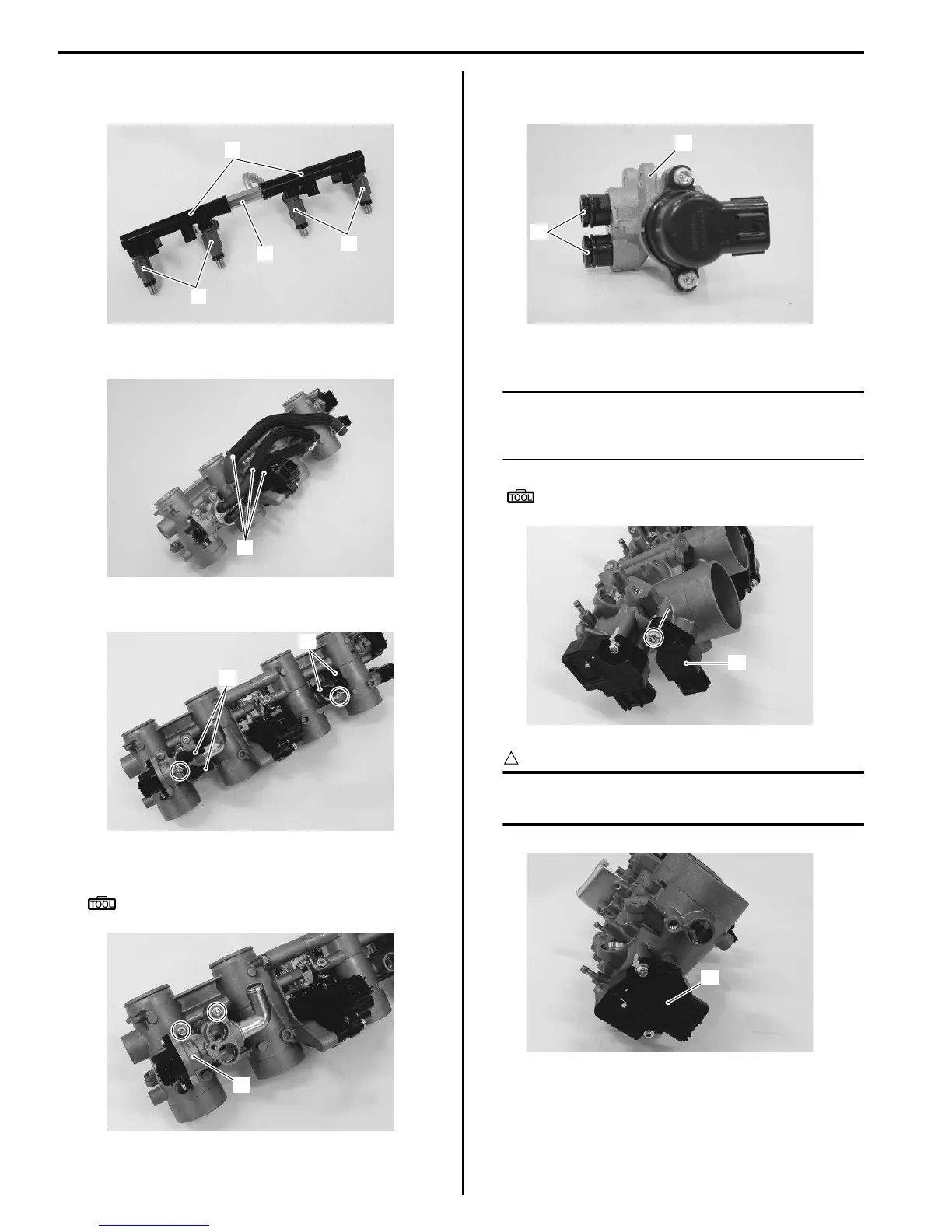

1D-12 Engine Mechanical:
4) Remove the fuel injectors (8) and fuel delivery pipes
(9) from the T-joint (7).
5) Disconnect the ISC valve hoses (9).
6) Remove the plats and joint pipes (10).
7) Remove the ISC valve assembly (11).
Special tool
: 09930–11950 (Torx wrench)
8) Remove the joint pipes (12) from the ISC valve
assembly (11).
9) Remove the STP sensor (13).
NOTE
Prior to disassembly, mark sensor’s original
position with a paint or scribe for accurate
reinstallation.
Special tool
: 09930–11950 (Torx wrench)
CAUTION
!
Never remove the IAP/TP/IAT sensor (14)
from the throttle body.
8
9
8
7
I718H1140323-02
9
I717H1140026-01
10
10
I718H1140329-01
11
I718H1140330-02
11
12
I717H1140208-01
13
I718H1140327-02
14
I718H1140331-02

Suzuki GSX650F Specifications

General

Engine Type	4-stroke, 4-cylinder, liquid-cooled, DOHC
Displacement	656cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Disc, twin
Rear Brakes	Disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm (83.9 in)
Wheelbase	1, 470 mm (57.9 in)
Overall Width	760 mm
Ground Clearance	135 mm
Curb Weight	241 kg
