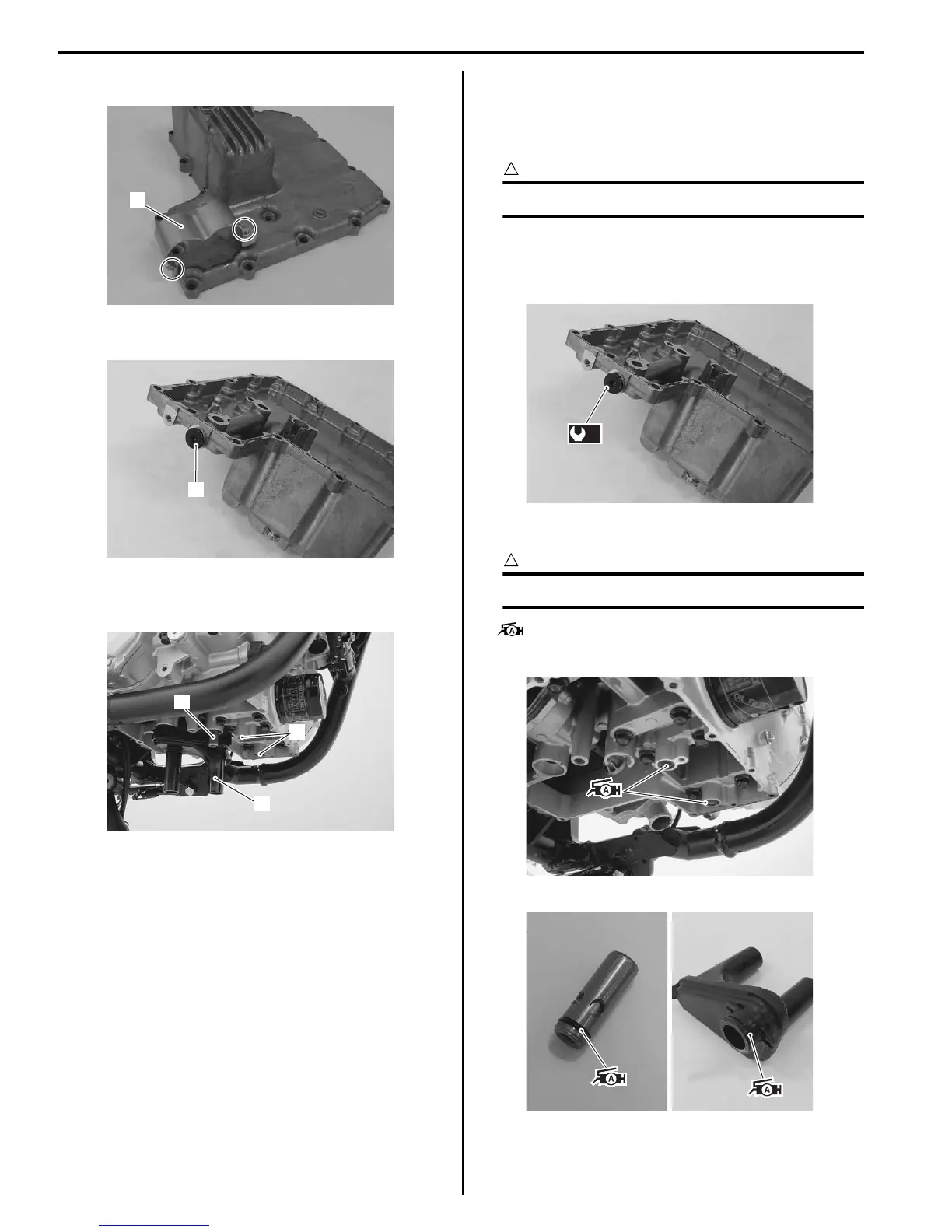

1E-5 Engine Lubrication System:
6) Remove the hose clamp plate (5) from the oil pan.
7) Remove the oil gallery plug (6) from the oil pan.
8) Remove the O-rings (7), oil pressure regulator (8)
and oil strainer (9).
Installation
Installation is in the reverse order of removal.
Pay attention to the following points:
• Tighten the oil gallery plug to specified torque.
CAUTION
!
Use a new gasket to prevent oil leakage.
Tightening torque
Oil gallery plug (M12) (a): 15 N·m (1.5 kgf-m, 11.0
lbf-ft)
• Apply GREASE to the O-rings and install them.
CAUTION
!
Use new O-rings to prevent oil leakage.
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
5
I718H1150064-01
6
I718H1150024-02
7
8
9
I717H1150007-01
(a)
I718H1150026-01
I717H1150009-01
I718H1150028-01
