Suzuki GSX650F User Manual

1E-11 Engine Lubrication System:

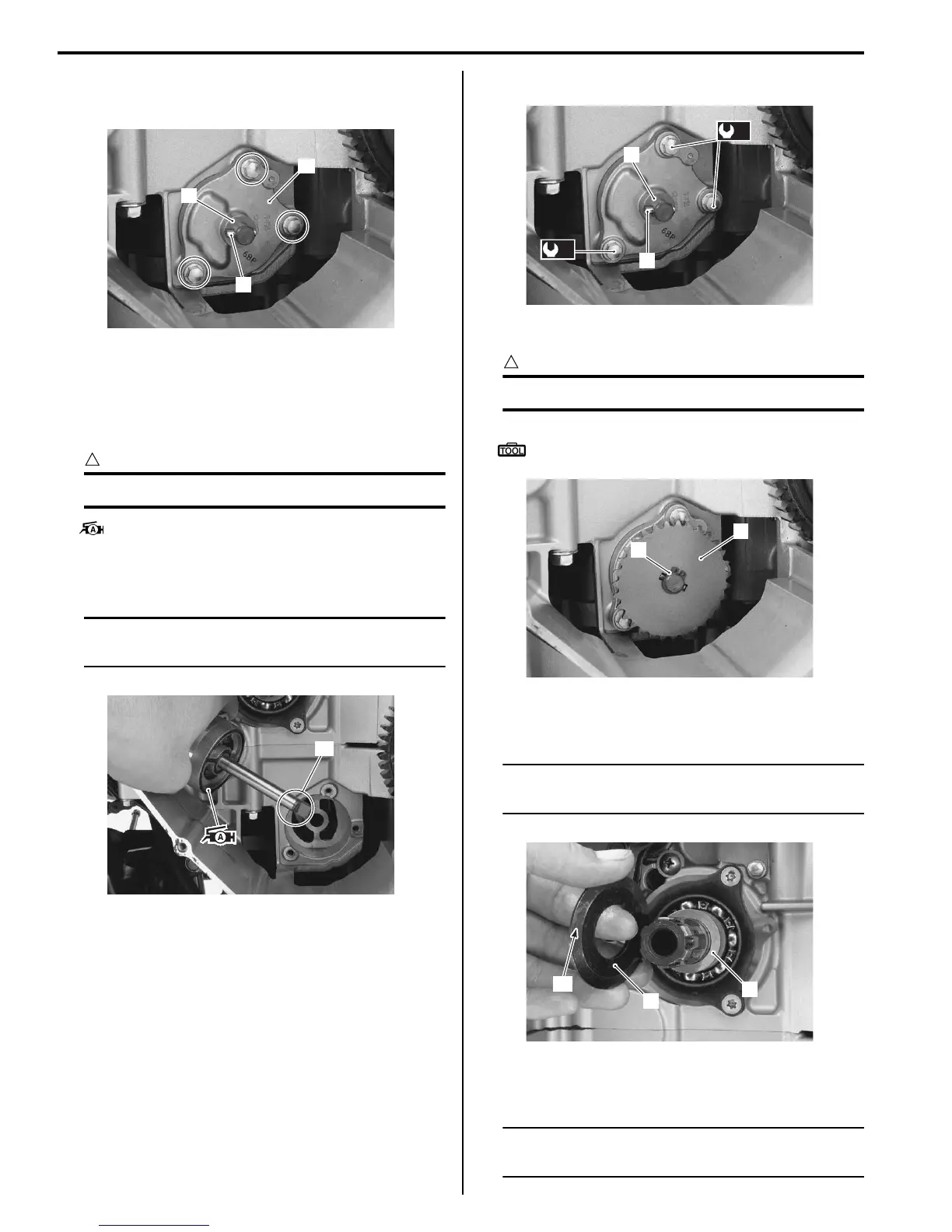

7) Remove the pin (8) and washer (9).
8) Remove the oil pump (10).
Installation
Installation is in reverse order of removal.
Pay attention to the following points:
• Apply GREASE to the O-ring.
CAUTION
!
Use a new O-ring to prevent oil leakage.
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
• Install the oil pump.
NOTE
Set the oil pump shaft end “A” to the water
pump shaft.
• Install the oil pump with the oil pump mounting bolt
and then tighten them to the specified torque.
Tightening torque
Oil pump mounting bolt (a): 10 N·m (1.0 kgf-m,
7.0 lbf-ft)
• Install the washer (1) and pin (2).
• Install the oil pump driven gear (3) and snap ring (4).
CAUTION
!
Never reuse a snap ring.
Special tool
: 09900–06107 (Snap ring pliers)
• Install the washer (5) and thrust washer (6) onto the
countershaft.
NOTE
The chamfer side “B” of thrust washer faces
inside.
• Install the oil pump drive sprocket (7) to the
countershaft.
NOTE
Teeth “C” on the sprocket must face the
clutch side.
8
9
10
I718H1150057-01
“A”
I718H1150058-01
1
(a)
2
(a)
I718H1150059-01
3
4
I718H1150060-01
5
6
“B”
I718H1150061-01

Suzuki GSX650F Specifications

General

Engine Type	4-stroke, 4-cylinder, liquid-cooled, DOHC
Displacement	656cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Disc, twin
Rear Brakes	Disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm (83.9 in)
Wheelbase	1, 470 mm (57.9 in)
Overall Width	760 mm
Ground Clearance	135 mm
Curb Weight	241 kg
