Suzuki GSX650F User Manual

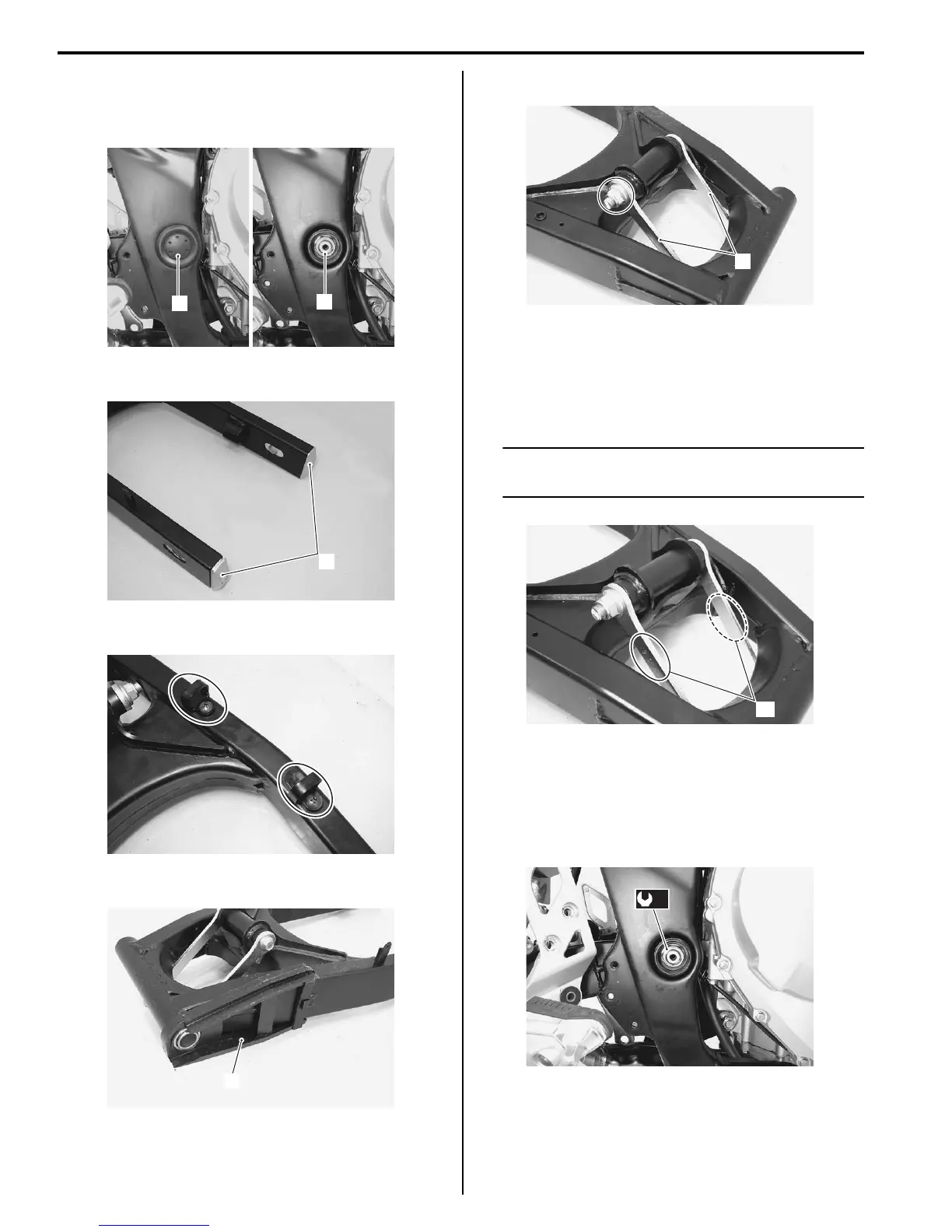

2C-9 Rear Suspension:
5) Remove the pivot shaft end caps (4), left and right.
6) Remove the swingarm by removing the pivot shaft
and nut (5) and washer.
7) Remove the chain adjusters (6).
8) Remove the brake hose clamps.
9) Remove the chain buffer (7).
10) Remove the cushion rods (8).
Installation
Install the swingarm in the reverse order of removal. Pay
attention to the following points:
• Temporarily the cushion rod mounting nut.
NOTE
The stamped marks “A” on the cushion rod
should be face out side.
• Install the washer and swingarm pivot nut.
• Tighten the swingarm pivot nut to the specified torque.
Tightening torque
Swingarm pivot nut (a): 100 N·m (10.0 kgf-m, 72.5
lbf-ft)
5
4
I717H1230021-01
6
I717H1230022-02
I717H1230023-01
7
I717H1230024-01
8
I717H1230025-01
“A”
I717H1230026-01
(a)
I717H1230027-01

Suzuki GSX650F Specifications

General

Engine Type	4-stroke, 4-cylinder, liquid-cooled, DOHC
Displacement	656cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Disc, twin
Rear Brakes	Disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm (83.9 in)
Wheelbase	1, 470 mm (57.9 in)
Overall Width	760 mm
Ground Clearance	135 mm
Curb Weight	241 kg
