Suzuki GSX650F User Manual

2D-5 Wheels and Tires:

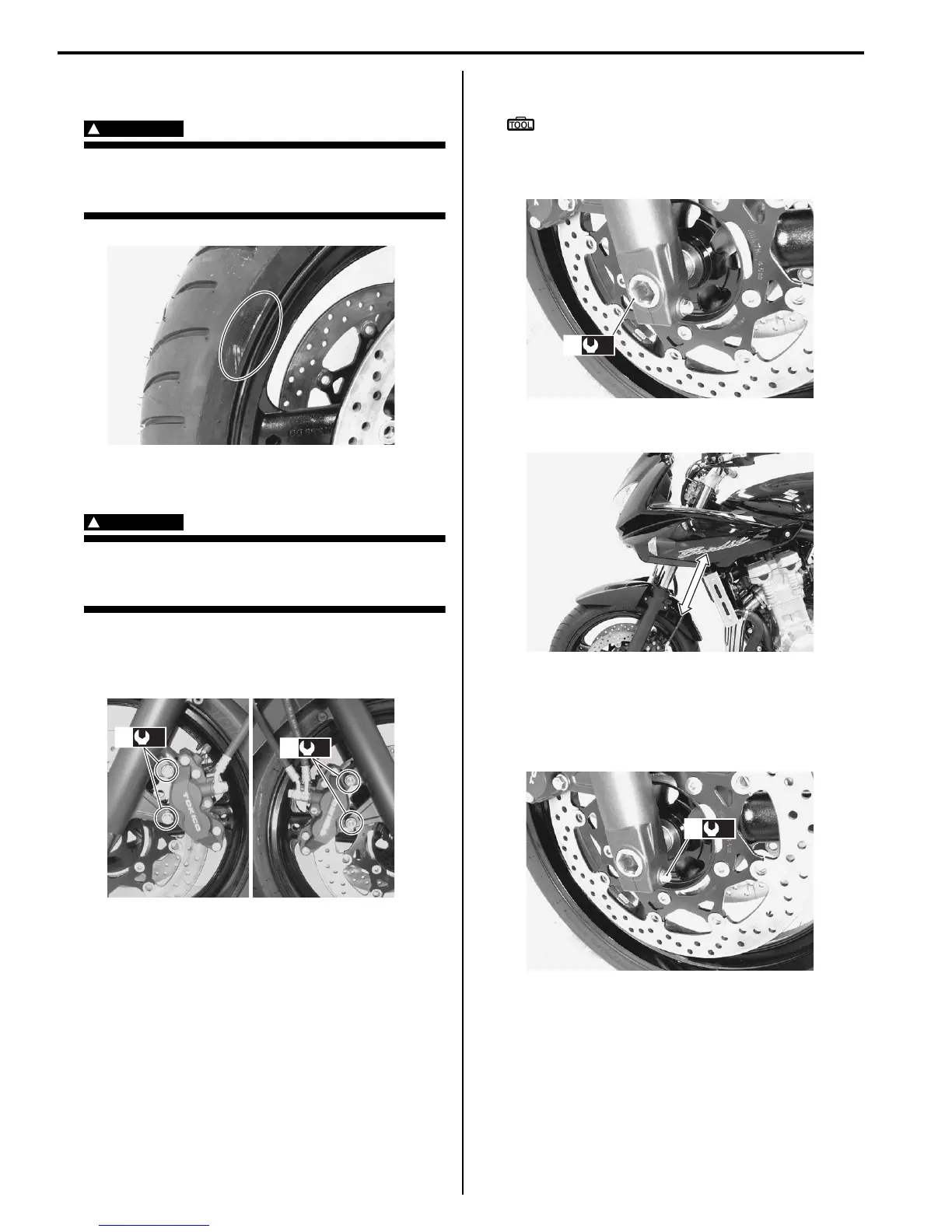

2) Install the front wheel with the front axle and tighten
the front axle temporarily.
WARNING
!
The directional arrow on the tire should point
to the wheel rotation, when remounting the
wheel.
3) Tighten the brake caliper mounting bolts (1) to the
specified torque.
WARNING
!
After remounting the brake calipers, pump
the brake lever until the pistons push the pad
correctly.
Tightening torque
Front brake caliper mounting bolt (a): 23 N·m (
2.3 kgf-m, 16.5 lbf-ft)
4) Tighten the front axle (2) to the specified torque.
Special tool
: 09944–28320 (Hexagon socket (19 mm))
Tightening torque
Front axle (b): 100 N·m (10.0 kgf-m, 72.5 lbf-ft)
5) Move the front fork up and down 4 or 5 times.
6) Tighten axle pinch bolt (3) to the specified torque.
Tightening torque
Front axle pinch bolt (c): 23 N·m (2.3 kgf-m, 16.5
lbf-ft)
I717H1240008-01
(a)
1
(a)
1
I717H1240009-01
(b)
2
I717H1240010-01
I717H1240011-01
(c)
3
I717H1240013-01

Suzuki GSX650F Specifications

General

Engine Type	4-stroke, 4-cylinder, liquid-cooled, DOHC
Displacement	656cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Disc, twin
Rear Brakes	Disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm (83.9 in)
Wheelbase	1, 470 mm (57.9 in)
Overall Width	760 mm
Ground Clearance	135 mm
Curb Weight	241 kg
