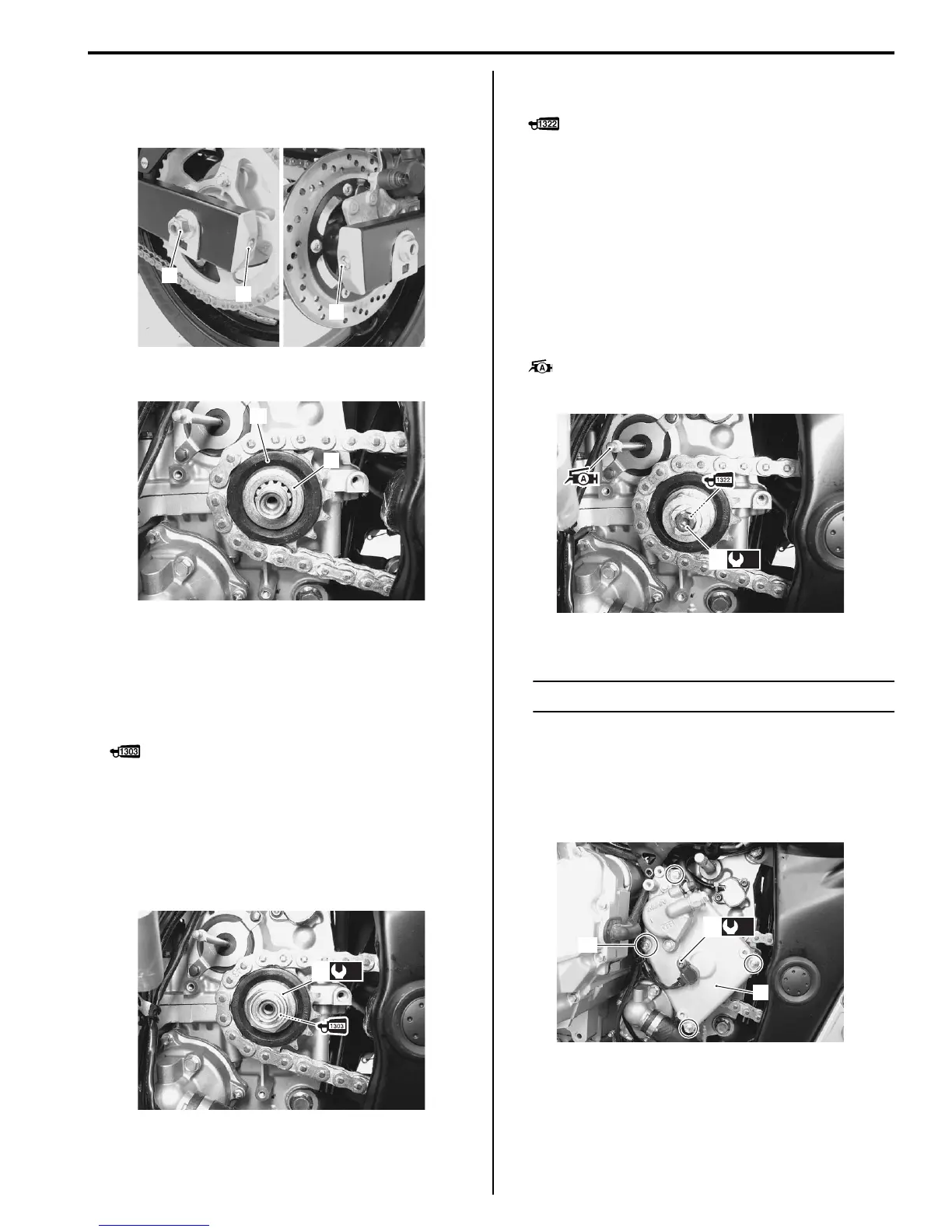

Drive Chain / Drive Train / Drive Shaft: 3A-3
9) Loosen the rear axle nut (7) .
10) Loosen the chain adjuster bolts (8) to provide
additional chain slack, left and right.
11) Remove the spacer (9) engine sprocket (10).
Installation
Install the engine sprocket in the reverse order of
removal. Pay attention to the following points:
• Install the spacer and engine sprocket.
• Apply Thread lock super to the driveshaft.
: Thread lock cement 99000–32030 (Thread
Lock Cement Super 1303 or equivalent)
• Tighten the engine sprocket nut (1) to the specified
torque.
Tightening torque
Engine sprocket nut (a): 115 N·m (11.5 kgf-m, 83.0
lbf-ft)
• Apply a small quantity of Thread lock to the speed
sensor rotor bolt (2).
: Thread lock cement 99000–32110
(THREAD LOCK CEMENT SUPER 1322 or
equivalent)
• Tighten the speed sensor rotor bolt (2) to the specified
torque.
Tightening torque
Speed sensor rotor bolt (b): 25 N·m (2.5 kgf-m,
18.0 lbf-ft)
• Before installing the engine sprocket inner cover,
apply a small quantity of suzuki super grease to the
clutch push rod.
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
• Install the engine sprocket inner cover (3).
NOTE
Fit the clamp to the bolt “A”.
• Tighten the speed sensor mounting bolt (4) to the
special torque.
Tightening torque
Speed sensor mounting bolt (c): 6.5 N·m (0.65
kgf-m, 4.7 lbf-ft)
7
8
8
I717H1310008-01
9
10
I717H1310009-01
(a)
1
I717H1310010-01
(b)
2
I717H1310011-02
3
“A”
(c)
4
I717H1310012-01
