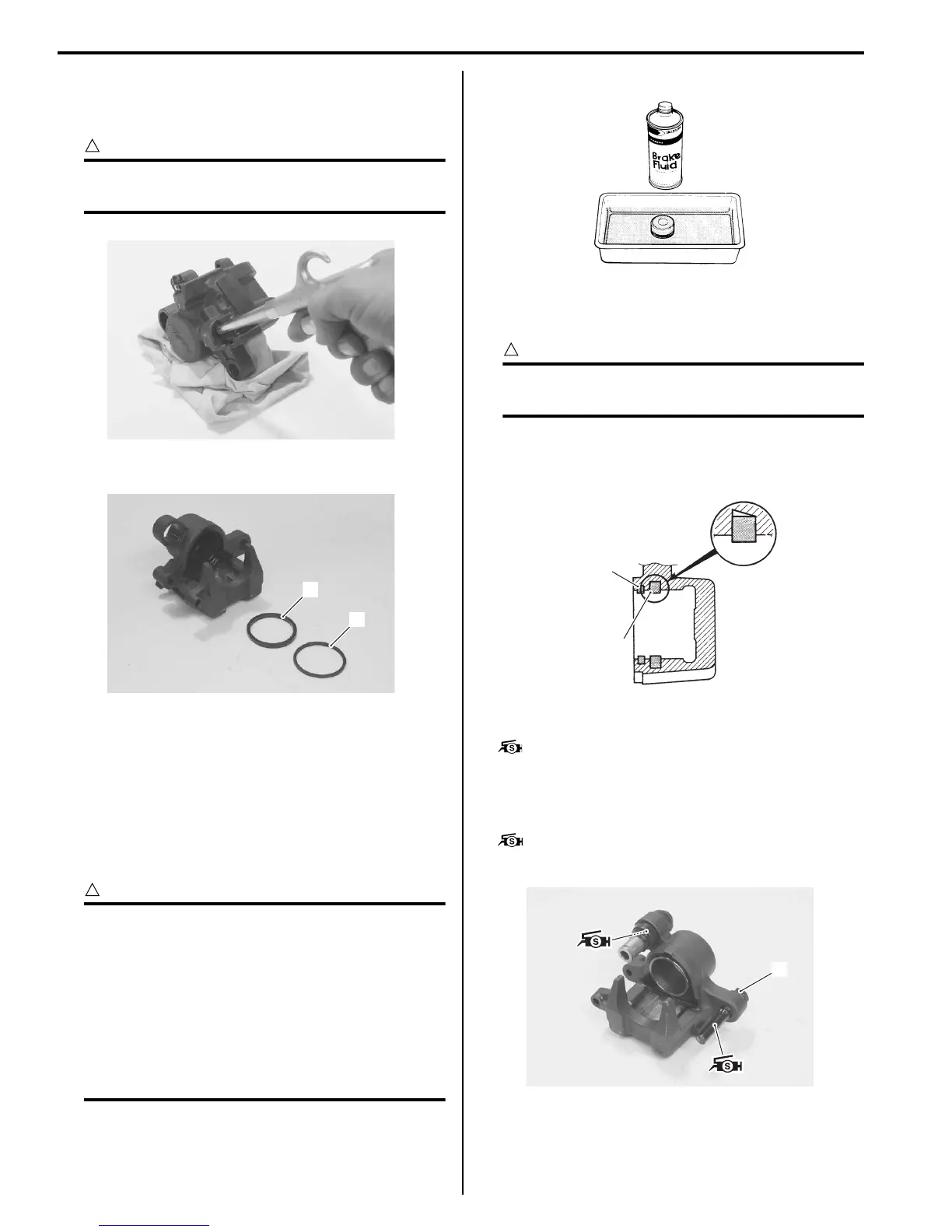

4C-5 Rear Brakes:
5) Place a rag over the piston to prevent it from popping
out and then force out the piston using compressed
air.
CAUTION
!
Do not use high pressure air to prevent
piston damage.
6) Remove the dust seal (7) and piston seal (8).
Assembly
Assemble the caliper in the reverse order of
disassembly. Pay attention to the following points:
• Wash the caliper bore and piston with specified brake
fluid. Particularly wash the dust seal groove and
piston seal groove.
BF: Brake fluid (DOT 4)
CAUTION
!
• Wash the caliper components with fresh
brake fluid before reassembly. Never use
cleaning solvent or gasoline to wash them.
• Do not wipe the brake fluid off after
washing the components.
• When washing the components, use the
specified brake fluid. Never use different
types of fluid or cleaning solvent such as
gasoline, kerosine or the others.
• Apply the brake fluid to piston seal (1) and dust seal
(2).
CAUTION
!
Replace the piston seal (1) and dust seal (2)
with new ones.
BF: Brake fluid (DOT 4)
• Install the piston seals as shown.
• Apply grease to the inside of the boot.
: Grease 99000–25100 (SUZUKI Silicone
Grease or equivalent)
• Temporarily tighten the sliding pin (3) and apply
grease to the sliding pin.
: Grease 99000–25100 (SUZUKI Silicone
Grease or equivalent)
I649G1430016-02
7
8
I649G1430017-02
I649G1430018-02
1
2
I649G1420013-02
3
I717H1430012-01

Suzuki GSX650F Specifications

General

Engine Type	4-stroke, 4-cylinder, liquid-cooled, DOHC
Displacement	656cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Disc, twin
Rear Brakes	Disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm (83.9 in)
Wheelbase	1, 470 mm (57.9 in)
Overall Width	760 mm
Ground Clearance	135 mm
Curb Weight	241 kg
