Suzuki GSX650F User Manual

4E-3 ABS:
ABS Control Unit Calculating Process
The ABS controls and its calculations, in addition to the self-diagnosing and the fail-safe processes, occur during the
ABS control unit calculating process. ABS control is performed in one cycle every 10/1 000 seconds. In addition, if a
malfunction is detected by the self-diagnosis function, the brake stops being controlled by the ABS and a diagnostic
trouble code is stored.

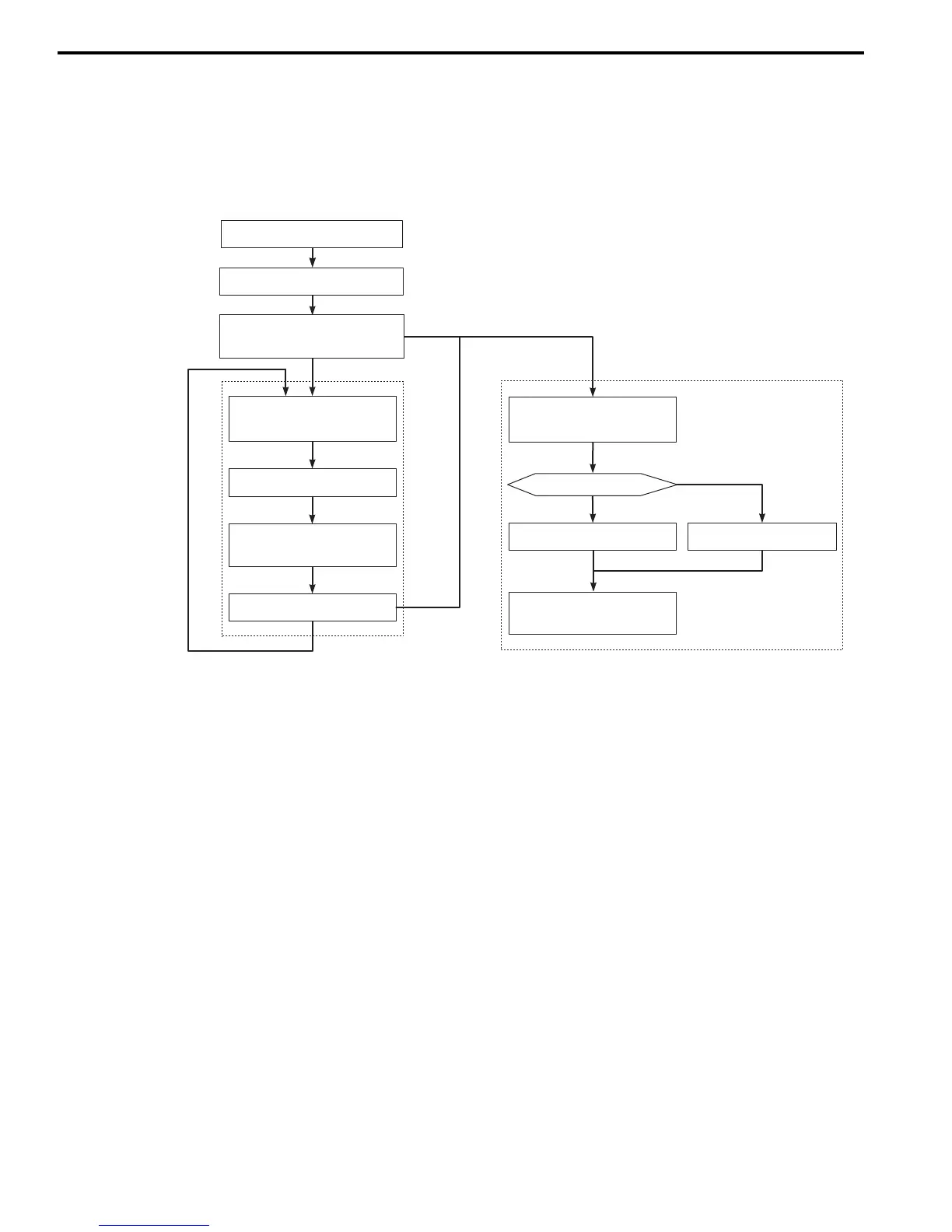

Normal calculating process
Calculating process when a malfunction occurs
Ignition switch turned to ON
ABS control unit Initialization
Self-diagnosis (while riding)
Wheel speed sensor signal
enters
ABS control calculation
Hydraulic unit control signal
output
1 cycle
10/1 000 seconds
ABS indicator light
lights up
Is ABS under control ?
Diagnostic trouble code
memorized
Malfunction
indicated
Malfunction
indicated
No malfunction
Correct
Interim ABS control
YES
NO
Prohibition of ABS control
Self-diagnosis
(during start up)
I718H1450009-02

Suzuki GSX650F Specifications

General

Engine Type	4-stroke, 4-cylinder, liquid-cooled, DOHC
Displacement	656cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Disc, twin
Rear Brakes	Disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm (83.9 in)
Wheelbase	1, 470 mm (57.9 in)
Overall Width	760 mm
Ground Clearance	135 mm
Curb Weight	241 kg
