Suzuki GSX650F User Manual

ABS: 4E-10
GSF650SA/ASU

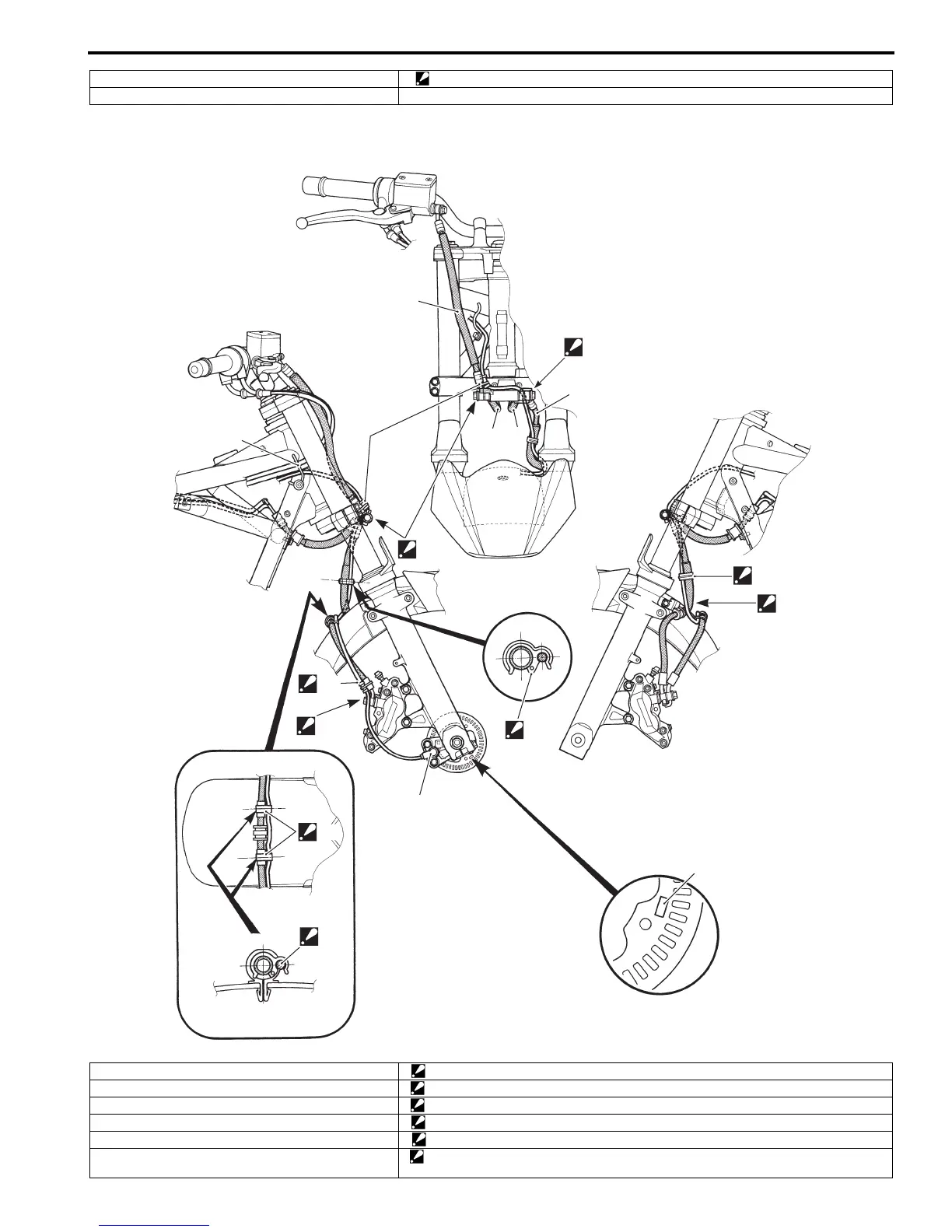

8. Front wheel speed sensor “I”: Clamp the sensor lead wire at front side of the brake hose.
“A”: Outside mark
3
6
“B”
5
4
“C”
1
2
“E”
“F”
“I”
“G”
“H”
8
7
“A”
“D”
I717H2450007-03
1. Clamp “B”: Pass through the sensor lead wire between brake hose No.2 and brake hose No.2 (L).
2. Guide “C”: Pass through the sensor lead wire in front of the brake hose.
3. Front brake hose No.1 “D”: Pass through the sensor lead wire outside of the brake hose.
4. Front brake hose No.1 (L) “E”: Clamp the sensor lead wire sleeve with the brake hose.
5. Front brake hose No.2 “F”: Pass through the sensor lead wire outside of the brake hose union bolt.
6. Front brake hose No.2 (L) “G”: Clamp the sensor lead wire at front side of the brake hose. Make clearance from the front
fender.

Suzuki GSX650F Specifications

General

Engine Type	4-stroke, 4-cylinder, liquid-cooled, DOHC
Displacement	656cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Disc, twin
Rear Brakes	Disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm (83.9 in)
Wheelbase	1, 470 mm (57.9 in)
Overall Width	760 mm
Ground Clearance	135 mm
Curb Weight	241 kg
