ABS: 4E-24

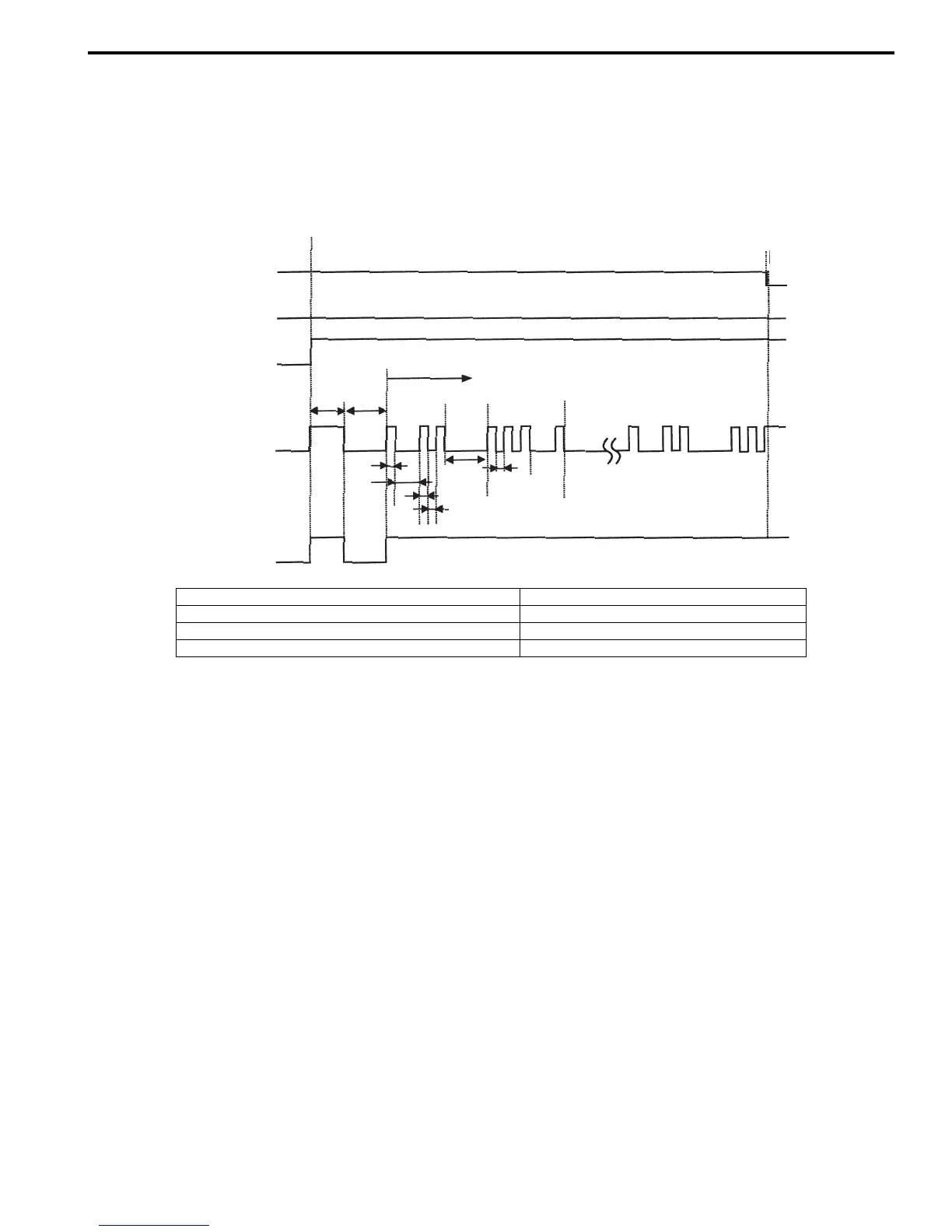

Understanding the DTC (Diagnostic Trouble Code)
A two-digit DTC is shown through the flashing pattern of the ABS indicator light. A number between 1 and 9 is
represented by the number of times that the ABS indicator light lights up in interval of 0.4 seconds and the separation
between the tens and ones are indicated by the light staying off for 1.6 seconds. In addition, the separation between
the start code and the DTC is indicated by the light being off for 3.6 seconds. After the start code is displayed, DTCs
appear from the smallest number code.
If no DTCs are memorized, the ABS indicator light keeps lighting up.
ON
OFF
ON
OFF
ON
OFF
OFF
ON
OFF
Output finish
Output start
Code 12
Code 31
ABS indicator light
(Malfunction exists)
ABS indicator light
(No malfunction exists)
Mode select switch
Brake light switch
Ignition switch
“a” “b”
“c”
“d”
“e”
“f”
“b”
“g”
I718H1450129-01
“a”: Initial minimum light ON time (About 2 seconds) “e”: Main-sub code interval (1.6 seconds)
“b”: Error code interval (About 3.6 seconds) “f”: Sub code light ON time (0.4 seconds)
“c”: Main code light ON time (0.4 seconds) “g”: Sub code light OFF time (0.4 seconds)
“d”: Main code light OFF time (0.4 seconds)

Suzuki GSX650F Specifications

General

Engine Type	4-stroke, 4-cylinder, liquid-cooled, DOHC
Displacement	656cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Disc, twin
Rear Brakes	Disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm (83.9 in)
Wheelbase	1, 470 mm (57.9 in)
Overall Width	760 mm
Ground Clearance	135 mm
Curb Weight	241 kg
