4E-43 ABS:
3 1) Inspect both wheel speed sensor rotors for damage and
check that no foreign objects are caught in the rotor
openings.
Are the rotors OK?
Go to Step 4. Clean or replace the
rotor.
4 1) Inspect the clearances of the front and rear wheel speed
sensor – sensor rotor using the thickness gauge.
Special tool
(A): 09900–20803 (Thickness gauge)
(B): 09900–20806 (Thickness gauge)
Wheel speed sensor – sensor rotor clearance
0.3 – 1.5 mm (0.012 – 0.059 in)
Front
Rear
Are the clearances OK?
Replace the ABS
control unit/HU.
Adjust the clearance.

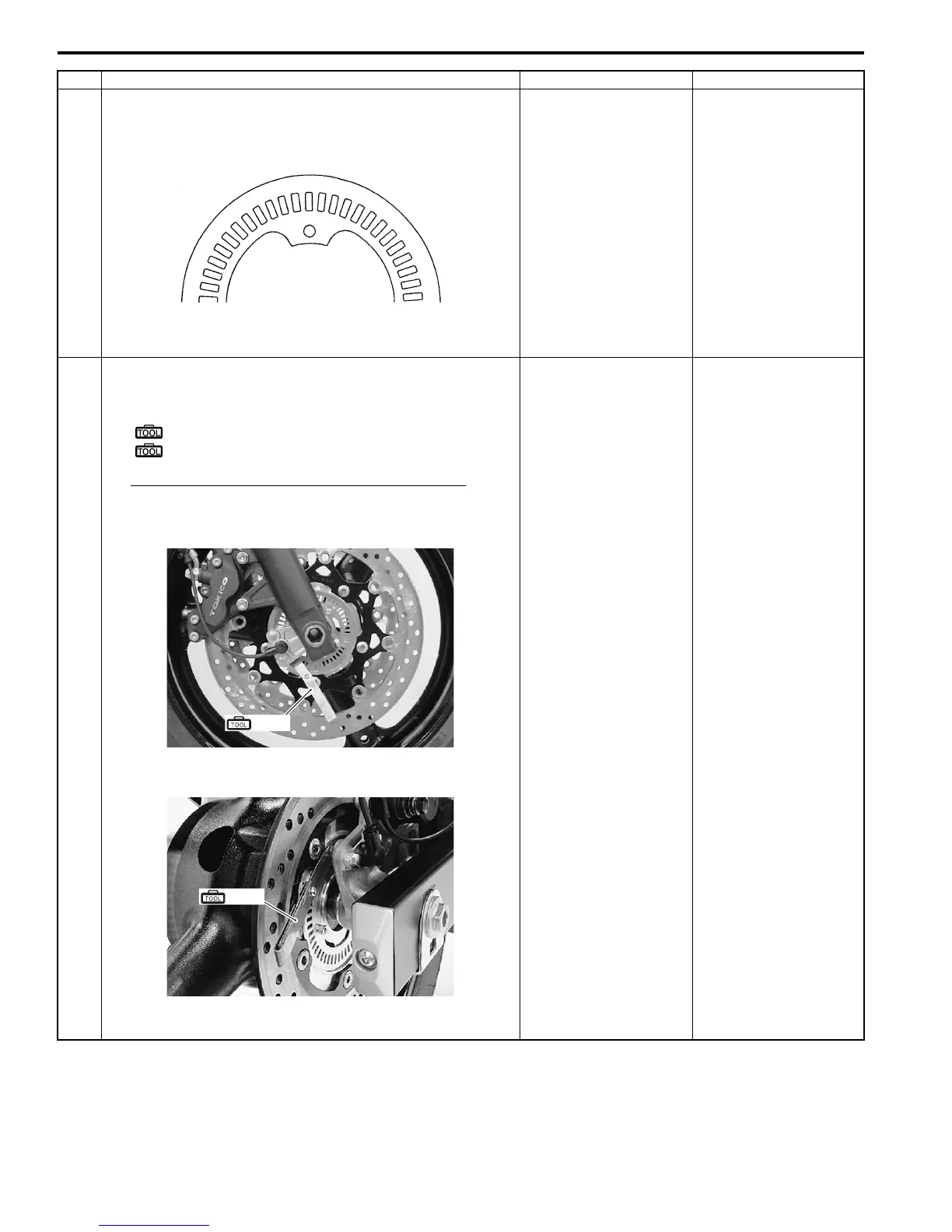

Step Action Yes No
I718H1450064-01
(A), (B)
I717H2450009-01
(A), (B)
I717H2450011-01

Suzuki GSX650F Specifications

General

Engine Type	4-stroke, 4-cylinder, liquid-cooled, DOHC
Displacement	656cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Disc, twin
Rear Brakes	Disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm (83.9 in)
Wheelbase	1, 470 mm (57.9 in)
Overall Width	760 mm
Ground Clearance	135 mm
Curb Weight	241 kg
