Suzuki GSX650F User Manual

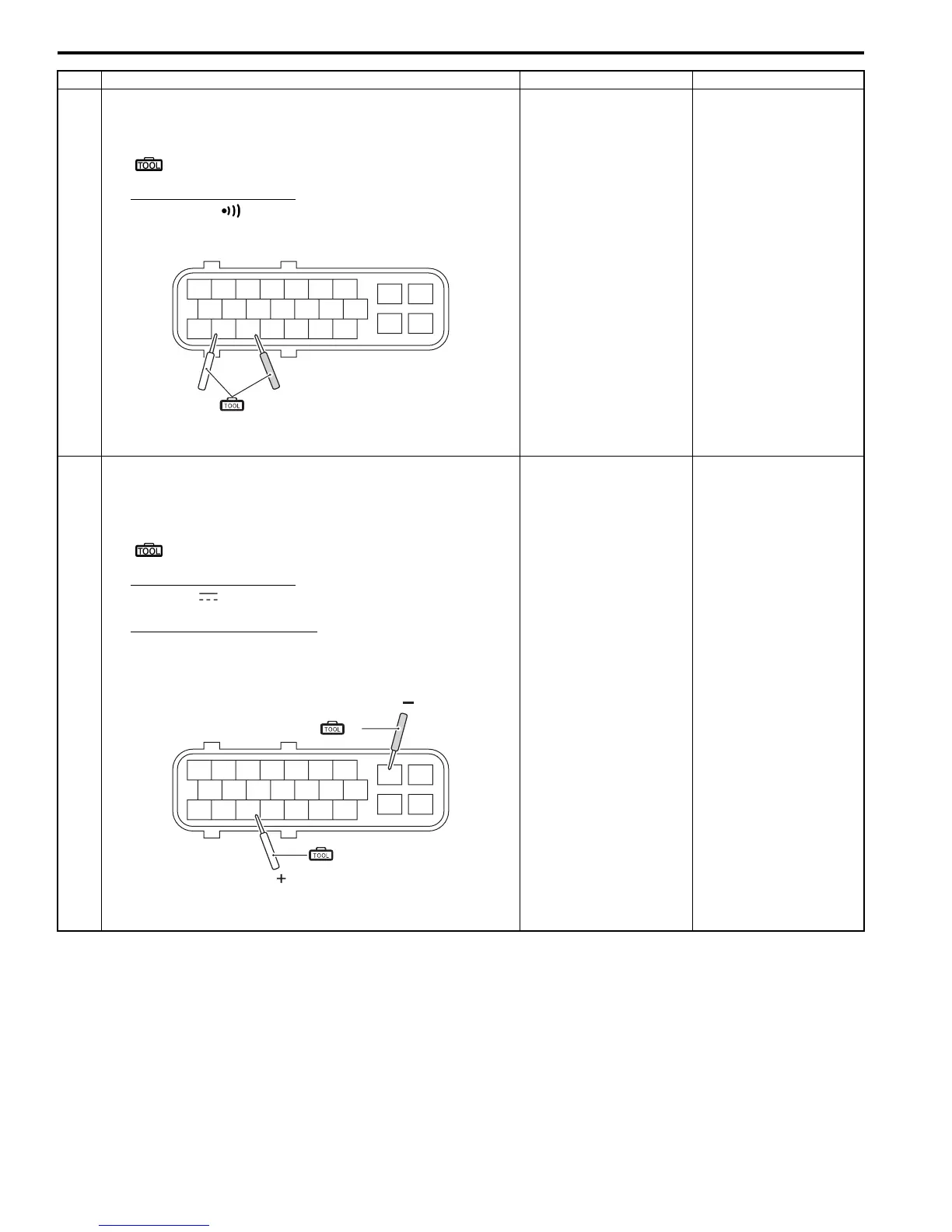

4E-53 ABS:
2 1) Check for continuity between “2” (B/Y) and “3” (W/R) at
the coupler.
Special tool
(A): 09900–25008 (Multi-circuit tester set)
Tester knob indication
Continuity ( )
ABS control unit coupler (Harness end)
Is there continuity between “2” and “3”?
• Inspect the wire
harness. (Faulty
sensor wire)
• Faulty front wheel
speed sensor
Go to Step 3.
3 1) Turn the ignition switch ON with the ABS control unit
coupler disconnected, measure the voltage between “3”
(W/R) and “24” (B/W) at the coupler.
Special tool
(A): 09900–25008 (Multi-circuit tester set)
Tester knob indication
Voltage ( )
Normal value (“3” – “24”)
0 V
ABS control unit coupler (Harness end)
Is the voltage between “3” and “24” normal value?
Replace the ABS
control unit/HU.
Inspect the wire
harness. (Faulty sensor
signal or power supply
wire)
Step Action Yes No
24 25
18
10
12 13
16
2
3
4
21
89
(A)
I718H1450086-02
24 25
(ޓ)
18
10
12 13
16
2
3
4
21
(ޓ)
89
(A)
(A)
I718H1450087-02

Suzuki GSX650F Specifications

General

Engine Type	4-stroke, 4-cylinder, liquid-cooled, DOHC
Displacement	656cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Disc, twin
Rear Brakes	Disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm (83.9 in)
Wheelbase	1, 470 mm (57.9 in)
Overall Width	760 mm
Ground Clearance	135 mm
Curb Weight	241 kg
