4E-65 ABS:
3 1) Turn the ignition switch OFF.
2) Remove the left frame cover. Refer to “Exterior Parts
Removal and Installation (GSF650/S/A/SAK7) in Section
9D (Page 9D-6)”.
3) Remove the fuse box mounting bolt. Refer to “ABS
Control Unit Coupler Disconnect and Connect (Page 4E-
69)”.
4) Check the ABS control unit coupler for loose or poor
contacts. If OK, then disconnect the ABS control unit
coupler.
5) Start the engine at 5 000 r/min with the dimmer switch
set to HI.

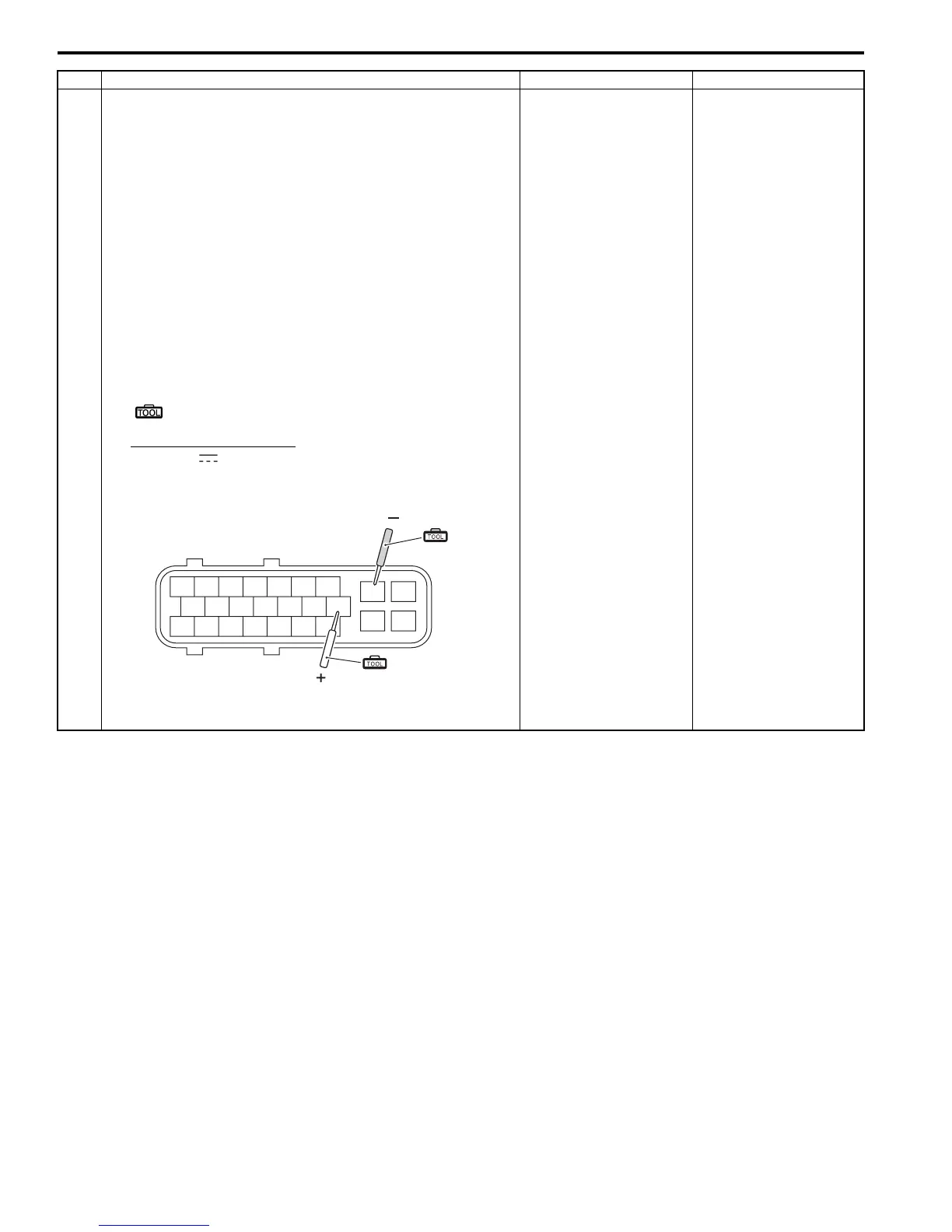

6) Measure the voltage between “16” (O/Y) and “24” (B/W)
at the coupler.
Special tool
(A): 09900–25008 (Multi-circuit tester set)
Tester knob indication
Voltage ( )
ABS control unit coupler (Harness end)
Is the voltage same as Step 2?
Replace the ABS
control unit/HU.
Inspect the wire
harness. (Faulty ignition
or ground wire)
Step Action Yes No
24 25
(ޓ)
18
10 12 13
16
2
3
4
21
(ޓ)
89
(A)
(A)
I718H1450036-04

Suzuki GSX650F Specifications

General

Engine Type	4-stroke, 4-cylinder, liquid-cooled, DOHC
Displacement	656cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Disc, twin
Rear Brakes	Disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm (83.9 in)
Wheelbase	1, 470 mm (57.9 in)
Overall Width	760 mm
Ground Clearance	135 mm
Curb Weight	241 kg
