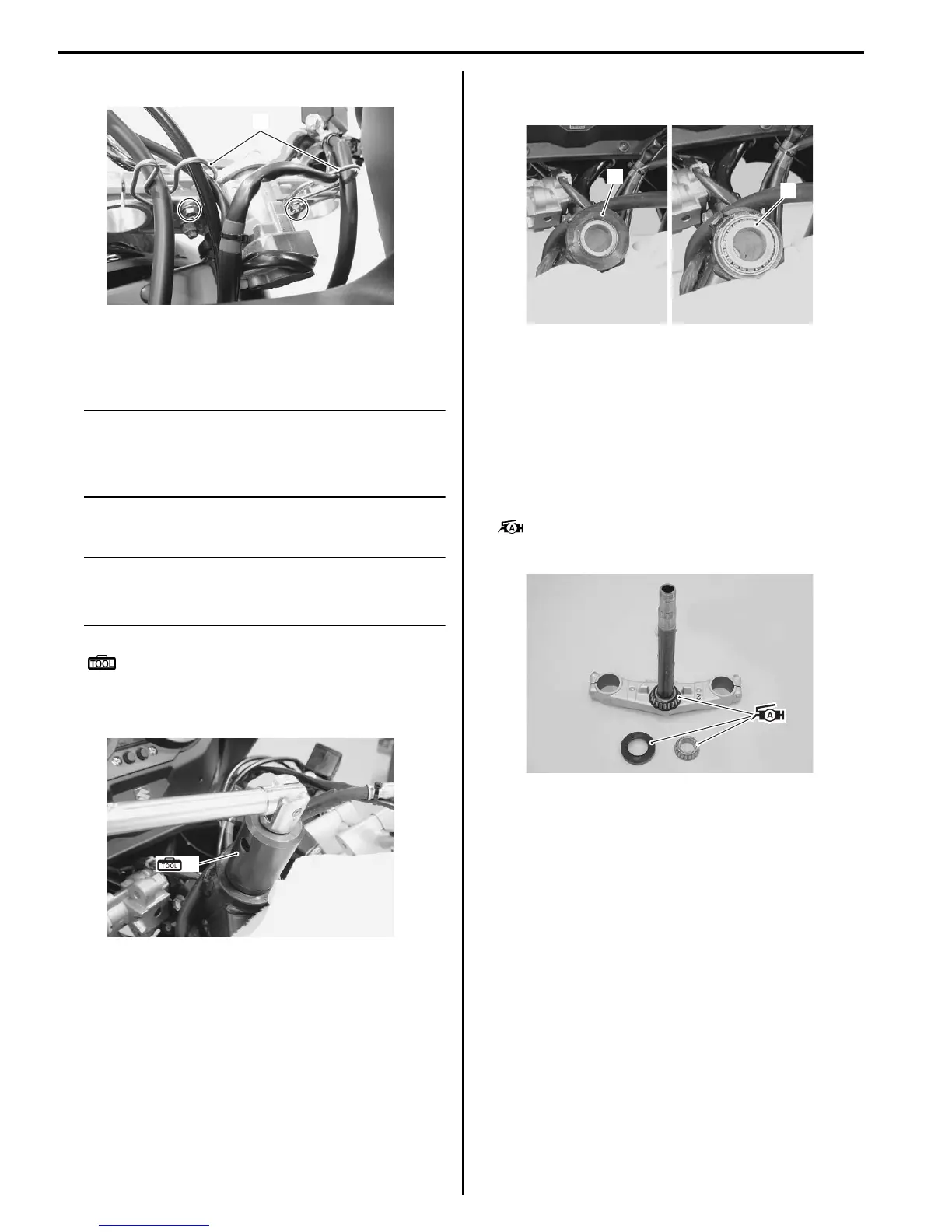

6B-7 Steering / Handlebar:
4) Remove the cable guides (2).
5) Dismount the handlebars and steering upper
bracket. Refer to “Ignition Switch Removal and
Installation in Section 1H (Page 1H-7)”.
NOTE
If necessary, remove the ignition switch from
the upper bracket. Refer to “Ignition Switch
Removal and Installation in Section 1H
(Page 1H-7)”.
6) Remove the steering stem nut using the special tool.
NOTE
When loosening the stem nuts, hold the
steering stem lower bracket to prevent it from
falling.
Special tool
(A): 09940–14911 (Steering stem nut
wrench)
7) Remove the steering stem lower bracket.
8) Remove the dust seal (3) and steering stem upper
bearing (4).
Installation
Install the steering in the reverse order of removal.
Pay attention to the following points:
Bearing
• Apply SUZUKI SUPER GREASE to the bearings,
races and dust seals before remounting the steering
stem.
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
2
I717H1620019-01
(A)
I717H1620023-02
3
4
I717H1620024-02
I717H1620025-01

Suzuki GSX650F Specifications

General

Engine Type	4-stroke, 4-cylinder, liquid-cooled, DOHC
Displacement	656cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Disc, twin
Rear Brakes	Disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm (83.9 in)
Wheelbase	1, 470 mm (57.9 in)
Overall Width	760 mm
Ground Clearance	135 mm
Curb Weight	241 kg
