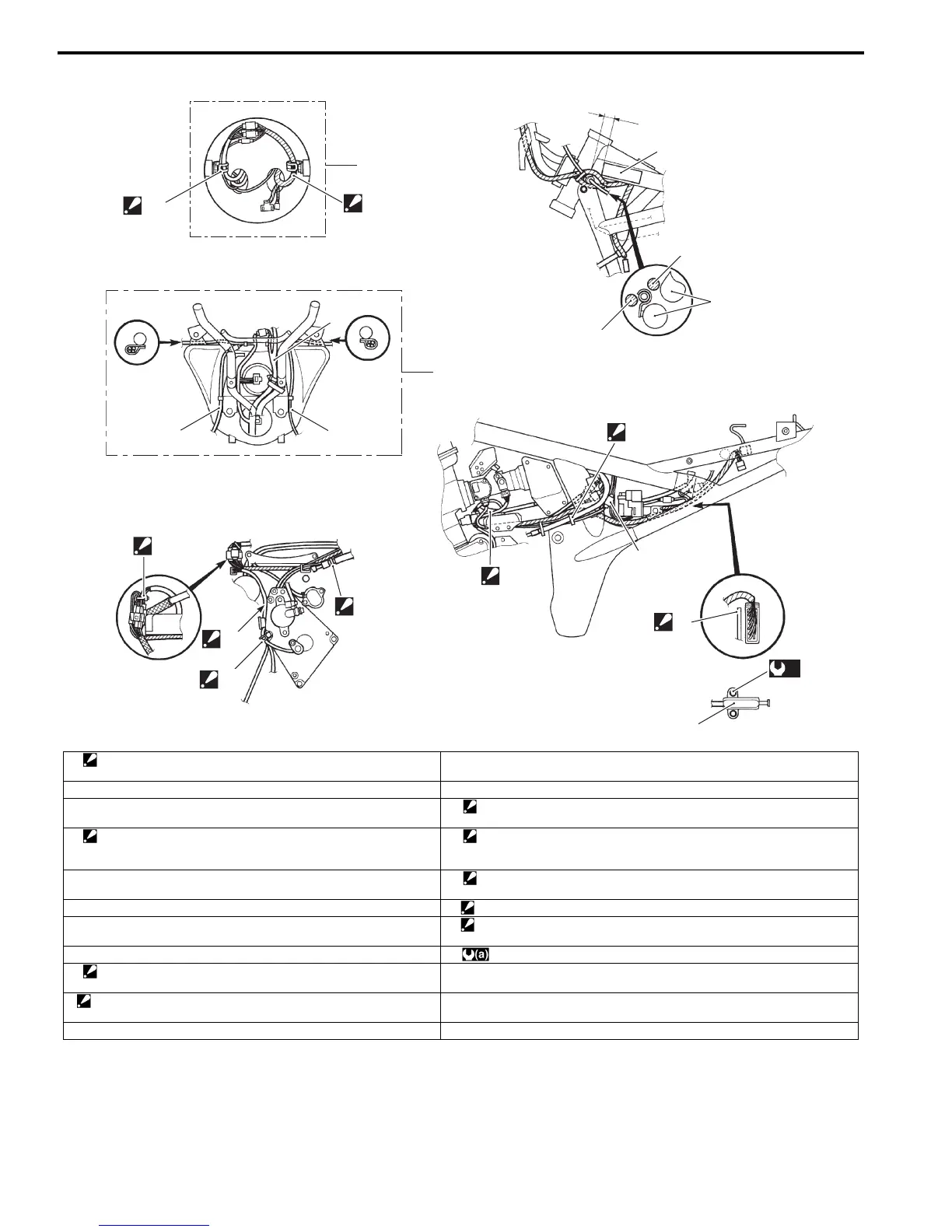

9A-9 Wiring Systems:
[A]
[B]
9
11
13 12
14
“B”
15
16
“a”
8
5
6
7
1
“A”
3
4
(a)
2
10
I717H1910906-01
1. Clamp
: Clamp the speed sensor lead wire and HO2 sensor lead wire.
12. Turn signal lead wire (RH)
2. Side-stand switch 13. Turn signal lead wire (LH)
3. HO2 sensor coupler 14. Clamp
: Clamp the regulator/rectifier lead wire and generator lead wire.
4. ABS control unit/HU bracket (GSF650A/SA only)
: Do not contact the ABS unit wiring harness with the bracket.
15. Clamp
: Clamp the speed sensor lead wire, HO2 sensor lead wire and side-
stand switch lead wire.
5. Frame 16. Clamp
: Clamp the lead wire inside of clutch hose.
6. Wiring harness (GSF650/A) “A”: Pass the regulator/rectifier lead wire behind hose.
7. Wiring harness (GSF650S/SA) “B”: Set the generator lead wire between starter motor and sprocket inner
cover.
8. ICES CANADA label (E-28 only) : 14 N⋅m (1.4 kgf-m, 10.0 lb-ft)
9. Clamp
: Clamp the lead wire at the white marking.
“a”: 20 ± 5 mm (0.8 ± 0.2 in)
10. Clamp
: Clamp the speed meter lead wire and turn signal lead wires.
[A]: For GSF650/GSF650A
11. Wiring harness [B]: For GSF650S/GSF650SA

Suzuki GSX650F Specifications

General

Engine Type	4-stroke, 4-cylinder, liquid-cooled, DOHC
Displacement	656cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Disc, twin
Rear Brakes	Disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm (83.9 in)
Wheelbase	1, 470 mm (57.9 in)
Overall Width	760 mm
Ground Clearance	135 mm
Curb Weight	241 kg
