Engine General Information and Diagnosis: 1A-16
Show Data When Trouble (DTC)
B817H21104004
Use of SDS
ECM stores the engine and driving conditions (in the form of data as shown in the figure) at the moment of the
detection of a malfunction in its memory. This data is called “Show data when trouble”.
Therefore, it is possible to know engine and driving conditions (e.g., whether the engine was warm or not, where the
motorcycle was running or stopped) when a malfunction was detected by checking the show data when trouble. This
show data when trouble function can record the maximum of two Diagnostic Trouble Codes in the ECM.
Also, ECM has a function to store each show data when trouble for two different malfunctions in the order as the
malfunction is detected. Utilizing this function, it is possible to know the order of malfunctions that have been detected.
Its use is helpful when rechecking or diagnosing a trouble.

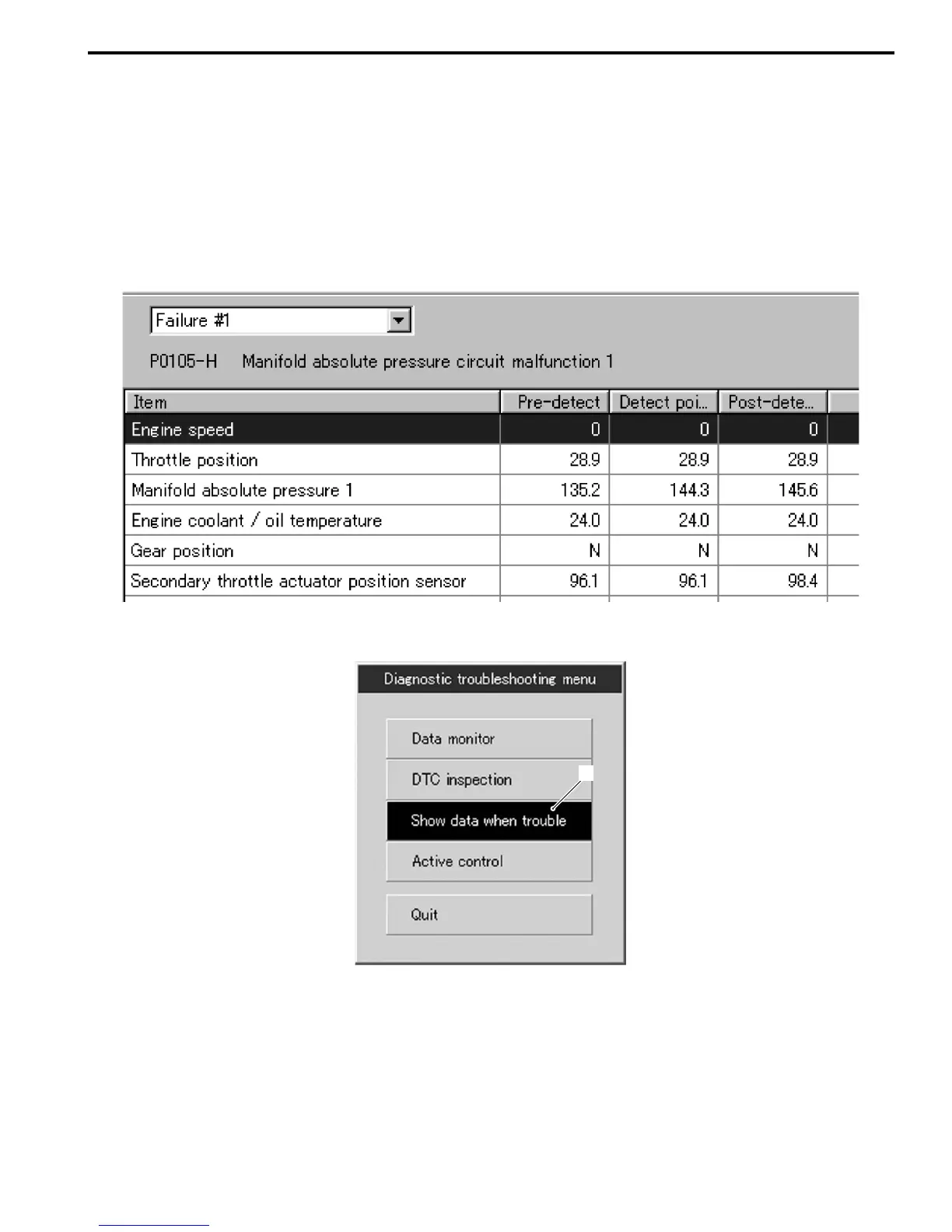

1) Click “Show data when trouble” (1) to display the data.
I705H1110010-01
1
I718H1110008-01

Suzuki GSX650F Specifications

General

Engine Type	4-stroke, 4-cylinder, liquid-cooled, DOHC
Displacement	656cc
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Disc, twin
Rear Brakes	Disc
Front Tire	120/70ZR17M/C (58W), tubeless
Rear Tire	160/60ZR17M/C (69W), tubeless
Overall Length	2, 130 mm (83.9 in)
Wheelbase	1, 470 mm (57.9 in)
Overall Width	760 mm
Ground Clearance	135 mm
Curb Weight	241 kg
