FI SYSTEM DIAGNOSIS 5-9

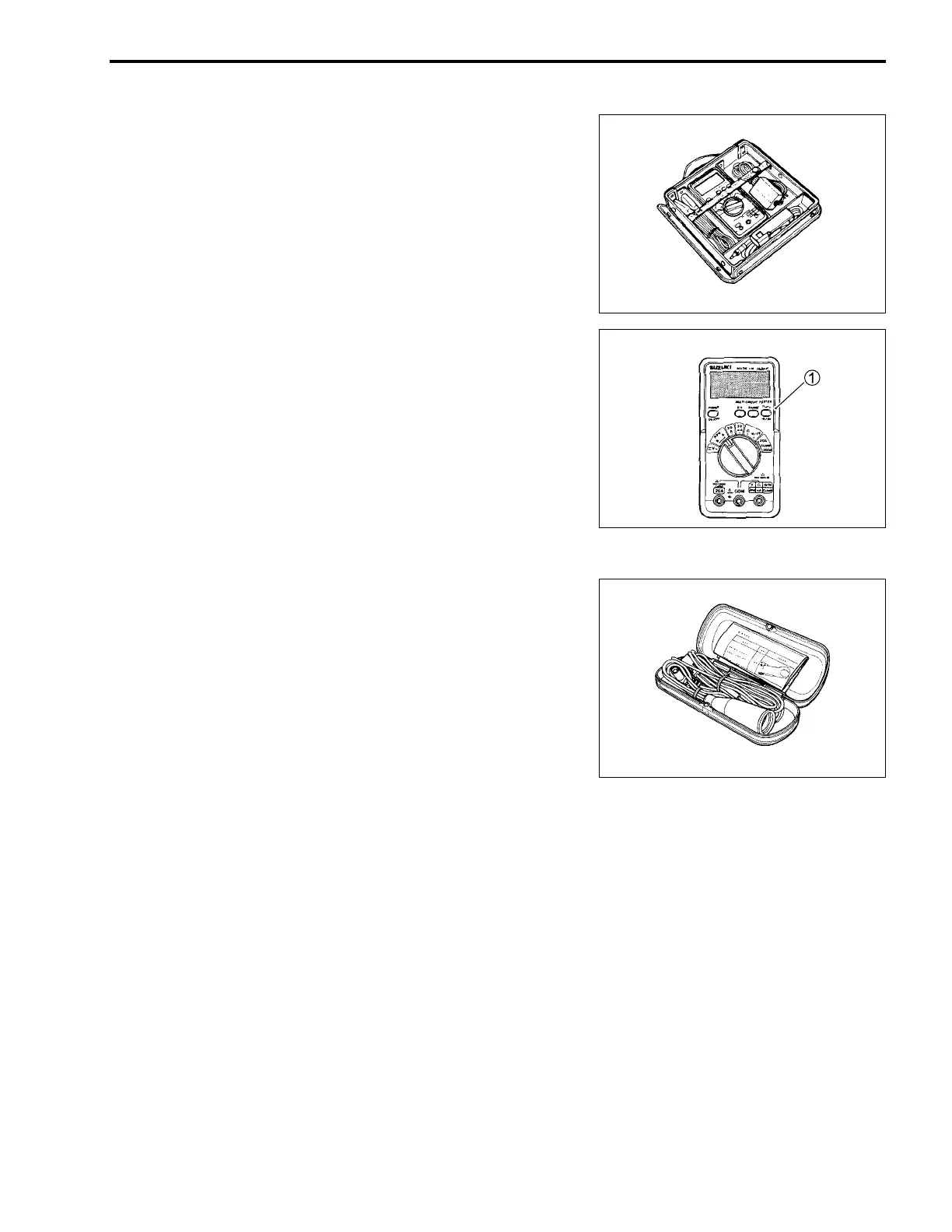

USING THE MULTI-CIRCUIT TESTER
• Use the Suzuki multi-circuit tester set (09900-25008).
• Use well-charged batteries in the tester.
• Be sure to set the tester to the correct testing range.
USING THE TESTER
• Incorrectly connecting the + and - probes may cause the
inside of the tester to burnout.
• If the voltage and current are not known, make measure-
ments using the highest range.
• When measuring the resistance with the multi-circuit tester 1,
∞ will be shown as 10.00 MΩ and “1” flashes in the display.
• Check that no voltage is applied before making the measure-
ment. If voltage is applied the tester may be damaged.
• After using the tester, turn the power off.
! 09900-25008: Multi-circuit tester set
NOTE:
* When connecting the multi-circuit tester, use the needle
pointed probe to the back side of the lead wire coupler and
connect the probes of tester to them.
* Use the needle pointed probe to prevent the rubber of the
water proof coupler from damage.
! 09900-25009: Needle pointed probe set

Suzuki VZR1800 2007 Specifications

General

Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Engine Type	4-stroke, liquid-cooled, DOHC, 54-degree V-twin
Transmission	5-speed
Front Tire	130/70R18M/C 63H
Overall Height	1185 mm
Seat Height	705 mm
Torque	160 Nm @ 3200 rpm
Ground Clearance	140mm
Overall Length	2485 mm (97.8 in)
Power	125 hp (93 kW) @ 6200 rpm
