Suzuki VZR1800 2007 User Manual

6-24 FUEL SYSTEM AND THROTTLE BODY
Step 2
• Warm up the engine as follows:
Summer: approx. 5 min at idle r/min
Winter: approx. 8 min at idle r/min
• Water temperature should be more than 80 °C (176 °F) and
then wait 30 second.
• Then ISC valve automatically is set at throttle body synchroni-
zation position.

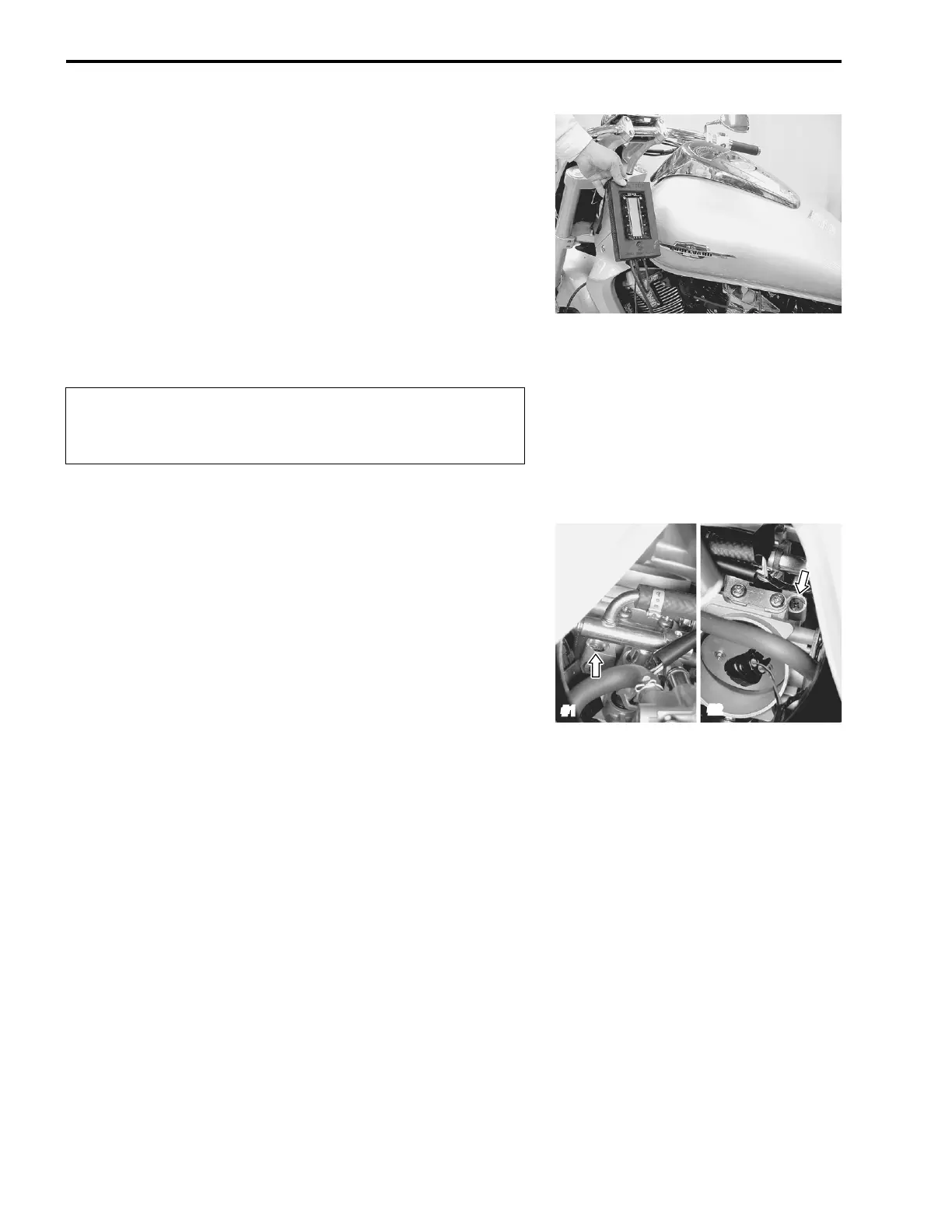

• Check for difference of vacuum between #1 and #2.
• Adjust the throttle valve synchronization and idling speed at
900 r/min by turning the air screw it necessary.
"
NOTE:
Always set the engine rpm at 900 r/min.
• If the adjustment is not yet correct, remove each air screw
and clean them with a spray-type carburetor cleaner and blow
dry with a compressed air.
• Also, clean the air screw passageways.
NOTE:
* Slowly turn the air screw in clockwise and count the number of
turns until the screw is lightly seated.
* Make a note of how many turns were made so the screw can
be reset correctly after cleaning.
Step 3
Repeat the procedures of Step 2.
THROTTLE POSITION SENSOR (TPS)
SETTING
After all adjustments are completed, check or adjust the TPS
setting condition.
(Refer to page 5-20 for TPS setting procedure.)
Avoid dirt drawn into the throttle body while running
the engine without air cleaner chamber. Dirt drawn
into the engine will damage the internal engine parts.
#1
#2

Suzuki VZR1800 2007 Specifications

General

Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Engine Type	4-stroke, liquid-cooled, DOHC, 54-degree V-twin
Transmission	5-speed
Front Tire	130/70R18M/C 63H
Overall Height	1185 mm
Seat Height	705 mm
Torque	160 Nm @ 3200 rpm
Ground Clearance	140mm
Overall Length	2485 mm (97.8 in)
Power	125 hp (93 kW) @ 6200 rpm
