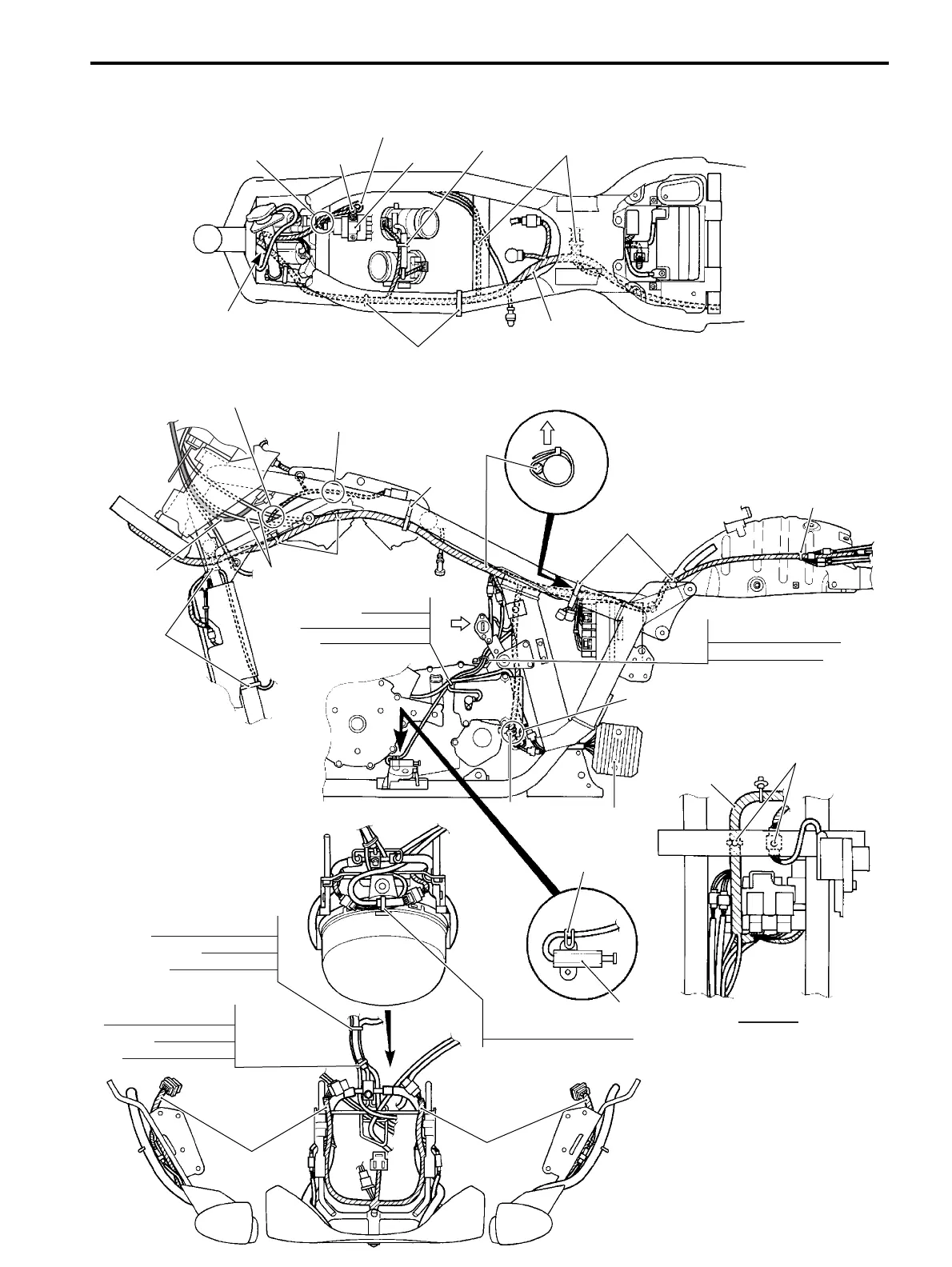

WIRING HARNESS ROUTING
Clamp
Fix the clamp to the frame.
Clamp
Wiring harness
Clamp
ISC valve
Wiring harness
Face the lead wire
to the lower.
Set the speedometer
harness to the right side.
Keep the clearance
between wiring harness
and fuel tank and frame.
Fix the clamp
to the frame.
Wiring harness
Clamp
To the HO2
sensor
Clamp
Clamp
Upper
Regulator/rectifier
Clamp
Do not touch the regulator/rectifier
lead wire to the other part.
Clamp
Side-stand switch
Clamp
Speedometer sensor
Side-stand switch
Generator
VIEW A
A
Speedometer sensor
Side-stand switch
Clamp
Fix the coupler to the frame.
Wiring harness
Clamp
Throttle
cable
Clamp
Handlebar switch R, L
Clamp
Handlebar switch, R
Tachometer
Front brake hose
Clamp
Handlebar switch, R
Tachometer
Front brake hose
Wiring harness
Wiring harness
Pass the wiring harness
inside of the throttle cable.
Tachometer
lead wire
15- 16 VZR1800N ('08-MODEL)

Suzuki VZR1800 2007 Specifications

General

Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Engine Type	4-stroke, liquid-cooled, DOHC, 54-degree V-twin
Transmission	5-speed
Front Tire	130/70R18M/C 63H
Overall Height	1185 mm
Seat Height	705 mm
Torque	160 Nm @ 3200 rpm
Ground Clearance	140mm
Overall Length	2485 mm (97.8 in)
Power	125 hp (93 kW) @ 6200 rpm
