Suzuki VZR1800 2007 User Manual

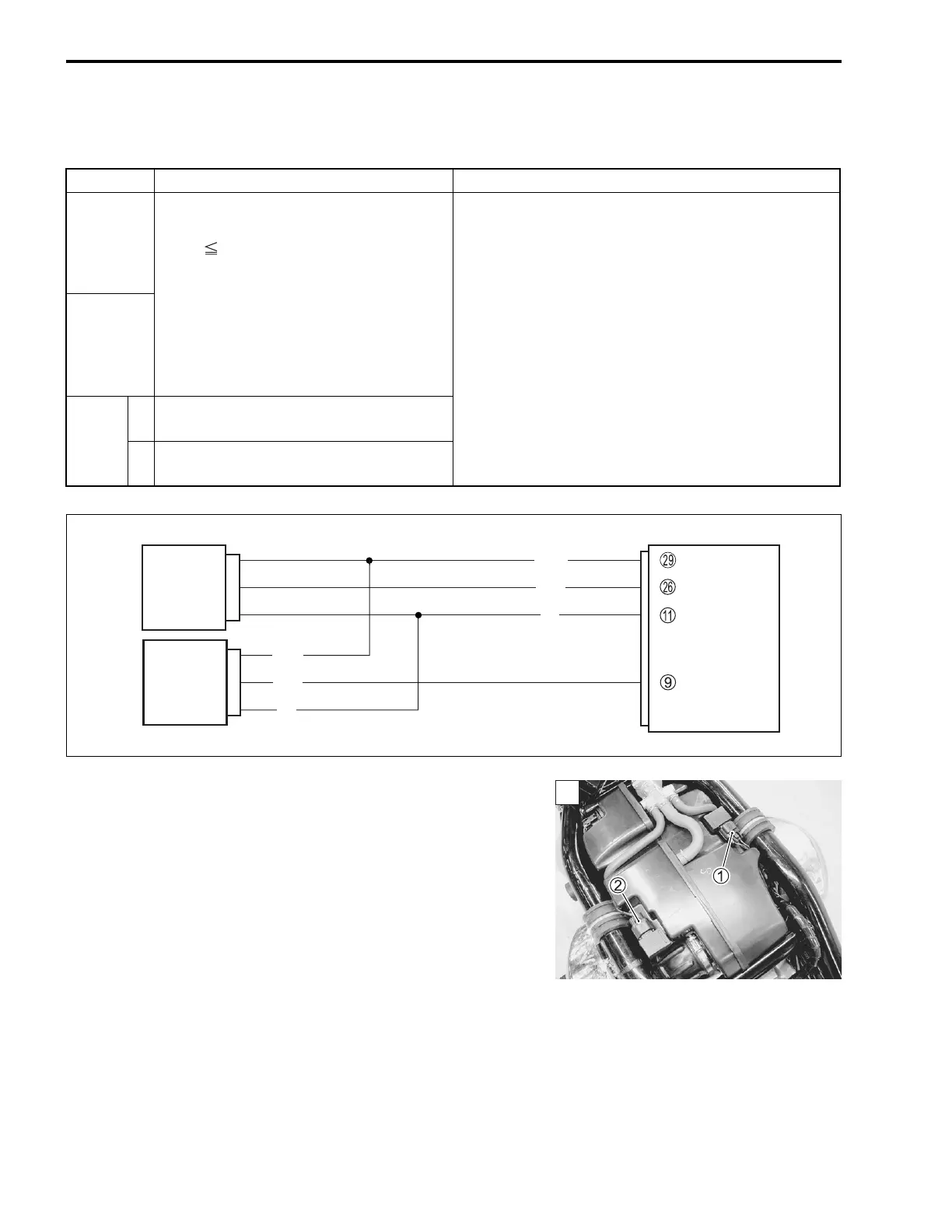

5-34 FI SYSTEM DIAGNOSIS
“C13” (P1750-H/L) or “C17” (P0105-H/L) IAP SENSOR CIRCUIT
MALFUNCTION
INSPECTION
Step 1
(When indicating C13 for IAP sensor #2)
(When indicating C17 for IAP sensor #1)
1) Remove the fuel tank. (#6-3)
2) Turn the ignition switch OFF.
3) Check the IAP sensor coupler (#2 1 or #1 2) for loose or
poor contacts.
If OK, then measure the IAP sensor input voltage.
DETECTED CONDITION POSSIBLE CAUSE
C13/C17 IAP sensor voltage is not within the fol-
lowing range.
0.5 V Sensor voltage < 4.85 V
NOTE:
Note that atmospheric pressure varies
depending on weather conditions as
well as altitude.
Take that into consideration when
inspecting voltage.
• Clogged vacuum passage between throttle body
and IAP sensor.
• Air being drawn from vacuum passage between
throttle body and IAP sensor.
• IAP sensor circuit open or shorted to ground.
• IAP sensor malfunction.
• ECM malfunction.
P1750/
P0105
P1750/
P0105
H
Sensor voltage is higher than specified
value.
• IAP sensor circuit shorted to VCC or ground cir-
cuit open.
• IAP sensor circuit open or shorted to ground or
VCC circuit open.
L
Sensor voltage is lower than specified
value.
ECM
R
B/Br
P/B
E2
IAP. F
VCC
IAP sensor #2 (Front cylinder)
IAP sensor #1 (Rear cylinder)
B/Br
G/B
R
IAP. R
1

Suzuki VZR1800 2007 Specifications

General

Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Engine Type	4-stroke, liquid-cooled, DOHC, 54-degree V-twin
Transmission	5-speed
Front Tire	130/70R18M/C 63H
Overall Height	1185 mm
Seat Height	705 mm
Torque	160 Nm @ 3200 rpm
Ground Clearance	140mm
Overall Length	2485 mm (97.8 in)
Power	125 hp (93 kW) @ 6200 rpm
