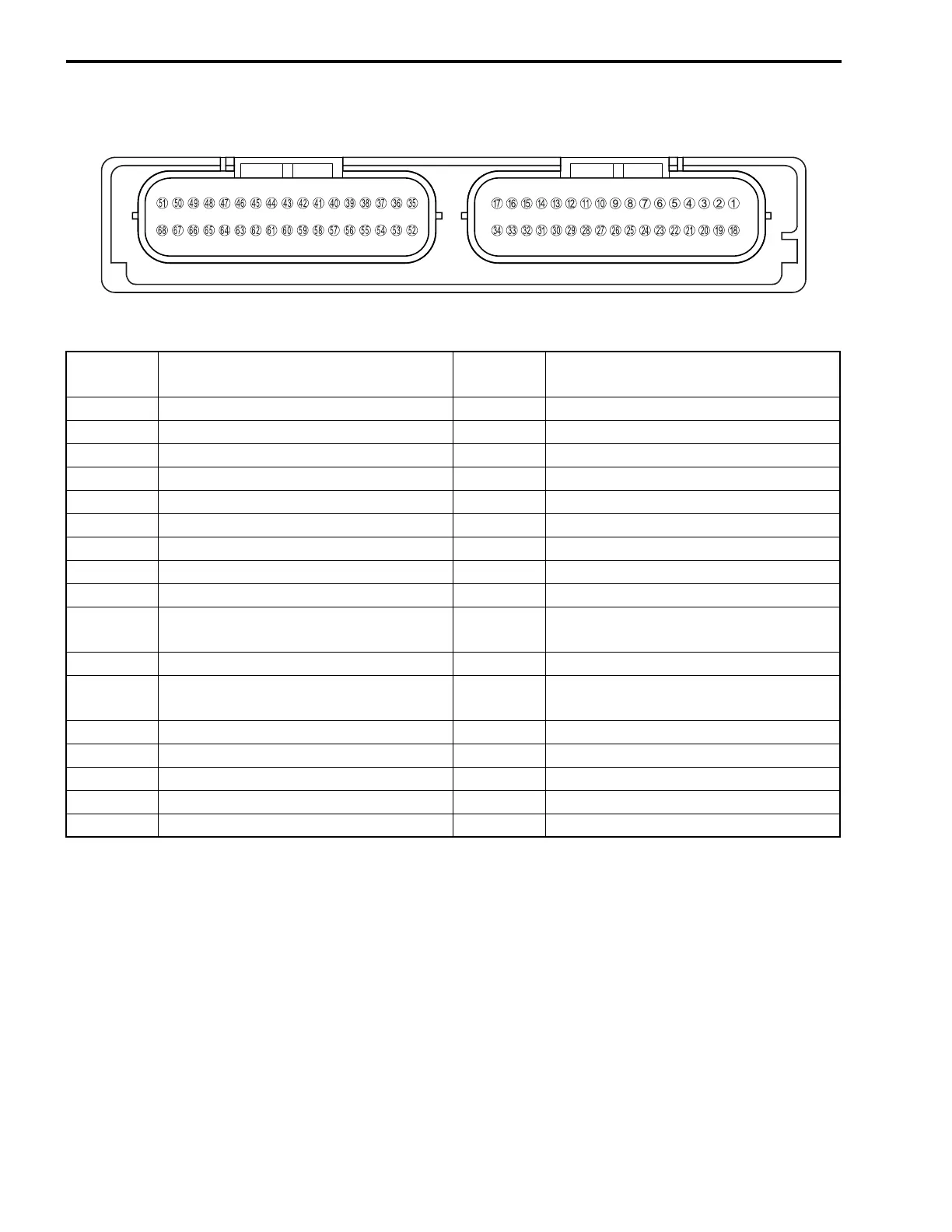

5-16 FI SYSTEM DIAGNOSIS
TERMINAL
NO.
CIRCUIT
TERMINAL
NO.
CIRCUIT
Y ISC signal (ISC, 2A) l ISC signal (ISC, 2B)
Z ISC signal (ISC, 1A) m ISC signal (ISC, 1B)
[ — n —
\ — o —
] Fuel pump relay (FP Relay) p —
^ — q —
a HO2 sensor heater (HO2, H) r Mode select switch
b Starter relay s Neutral switch
c Cooling fan relay (FAR) t Clutch position switch
d
Rear cylinder PAIR control solenoid #1
valve (PAIR. #1)
u —
e Blank v —
f Blank w
PAIR control solenoid valve #2
(PAIR. #2) [Except for E-03, 28, 33]
g Fuel injector #2 (#21) x Tachometer
h Fuel injector #1 (#11) y —
i Ignition coil #2 z Ground
j Ignition coil #2 { Ground for ignition system
k Ignition coil #1 | Ignition coil #1

Suzuki VZR1800 2007 Specifications

General

Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Engine Type	4-stroke, liquid-cooled, DOHC, 54-degree V-twin
Transmission	5-speed
Front Tire	130/70R18M/C 63H
Overall Height	1185 mm
Seat Height	705 mm
Torque	160 Nm @ 3200 rpm
Ground Clearance	140mm
Overall Length	2485 mm (97.8 in)
Power	125 hp (93 kW) @ 6200 rpm
