5-80 FI SYSTEM DIAGNOSIS

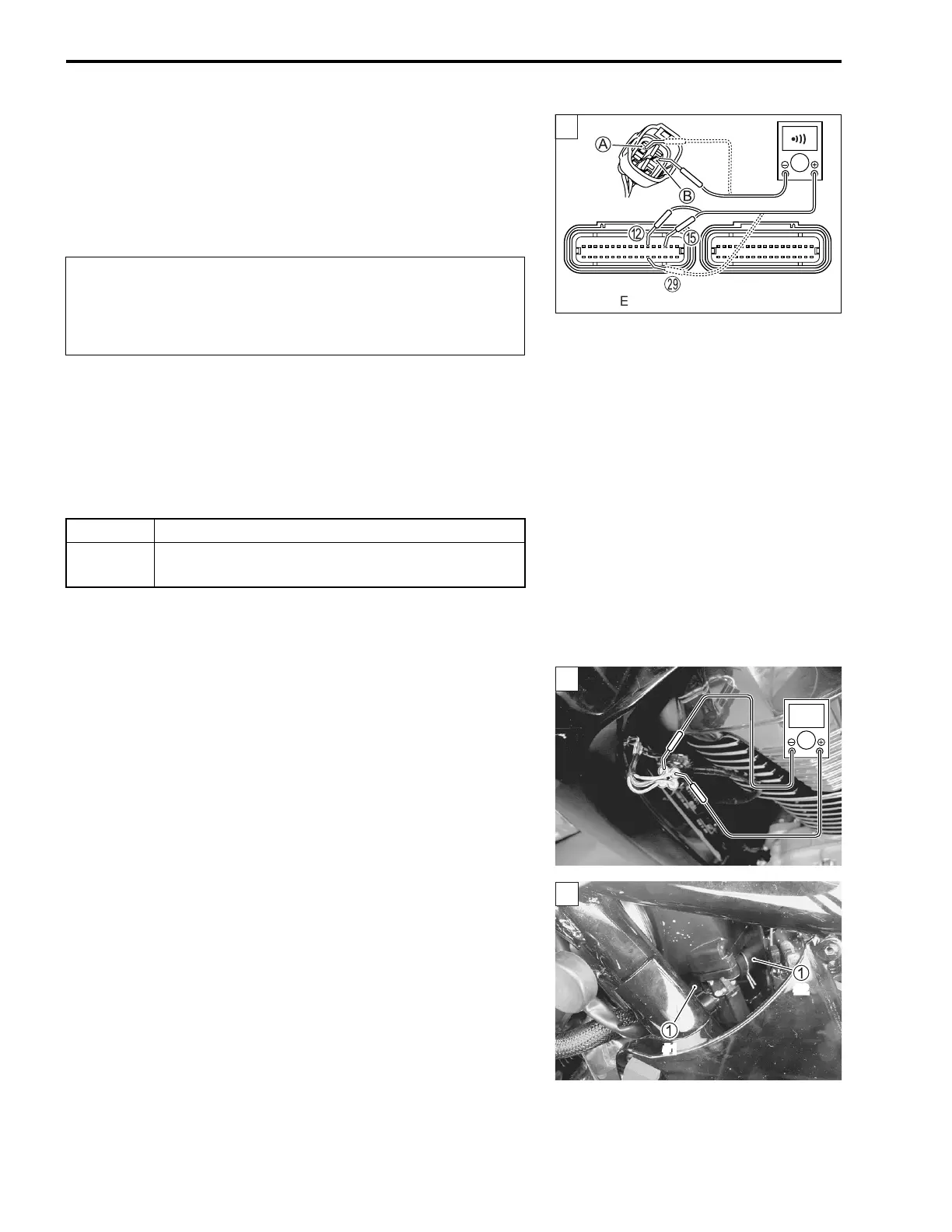

6) Disconnect the ECM coupler. (#5-37)
7) Check the continuity between W/G or W/Bl wire A and termi-
nal B, E.
8) Also, check the continuity between B/Br wire B and terminal
S.
"
$ HO2S lead wire continuity: Continuity (()
! 09900-25008: Multi-circuit tester set
09900-25009: Needle pointed probe set
) Tester knob indication: Continuity test (()
Is the continuity OK?
9) After repairing the trouble, clear the DTC using SDS tool.
(#5-26)
Step 2
1) Connect the ECM coupler and HO2 sensor coupler.
2) Warm up the engine enough.
3) Measure the HO2 sensor output voltage between W/G or
W/Bl wire and B/Br wire, when idling condition.
$ HO2 sensor output voltage at idle speed:
0.4 V and less (+ W/G or W/Bl – - B/Br)
4) If OK, then pinch the PAIR hose 1 with a proper hose clamp.
5) Remove the fuel tank (#6-3) and frame head covers
(#9-6).
6) Measure the HO2 sensor output voltage while holding the
engine speed at 3 000 r/min.
$ HO2 sensor output voltage at 3 000 r/min:
0.6 V and more (+ W/G or W/Bl – - B/Br)
! 09900-25008: Multi-circuit tester set
09900-25009: Needle pointed probe set
& Tester knob indication: Voltage (')
When using the multi-circuit tester, do not strongly
touch the terminal of the ECM coupler with a needle
pointed tester probe to prevent the terminal damage
or terminal bend.
YES Go to Step 2. (When indicating C44/P0130:)
NO
W/G or W/Bl wire shorted to ground, or W/G and
W/Bl or B/Br wire open.
1
]
ECM coupler (Harness side)
(Black)
(Gray)
2
V
2
#1
#2

Suzuki VZR1800 2007 Specifications

General

Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Engine Type	4-stroke, liquid-cooled, DOHC, 54-degree V-twin
Transmission	5-speed
Front Tire	130/70R18M/C 63H
Overall Height	1185 mm
Seat Height	705 mm
Torque	160 Nm @ 3200 rpm
Ground Clearance	140mm
Overall Length	2485 mm (97.8 in)
Power	125 hp (93 kW) @ 6200 rpm
