5-96 FI SYSTEM DIAGNOSIS

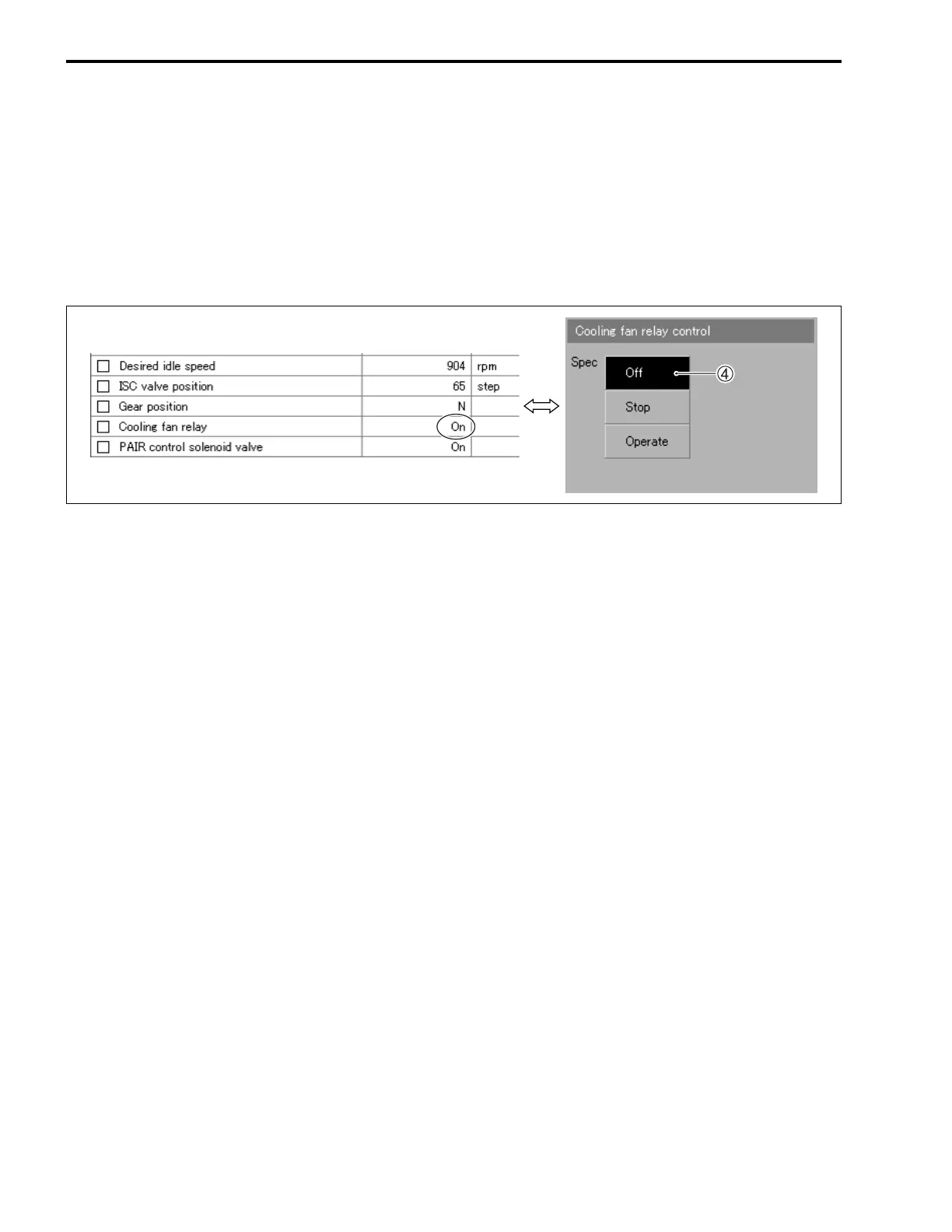

6) Click the off button 4 to check the cooling fan relay and cooling fan motor operation.
NOTE:
This inspection should be begun from when the engine coolant temperature is below 50 °C (122 °F).
Check that the cooling fan relay operates for a few seconds as the engine coolant temperature arrives each
at 50 °C (122 °F), 70 °C (158 °F) and 90 °C (194 °F) / above 4 000 r/min. It is cooling fan motor malfunction
or its circuit failure when the motor would not run even if the relay turns to ON.
NOTE:
There is a tolerance of operating temperature of cooling fan relay.

Suzuki VZR1800 2007 Specifications

General

Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Engine Type	4-stroke, liquid-cooled, DOHC, 54-degree V-twin
Transmission	5-speed
Front Tire	130/70R18M/C 63H
Overall Height	1185 mm
Seat Height	705 mm
Torque	160 Nm @ 3200 rpm
Ground Clearance	140mm
Overall Length	2485 mm (97.8 in)
Power	125 hp (93 kW) @ 6200 rpm
