CHASSIS 9-39
REAR WHEEL

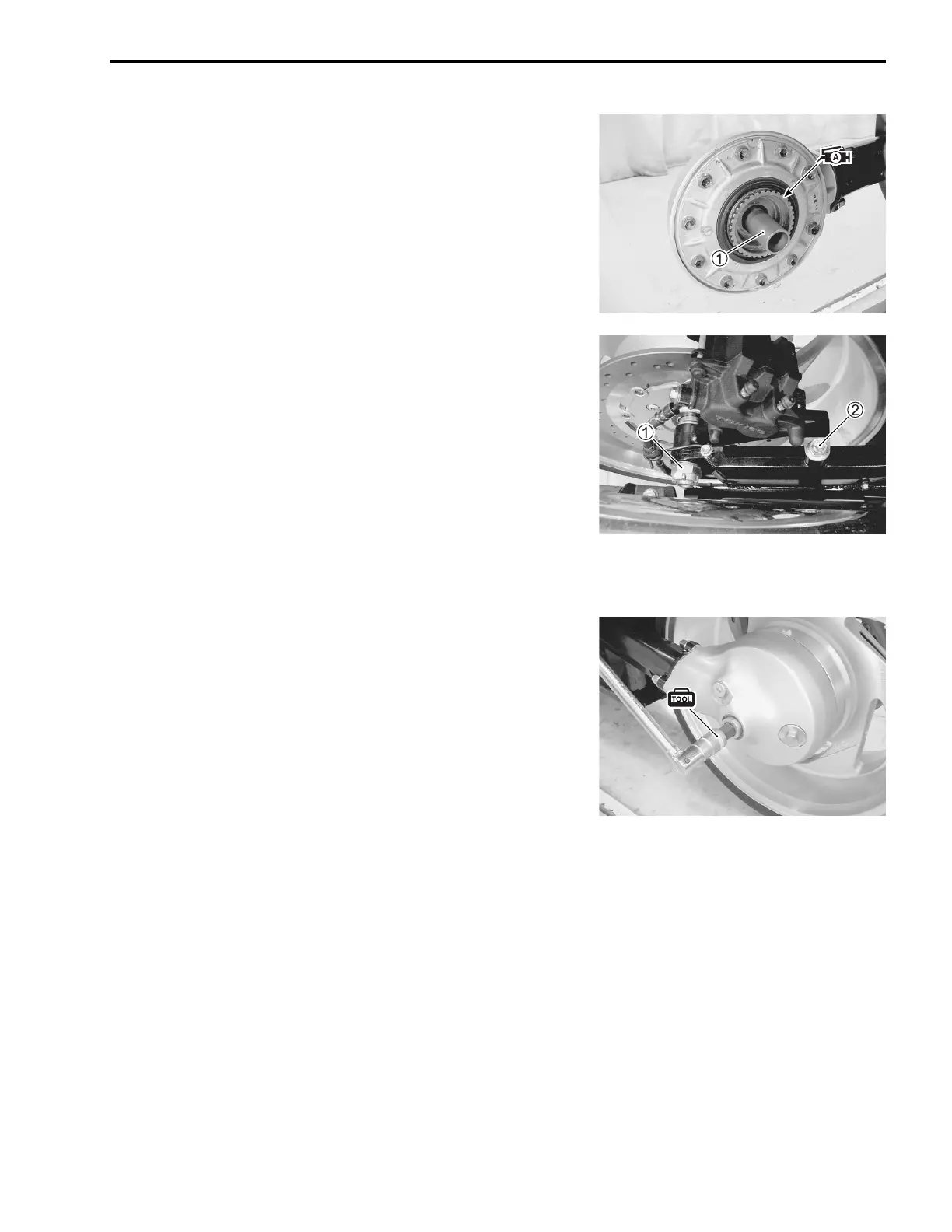

• Install the spacer 1.
• Apply SUZUKI SUPER GREASE “A” to the final gear spline
before installing the rear wheel.
' 99000-25010: SUZUKI SUPER GREASE “A”
or equivalent
• Remount the rear wheel, rear axle and coller.
• Install the washer and rear axle nut.
• Install the brake caliper with the caliper bracket.
• Tighten the rear axle nut 1 to the specified torque with the
special tool.
% 09944-28320: Hexagon socket
# Rear axle nut
(For E-03, 28, 33): 100 N·m (10.0 kgf-m, 72.5 lb-ft)
(For others): 110 N·m (11.0 kgf-m, 79.5 lb-ft)
• Tighten the brake caliper bracket mounting bolt 2 to the
specified torque.
# Brake caliper bracket mounting bolt:
80 N·m (8.0 kgf-m, 58.0 lb-ft)
NOTE:
After remounting the rear wheel, check for proper brake opera-
tion.

Suzuki VZR1800 2007 Specifications

General

Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Engine Type	4-stroke, liquid-cooled, DOHC, 54-degree V-twin
Transmission	5-speed
Front Tire	130/70R18M/C 63H
Overall Height	1185 mm
Seat Height	705 mm
Torque	160 Nm @ 3200 rpm
Ground Clearance	140mm
Overall Length	2485 mm (97.8 in)
Power	125 hp (93 kW) @ 6200 rpm
