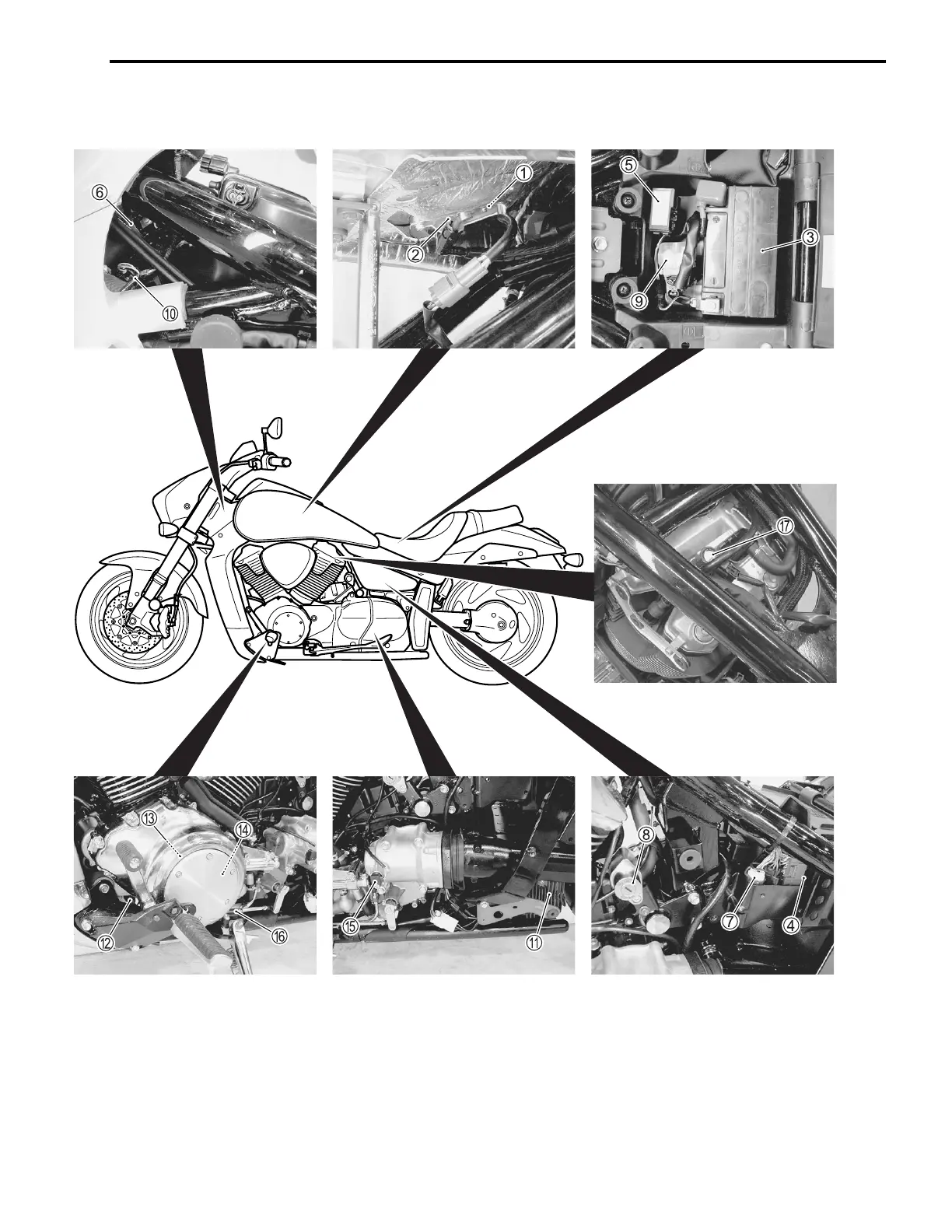

ELECTRICAL SYSTEM 10-7
1 Fuel level gauge
2 Fuel pump (!6-8)
3 Battery
4 ECM (Engine Control Module)
5 Fuse box
6 Ignition coil (#2)
7 Mode selection switch coupler (!5-24)
8 Ignition switch
9 Starter relay/Main fuse
0 PAIR control solenoid valve (!12-6)
A Regulator/Rectifier
B Oil pressure switch
C Generator
D CKP sensor (!5-32)
E Speedometer sensor
F Side-stand switch
G Ignition coil/Plug cap (#1)
