Suzuki VZR1800 2007 User Manual

ELECTRICAL SYSTEM 10-21

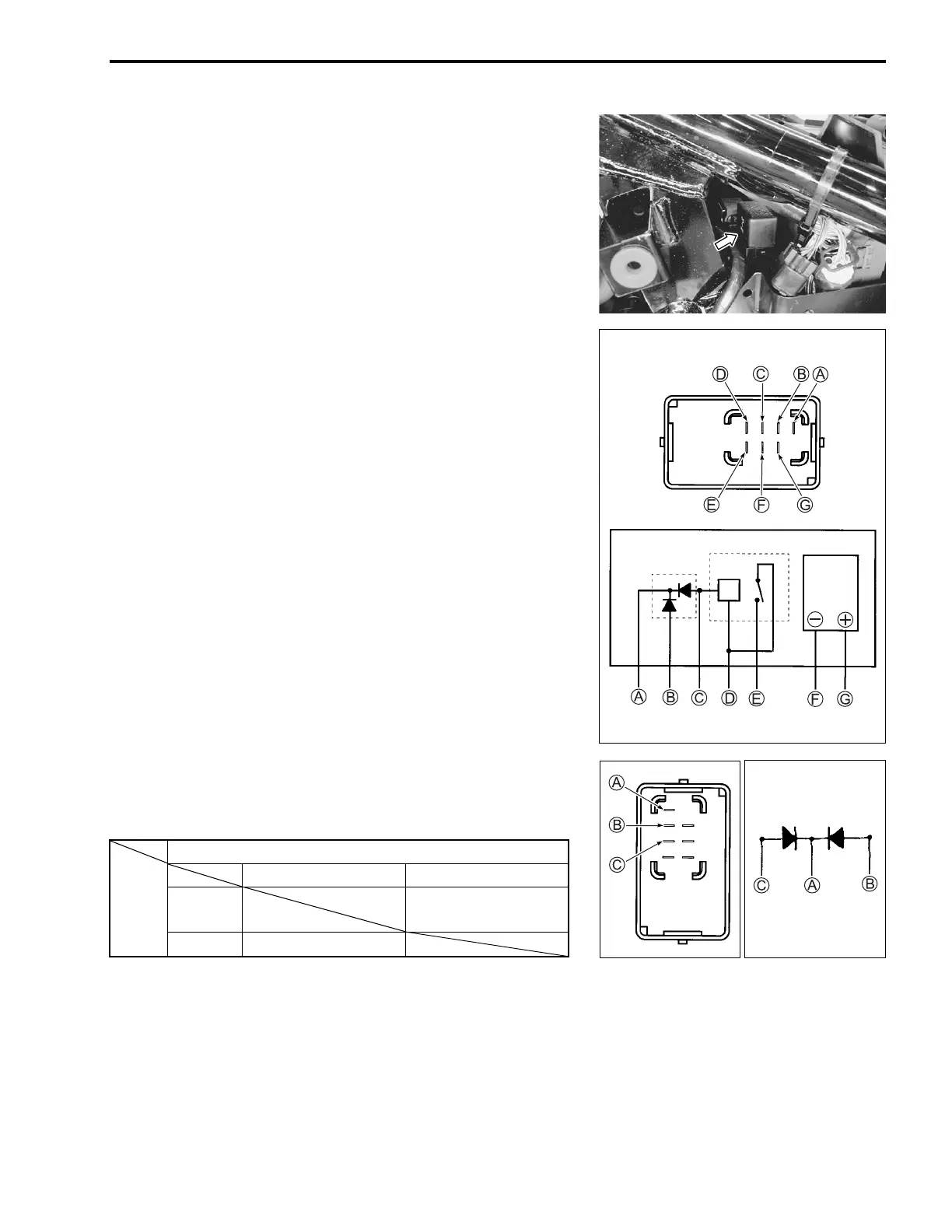

TURN SIGNAL/SIDE-STAND RELAY
The turn signal/side-stand relay is composed of the turn signal
relay, side-stand relay and diode.
• Remove the left frame side cover. (!9-5)
• Remove the turn signal/side-stand relay.
SIDE-STAND RELAY INSPECTION
First check the insulation between D and E terminals with the
tester. Then apply 12 V to terminals D and C (+ to D and - to
C) and check the continuity between D and E. If there is no
continuity, replace the turn signal/side-stand relay with a new
one.
" 09900-25008: Multi-circuit tester set
- Tester knob indication: Continuity test (.)
DIODE INSPECTION
Measure the voltage between the terminals using the multi-cir-
cuit tester. Refer to the following table.
" 09900-25008: Multi-circuit tester set
) Tester knob indication: Diode test (*)
NOTE:
If the multi-circuit tester reads 1.4 V and below when the tester
probes are not connected, replace its battery.
DIODE
SIDE-STAND RELAY
TURN
SIGNAL
RELAY
+ Probe of tester to:
- Probe of tester to:
C, B A
C, B
1.4 V and more
(Tester’s battery voltage)
A 0.4 – 0.6 V

Suzuki VZR1800 2007 Specifications

General

Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Engine Type	4-stroke, liquid-cooled, DOHC, 54-degree V-twin
Transmission	5-speed
Front Tire	130/70R18M/C 63H
Overall Height	1185 mm
Seat Height	705 mm
Torque	160 Nm @ 3200 rpm
Ground Clearance	140mm
Overall Length	2485 mm (97.8 in)
Power	125 hp (93 kW) @ 6200 rpm
