11-36 SERVICING INFORMATION

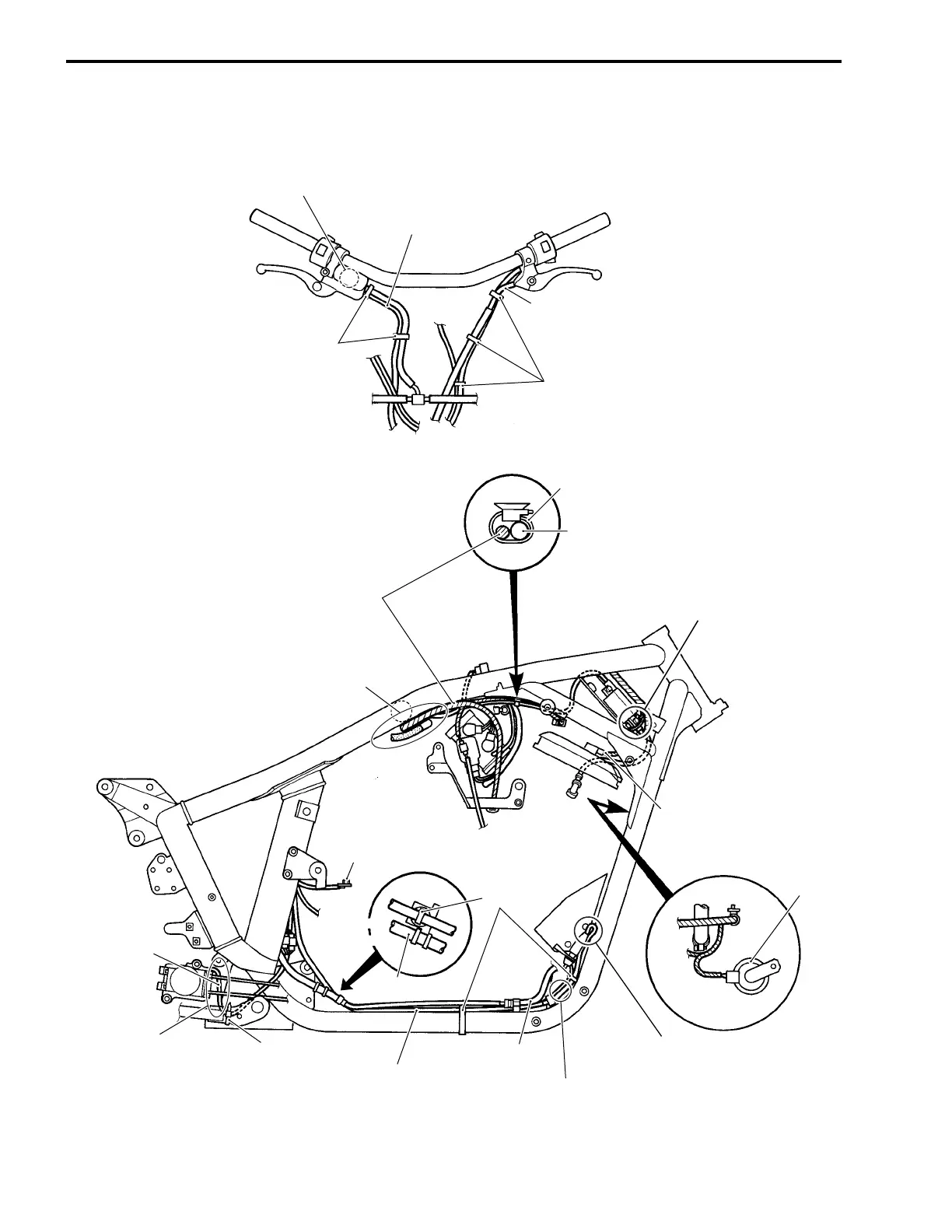

Handlebar switch lead wire (L)
Clamp
To the
tachometer
Handlebar switch lead wire (R)
Clamp
Pass the handlebar switch lead wire
upper the brake switch coupler.
Clamp
Ignition coil
high tension cord
Wiring harness
Pass the wiring harness
upper the breather hose.
Pass the lead wire
outside of the terminal.
Pass the ignition coil/plug cap
cord upper the breather hose.
Horn
Clamp
Pass the starter motor lead wire
inside of the rear brake hose.
Do not touch the starter motor
lead wire to the brake rod.
Rear brake hose
Keep the starter motor lead wire
inside of the brake pipe.
Brake hose
To the gear
position switch
Ground wire
Clamp
EXCVA lead wire
Pass the EXCVA lead wire
between the frame
and the EXCV cable

Suzuki VZR1800 2007 Specifications

General

Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Engine Type	4-stroke, liquid-cooled, DOHC, 54-degree V-twin
Transmission	5-speed
Front Tire	130/70R18M/C 63H
Overall Height	1185 mm
Seat Height	705 mm
Torque	160 Nm @ 3200 rpm
Ground Clearance	140mm
Overall Length	2485 mm (97.8 in)
Power	125 hp (93 kW) @ 6200 rpm
