Suzuki VZR1800 2007 User Manual

ENGINE 3-31

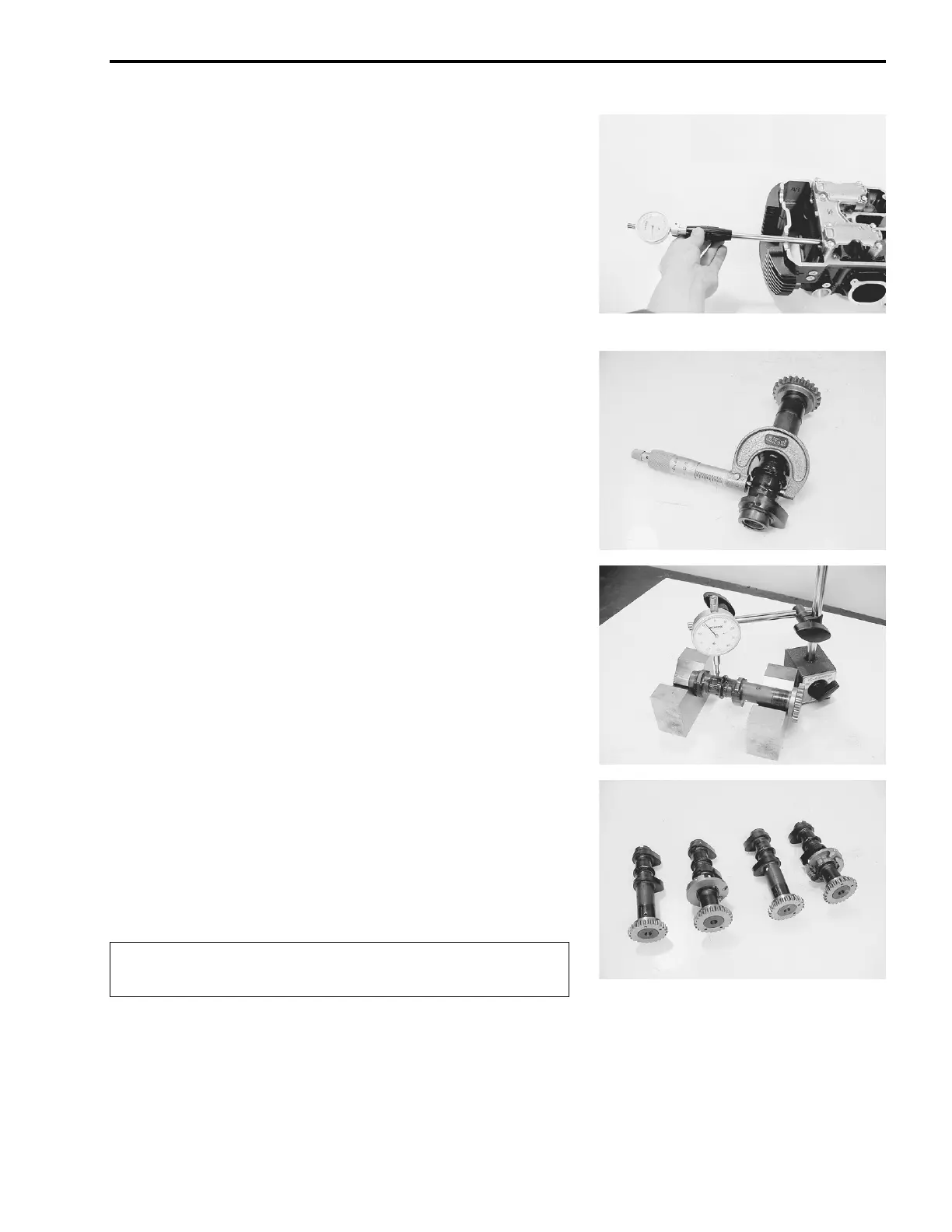

• If the camshaft journal oil clearance measured exceeds the
limit, measure the inside diameter of the camshaft journal
holder and outside diameter of the camshaft journal.
• Replace the camshaft or the cylinder head depending upon
which one exceeds the specification.
$ Camshaft journal holder I.D.:
Standard: (IN. & EX.):
24.012 – 24.025 mm (0.9454 – 0.9459 in)
% 09900-20602: Dial gauge (1/1 000, 1 mm)
09900-22403: Small bore gauge (18 – 35 mm)
$ Camshaft journal O.D.:
Standard (IN. & EX.):
23.959 – 23.980 mm (0.9433 – 0.9441 in)
% 09900-20205: Micrometer (0 – 25 mm)
CAMSHAFT RUNOUT
• Measure the runout using the dial gauge.
• Replace the camshaft if the runout exceeds the limit.
$ Camshaft runout:
Service Limit (IN. & EX.): 0.10 mm (0.004 in)
% 09900-20607: Dial gauge (1/100 mm, 10 mm)
09900-20701: Magnetic stand
09900-21304: V-block set (100 mm)
CAM SPROCKET AND AUTOMATIC-DECOMP.
• Inspect the cam sprocket teeth for wear and damage.
• Inspect the automatic-decomp. for damage and smooth oper-
ation.
• If there are unusual, replace the camshaft assembly and cam
chain as a set.
"
Do not attempt to disassemble the cam sprockets and
automatic-decomp. assembly. They are unserviceable.

Suzuki VZR1800 2007 Specifications

General

Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Engine Type	4-stroke, liquid-cooled, DOHC, 54-degree V-twin
Transmission	5-speed
Front Tire	130/70R18M/C 63H
Overall Height	1185 mm
Seat Height	705 mm
Torque	160 Nm @ 3200 rpm
Ground Clearance	140mm
Overall Length	2485 mm (97.8 in)
Power	125 hp (93 kW) @ 6200 rpm
