OPERATION
OPERATING THE MACHINE

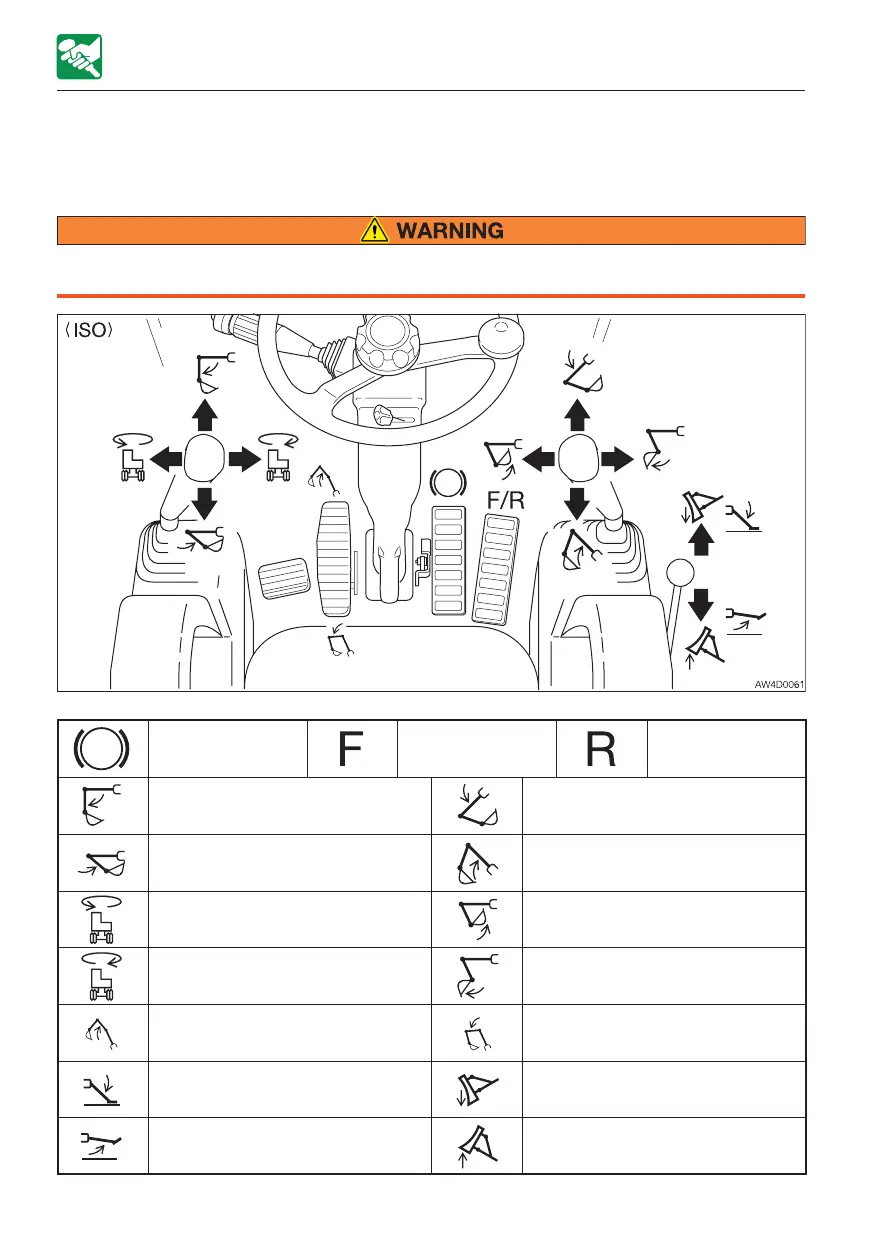

LEVER PATTERN (ISO PATTERN)
• Before starting operation, carefully check which lever pattern you are going to use.
• It is described using the ISO pattern in this manual.
OPERATING THE MACHINE
Brake Forward Travel Reverse Travel
Arm Out Boom Lower
Arm In Boom Raise
Upperstructure Slew Left Bucket Load
Upperstructure Slew Right Bucket Dump
Second Boom Raise
(2-piece boom)
Second Boom Lower
(2-piece boom)
Outrigger Lower Dozer Blade Lower
Outrigger Raise Dozer Blade Raise
