5-49
MAINTENANCE
INSPECTING THE TRANSMISSION GEAR
OIL
• Stop the engine and allow each part of
the machine to cool down before
performing maintenance.
· The transmission is hot immediately
after the engine is stopped. Touching
it will cause burns.
· The gear oil is also hot and under high
pressure immediately after the engine
is stopped.
Be careful not to touch the oil when
loosening the plugs. Working on the
machine under these conditions could
result in burns or injuries.
• The pressure in the reduction gear case
of transmission may cause oil or the
plug to fly out. Loosen the plug slowly
to release the pressure.
1. Park the machine on a level surface and
stop the engine.
EVERY 500 HOURS

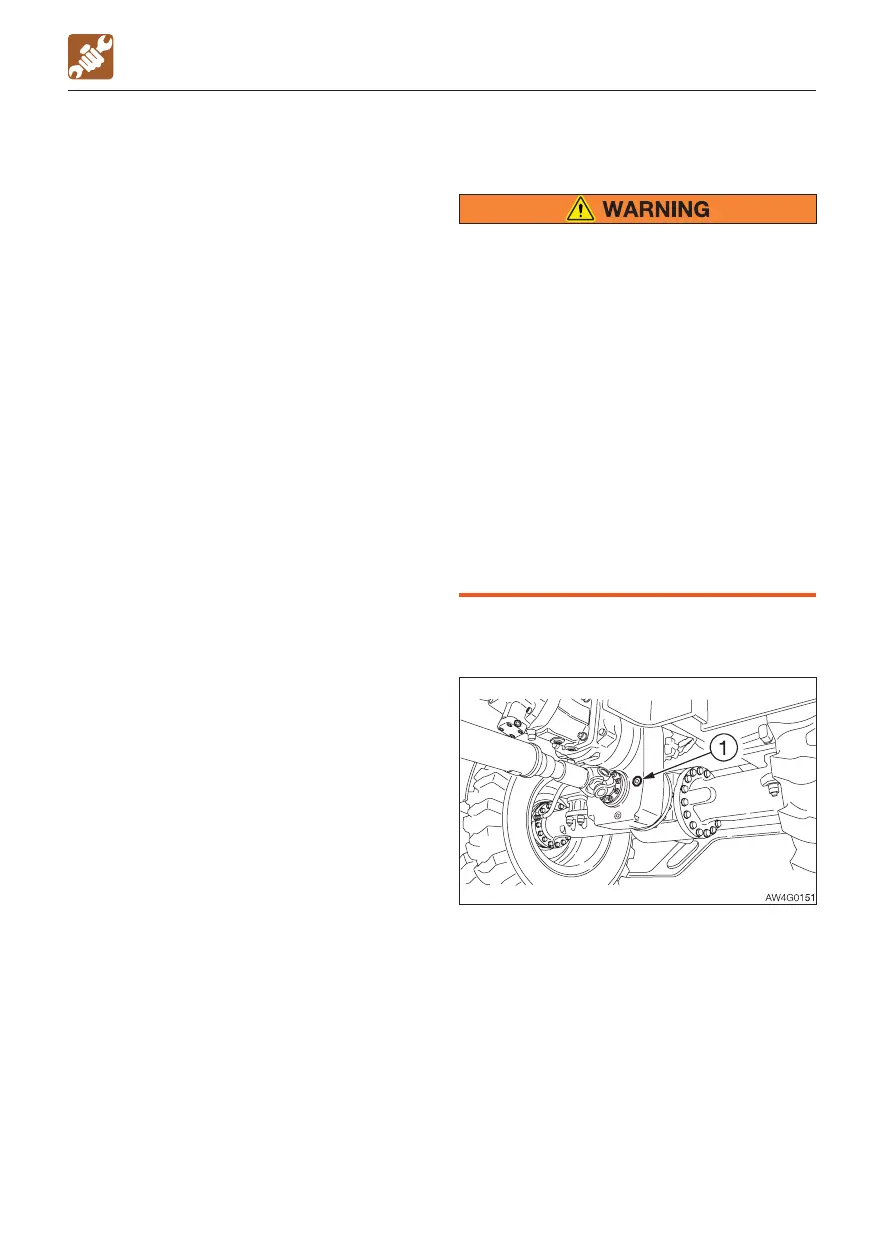

2. Remove the plug (1).
3. If oil is left on your finger when it is inserted
through the hole, the oil level is proper.
4. If the level is too low, add oil through the
hole of the plug (1) until the oil flows from
the hole.
5. Install the plug (1) and tighten it.
· Tightening torque: 80 N·m (59.3 ft-lb.)
EVERY 500 HOURS
REPLACING THE ENGINE OIL AND THE
OIL FILTER
Refer to “Replacing the engine oil and the oil
filter” on page 5-28.
