6-9
TROUBLESHOOTING
IF A FUSE BLOWS

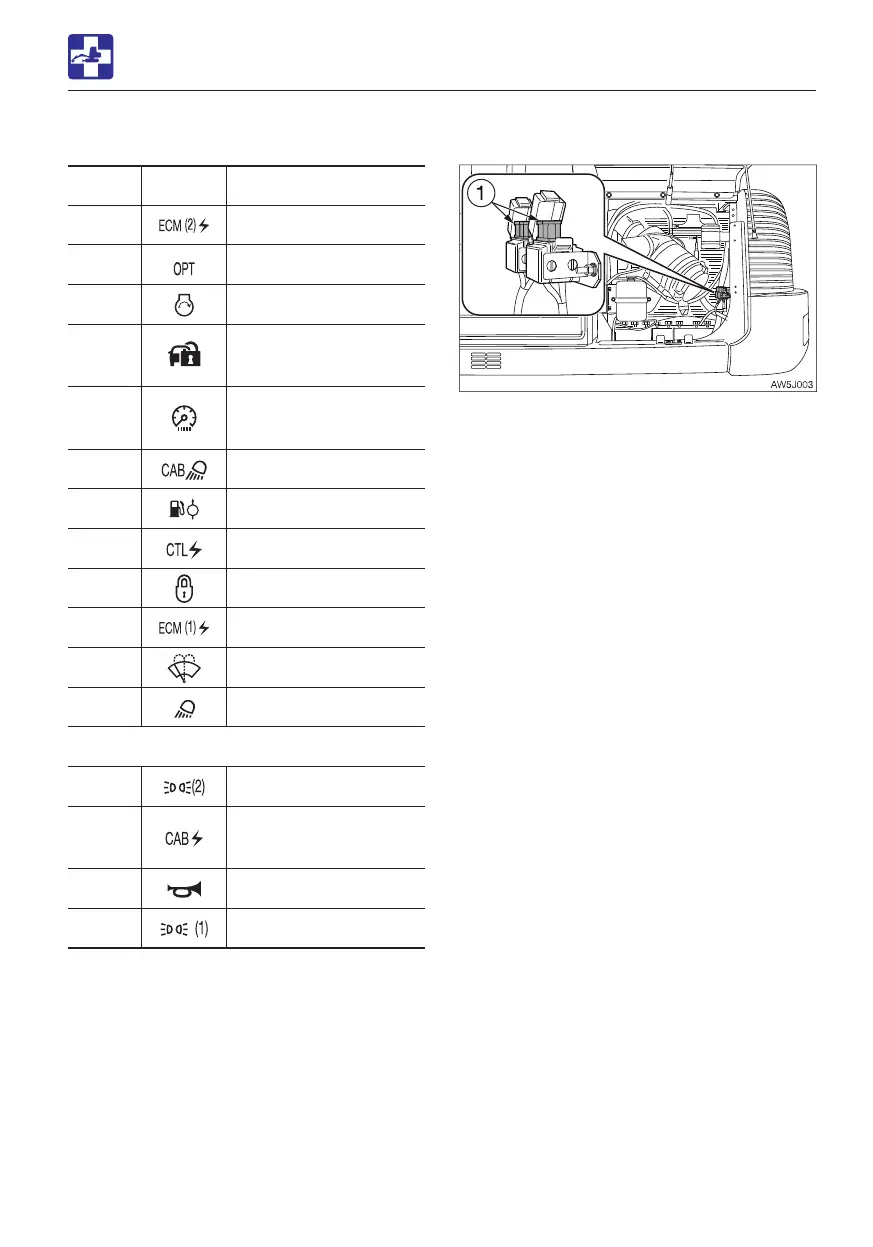

INSPECTING THE FUSIBLE LINK
If the machine is not turned on after turning
the starter switch to the ON position, the
cartridge type fusible links (1) is likely blown.
Open the left side cover for inspection. If the
fusible link is blown, contact your sales or
service dealer.
Note: Fusible links are large type fuses used
in high current applications. Like a regular
fuse, they act as fuses by protecting the
electric components and wirings from
damage caused by excessive current draw.
Capacity
Symbol Protected circuit
10A
ECM (2) power source
25A
Option
10A
Starter switch
5A
Immobilizer power
source
20A
Multi-information
display
30A
Cab power supply
5A
Feed pump
10A
Controller power supply
15A
Lever lock
10A
ECM (1) power source
10A
Wiper
20A
Light
3A
Position lamps (2)
5A
Cab interior power
supply
10A
Horn
3A
Position lamps (1)
To Next Page
