Takeuchi TB1160W User Manual

2-44
CONTROLS
SWITCHES
THIRD AUXILIARY HYDRAULIC SWITCH
AND BUTTON
Refer to “Third auxiliary hydraulic switch and
button” on page 2-68.
AUX. 2/4 SELECT BUTTON
Refer to “Aux. 2/4 select button (If equipped) ”
on page 2-69.

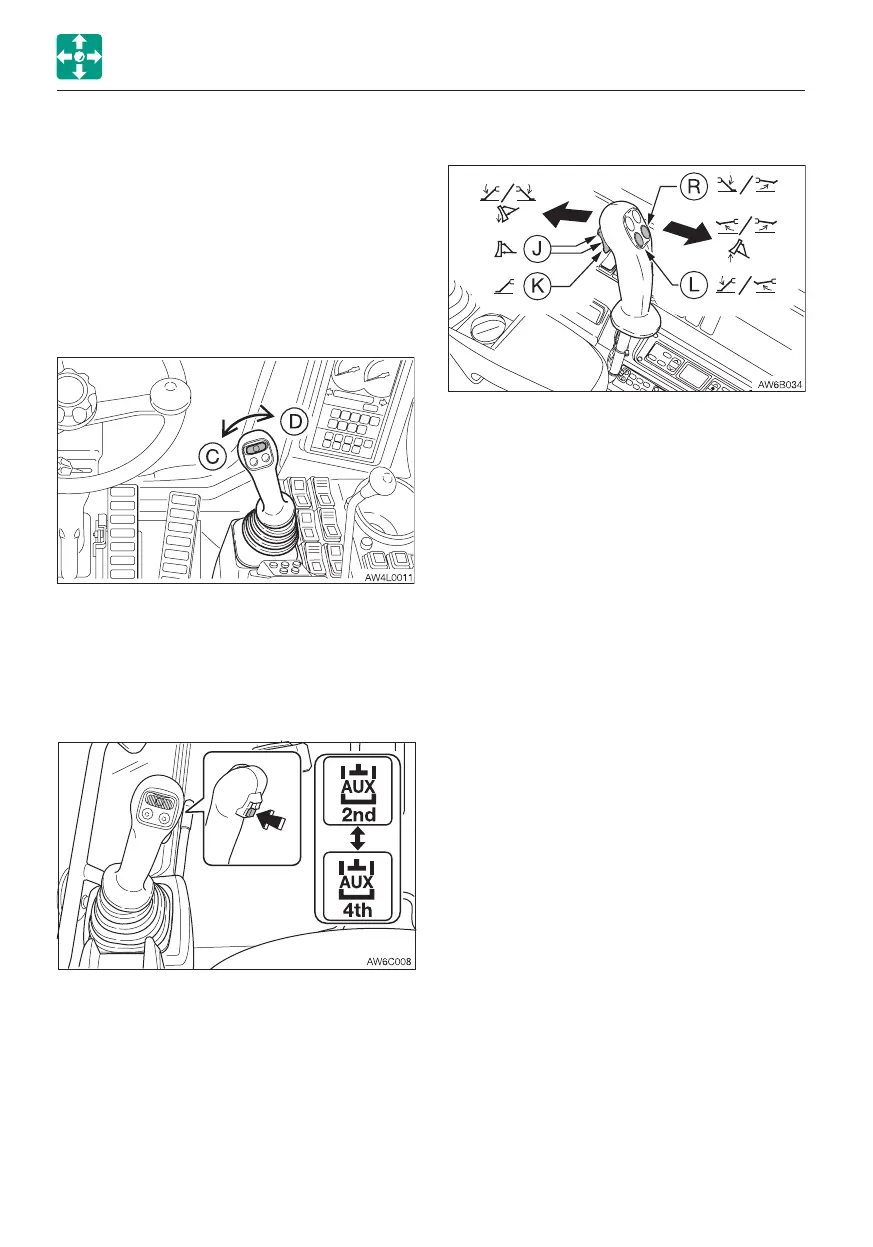

OUTRIGGER SWITCHES (IF EQUIPPED)
J .........Dozer blade operation (both sides)
K ........Outrigger operation (both sides)
L .........Left outrigger operation
R ........Right outrigger operation
The outrigger operation is performed with the
blade /outrigger lever.
A/C
AUTO
TEMP
OFF
DENSO
SECOND /FOURTH AUXILIARY
HYDRAULIC SWITCH
Slider switch
(Proportional control)
Proportional control allows for slow-to-fast/
fast-to-slow movement of attachment.
Example: If you move the slider switch half
way, the attachment will move at
approximately one-half the speed.
Move this switch to control the flow of the oil
in the second auxiliary hydraulic lines.
(C): .....Hydraulic oil flows to the left auxiliary
line (c).
(D): .....Hydraulic oil flows to the right auxiliary
line (d).
To use the fourth auxiliary hydraulic, press
the Aux. 2/4 select button to change the line
to the fourth auxiliary hydraulic.
Refer to “Auxiliary hydraulic lines” on page
2-65 to 2-69.
