Takeuchi TB1160W User Manual

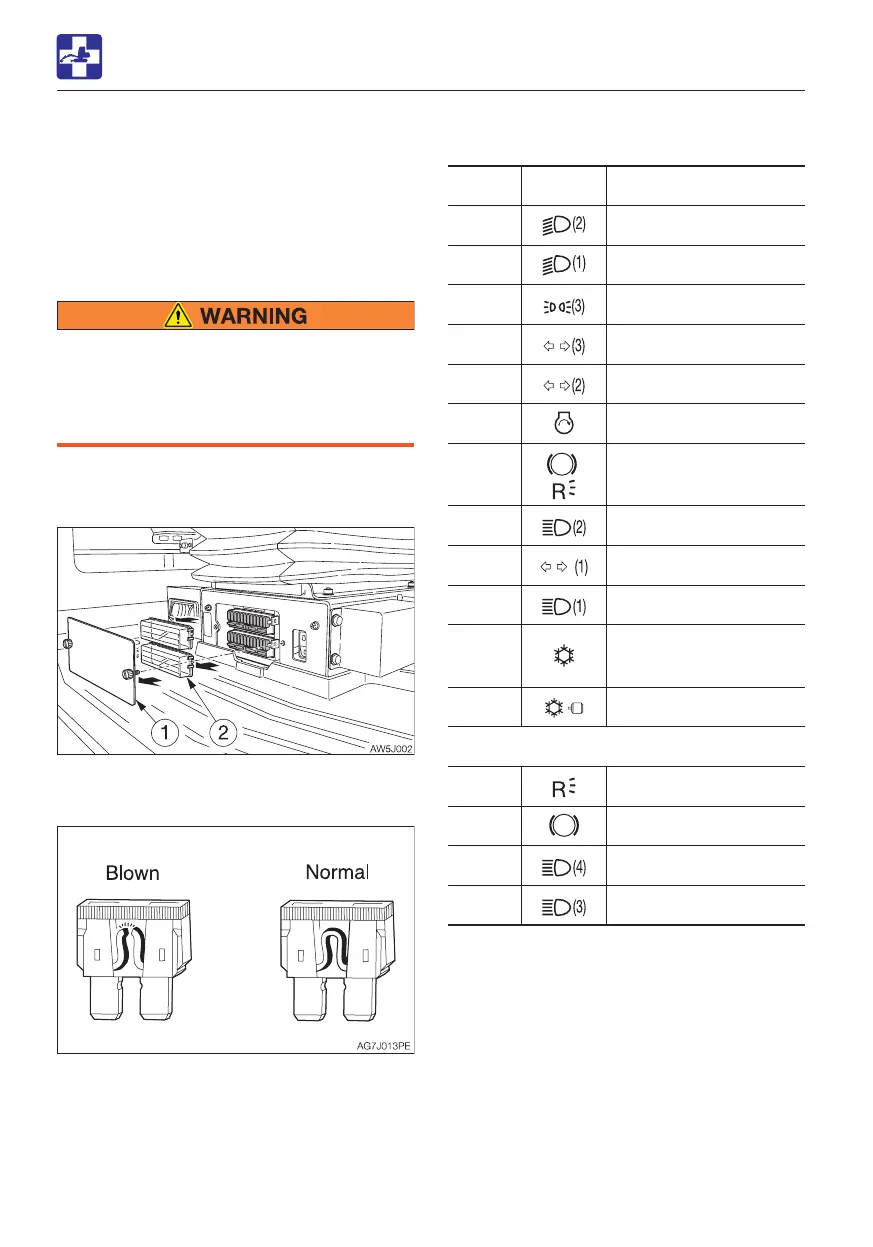

6-8
TROUBLESHOOTING
IF A FUSE BLOWS
If a light does not come on or the electrical
system does not work, a fuse may be blown.
Inspect the fuses.
INSPECTING AND REPLACING THE FUSE
If the fuse blows again soon after
replacement, then the electric system is
likely faulty. It may pose a fire hazard if
not properly repaired. Contact your sales
or service dealer for advice.
1. Turn the starter key to the OFF position to
stop the engine.
IF A FUSE BLOWS
2. Open the fuse box covers (1) and (2).
3. Inspect for blown fuses.
4. If a fuse is blown, replace it with a spare
fuse of the same capacity.
Fuse layout and circuits protected
Capacity Symbol Protected circuit
10A
Head light low Beam (2)
10A
Head light low Beam (1)
3A
Position lamps (3)
10A
Turn Signal (3)
10A
Turn Signal (2)
10A
Starter switch
10A
Brake lamp
/Reverse light
20A
Head light high Beam (2)
10A
Turn Signal (1)
5A
Head light high Beam (1)
20A
Air conditioner
compressor
25A AC motor
10A
Reverse light
10A
Brake lamp
10A
Head light high Beam (4)
10A
Head light high Beam (3)
