3-14
OPERATION
OPERATING THE WORKING EQUIPMENT
Warning
•Beforestartingoperation,carefully
check which lever pattern you are going
to use.
•ItisdescribedusingtheISOpatternin
this manual.

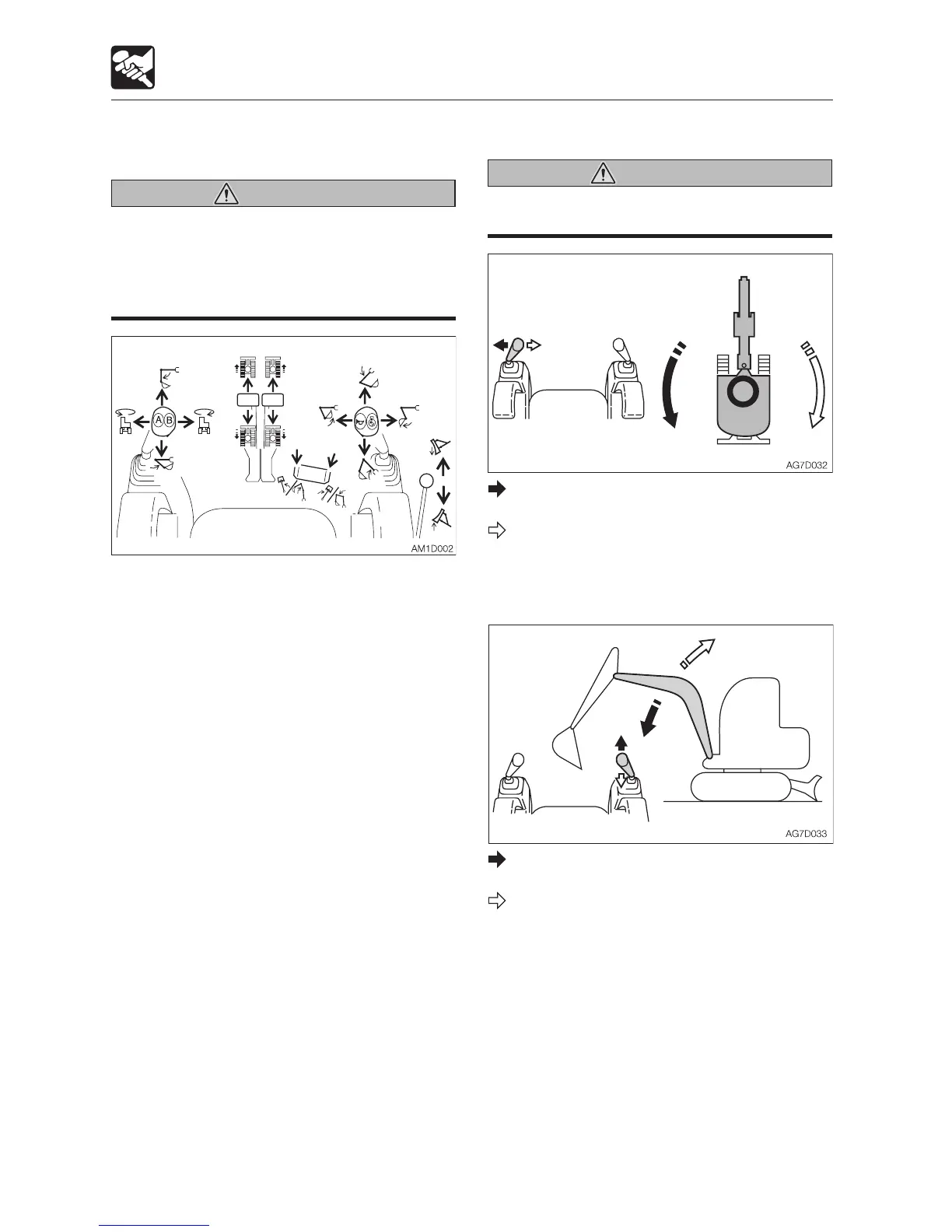

OPERATING THE MACHINE
Use the right operating lever to operate the
boom and bucket.
Use the left operating lever to operate the
arm and slewing.
Return the operating levers to the neutral
position to stop the hoe attachments.
1.Lowerthesafetylocklevertothe
unlocked position.
2. Set the pedal cover to the unlocked
position.
Upperstructure slew left:
Tilt the left operating lever to the left.
Upperstructure slew right:
Tilt the left operating lever to the right.
Operating the boom
Slewing
Warning
Check the surrounding area for safety
before slewing.
Boom lower:
Tilt the right operating lever forward.
Boom raise:
Tilt the right operating lever backward.
To Next Page
