CONTROLS

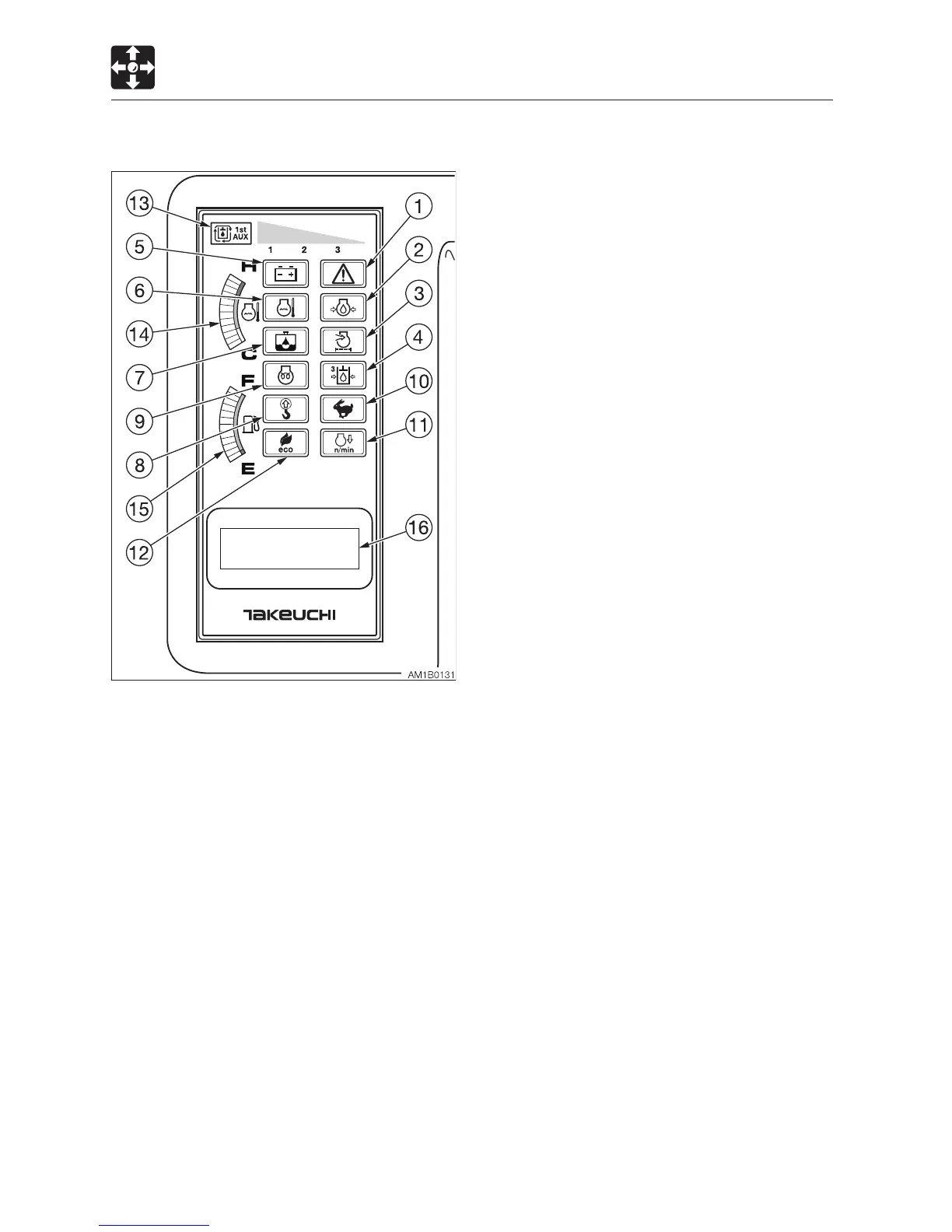

INSTRUMENT CLUSTER
INSTRUMENT CLUSTER
Once the starter switch is turned to ON, all
lamps on the instrument cluster light up and
the alarm sounds.
If any of the lamps are not lit, the globes may
be blown. Consult your sales or service
dealer.
WARNING LAMPS
IMPORTANT: If a warning lamp flashes
and an alarm is sounded, immediately
stop all operations and check the
corresponding component.
Refer to “If a warning lamp flashes” on
pages 6-10 and 6-11.
1.
Vehicle and engine emergency lamp
While the engine is running, this lamp
flashes and an alarm sounds if the engine
oil pressure drops, the coolant
temperature becomes too high, the
charge or the water separator becomes
faulty or the air cleaner becomes
abnormal. Get the vehicle or engine error
code number from the multi-data display
and consult your sales or service dealer
referring to the “Vehicle error code list” or
“Engine error code list”.
2.
Engine oil pressure warning lamp
This lamp flashes and an alarm is sounded
if the lubricant oil pressure abnormally low
while the engine is running.
3. Air cleaner warning lamp
This lamp flashes and an alarm is sounded
if the air cleaner filter is clogged while the
engine is running.
4. Third auxiliary hydraulic warning lamp
This lamp lights up and an alarm sounds if
the fixed side (left “e”) pressure of the third
auxiliary hydraulic line drops abnormally
while the engine is running, or while the
quick-hitch is being removed or installed.
5. Battery charge warning lamp
This lamp flashes and an alarm is sounded
if a problem rises in the charging system
while the engine is running.
6. Coolant temperature warning lamp
This lamp flashes and an alarm is sounded
if the engine coolant temperature
becomes abnormally high while the engine
is running.
7. Water separator warning lamp
This lamp flashes if the water is detected
within the water separator while the starter
switch is in the ON position.
8. Overload warning lamp
This lamp turns on when the overload
waning switch is turned on.
