2-27
CONTROLS

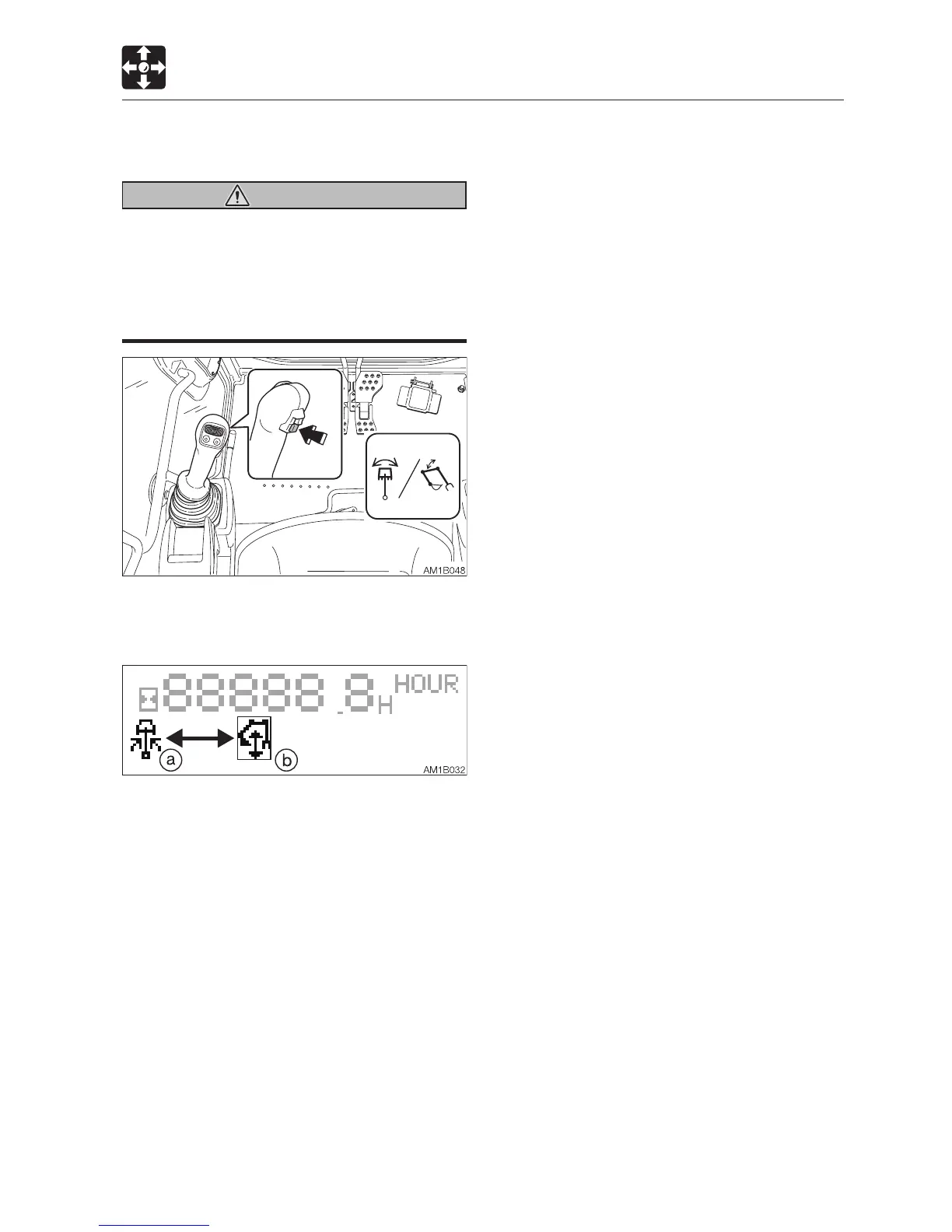

SWING/SECOND BOOM SELECT BUTTON
Warning
Turning on this switch while the boom
swing pedal is depressed is dangerous,
as the attachment may move
unexpectedly. Always set the boom swing
pedal back to the neutral position before
operating the select switch.
SWITCHES
This switch is used to select either the boom
swing operation or the second boom
operation.
When the switch is turned on, the second
boom
display(b)appearsontheLCDto
indicate that the second boom operation is
enabled. When the switch is turned off, the
display is changed to the boom swing to
indicate (a) that the boom swing operation is
enabled.
The actual boom swing operation is
performed with the boom swing pedal.
Refer to “Boom swing pedal” on page 2-33.
THIRD AUXILIARY HYDRAULIC BUTTON
Refer to “Third auxiliary hydraulic switch and
button” on page 2-49.
AUXILIARY 2/4 SELECT BUTTON
Refer to “Auxiliary 2/4 select button” on
2-50.
