CONTROLS

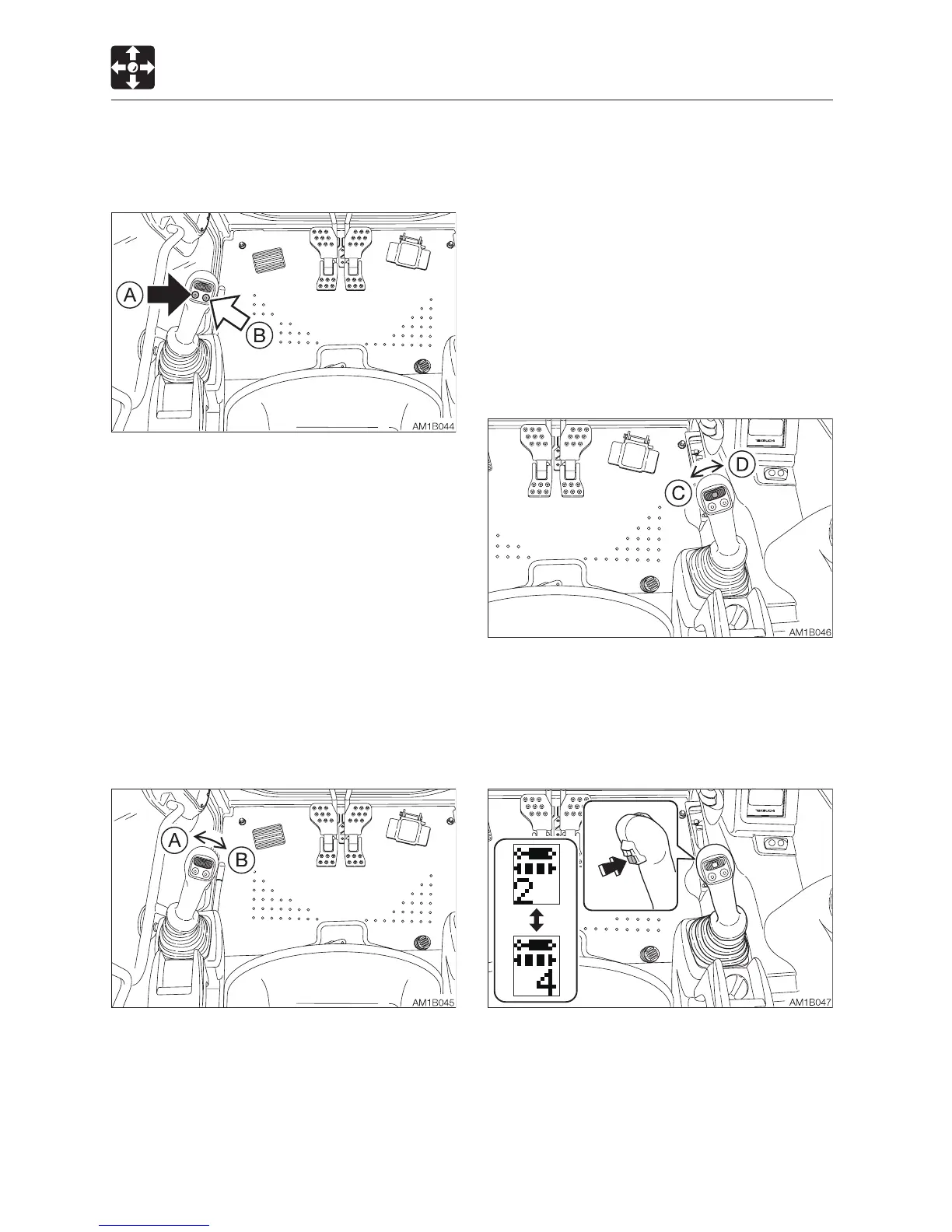

AUXILIARY 1ST SWITCH
Auxiliary hydraulic buttons
SWITCHES
Press those buttons to control the flow of the
oil in the first auxiliary hydraulic lines.
•Proportionalcontroloftheauxiliary
hydraulic circuit is not possible.
(A) .......Hydraulicoilowstotheleftauxiliary
line (a).
(B) ......Hydraulicoilowstotherightauxiliary
line (b).
Slider switch
(Proportional control)
Proportional control allows for slow-to-fast/
fast-to-slow movement of attachment.
Example: If you move the slider switch half
way, the attachment will move at
approximately one-half the speed.
Move this switch to control the flow of the oil
in the first auxiliary hydraulic lines.
(A)
.......Hydraulicoilowstotheleftauxiliary
line (a).
(B) ......Hydraulicoilowstotherightauxiliary
line (b).
Refer to “Auxiliary hydraulic lines” on page
2-46 to 50.
AUXILIARY 2ND/4TH SWITCH
Slider switch
(Proportional control)
Proportional control allows for slow-to-fast/
fast-to-slow movement of attachment.
Example: If you move the slider switch half
way, the attachment will move at
approximately one-half the speed.
Move this switch to control the flow of the oil
in the second auxiliary hydraulic lines.
(C):
.....Hydraulicoilowstotheleftauxiliary
line (c).
(D): .....Hydraulicoilowstotherightauxiliary
line (d).
To use the auxiliary 4th hydraulic line, press
the auxiliary 2/4 select button to change to
the operation of the auxiliary 4th.
Refer to “Auxiliary hydraulic lines” on page
2-46.
