CONTROLS

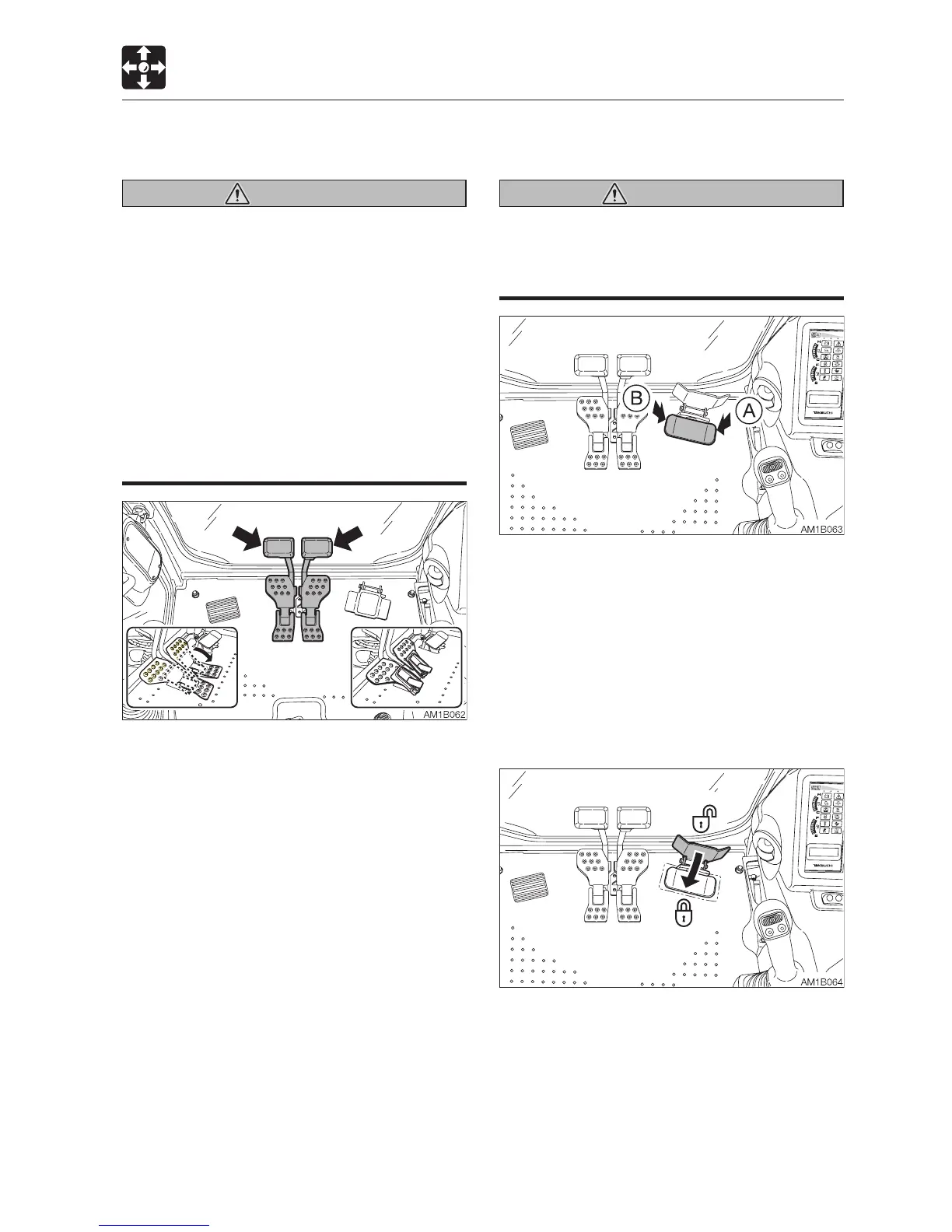

TRAVEL LEVERS/PEDALS
Warning
•Beforeoperatingthetravellevers/
pedals, make sure that the dozer blade
is to the front of the operator’s seat.
Remember that when the dozer blade is
to the rear of the operator’s seat, the
travel levers/pedals must be operated in
the reverse direction from when it is to
the front.
•Donotrestyourfootonthepedal
unless operating it for traveling. If the
pedal is accidentally stepped while
working, the machine may suddenly
move and cause serious injury or death.
Use these levers/pedals to move forward or
backward and to change directions. Fold the
pedals when not being used.
Refer to “Operating the travel levers” on
page 3-10.
LEVERS AND PEDALS
BOOM SWING PEDAL
Warning
Keep the pedal cover to the locked
position when not using the pedal.
Stepping on a pedal accidentally when it
is not locked may cause accidents.
Use this pedal to operate the boom swing.
If the 2-piece boom select switch is pressed,
the operation will change to the second
boom.
(A)
.......Boom swing right/Second boom raise
(B) ......Boom swing left/Second boom lower
Refer to “Operating the boom swing” on
page 3-15.
Pedal lock
Set the pedal cover over the pedal to lock it.
Open the pedal cover from the pedal to
unlock it.
