CONTROLS
SEAT AND SEAT BELT
SEAT
Warning
•Adjustandsecuretheseat.
•Donotmakeanyadjustmentswhile
operating the machine.
SEAT AND SEAT BELT

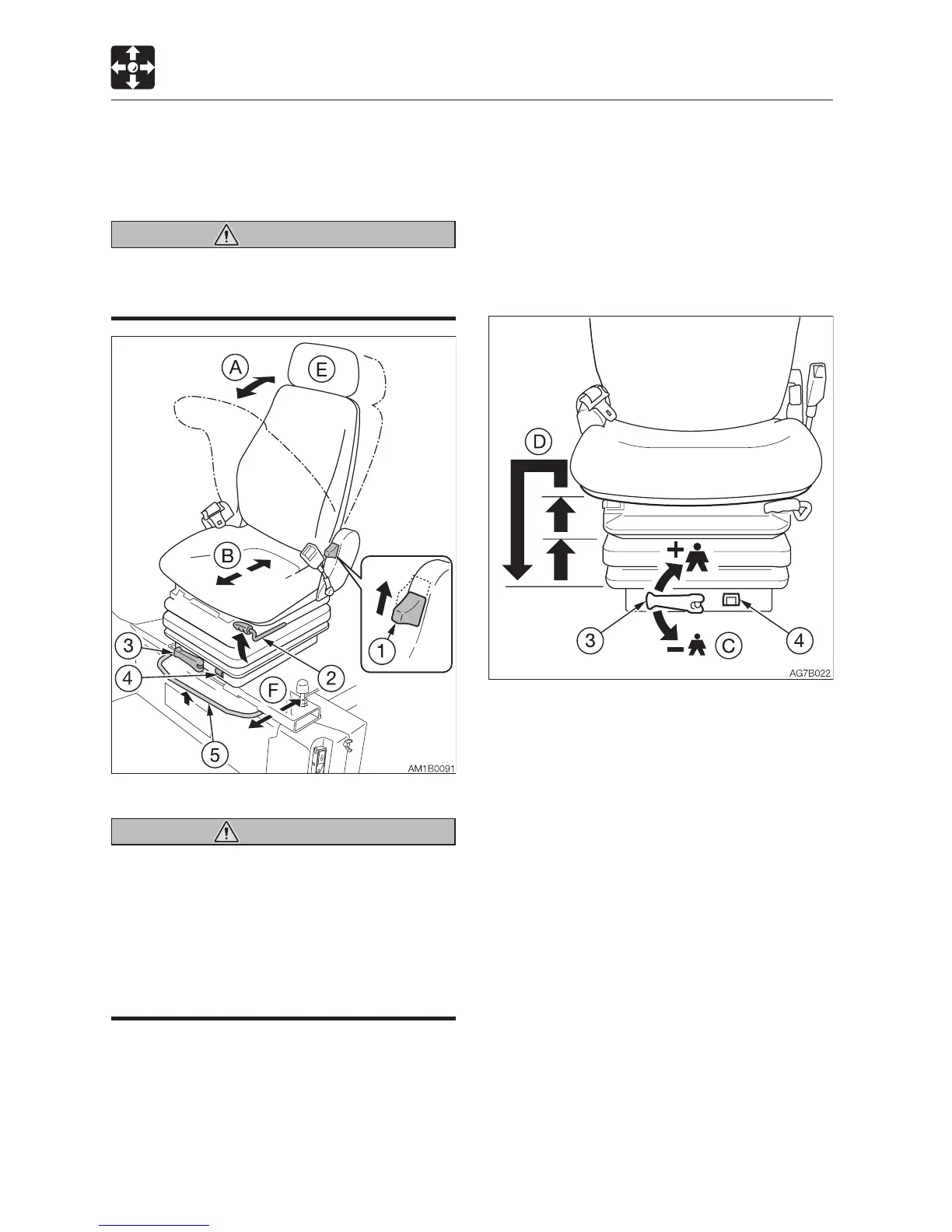

(A) Adjusting the backrest angle
Warning
•Donotsetthebackresttoitsmaximum
reclining position and slide the seat
backwards at the same time. Doing so
may damage the rear window or cause
injury.
•Rememberthatthebackrestreturnsto
the forward position abruptly due to the
spring force.
1.
Sit up and sit back in the chair.
2. Pull up the lever (1), recline the backrest
by using the spring force. Release the
lever (1) at the desired angle to secure the
backrest.
(C) Adjusting according to operator’s
weight
1. Turn the handle (3) until the scale indicates
the weight of operator.
 Adjustmentrange:50to130kg(110to
287 lbs)
(D) Adjusting the height of the seat
Upward
1.Lifttheseattorstorsecondposition
click-stop.
 Adjustmentranges:2positions,in60mm
(2.36 in.)
Downward
1. First lift the seat to highest position, then
the seat can be lowered to lowest
position.
(B) Fore-and-aft adjustment
1. Pull up the lever (2) and slide the seat
backward or forward to the desired
position for operation of machine.
2. Release the lever (2) at the desired
position to secure the seat.
 Adjustmentrange:15positions,in150
mm (5.9 in.)
