Multi Pro 1750
Page 5 − 64
Electrical System
Electric Hose Reel Kit Switch (Optional)
The electric hose reel kit switch is a momentary push
button switch used to energize the hose reel relay. The
hose reel switch is located toward the rear of the control
console (Fig. 93).
Testing
1. Park machine on a level surface, stop spray pump,
stop engine and engage parking brake. Remove key
from ignition switch.
2. Remove console panel. Locate hose reel switch and
unplug wire harness connector from switch.
3. With the use of a multimeter (ohms setting), electric
hose reel kit switch functions may be tested to determine
whether continuity exists across the terminals for each
switch position. Continuity (zero ohms resistance)
should exist across the switch terminals when the switch
is depressed. There should not be continuity (infinite
ohms resistance) across the switch terminals when the
switch is not depressed.
4. Replace switch if testing determines that it is faulty.
5. If the switch tests correctly and a circuit problem still
exists, check wire harness (see Electrical Schematic
and Wire Harness Drawings in Chapter 10 − Electrical
Drawings in this manual).
6. Connect the wire harness connector to the switch af-
ter testing. Secure console panel to machine.

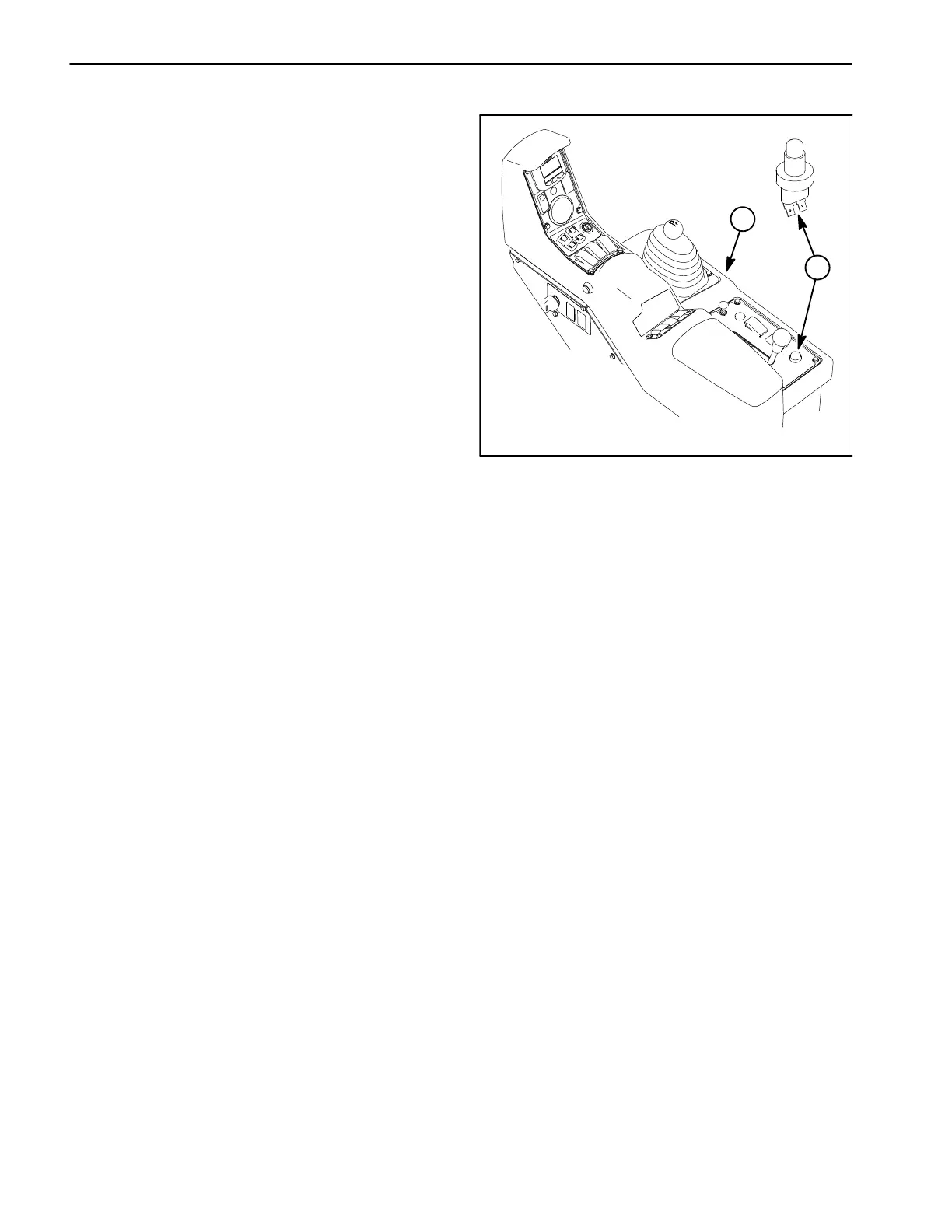

1. Control console 2. Electric hose reel kit
switch (opt.)
Figure 93
1
2
