Toro Multi Pro 1750 Service Manual

Multi Pro 1750Page 6 − 42Spray System

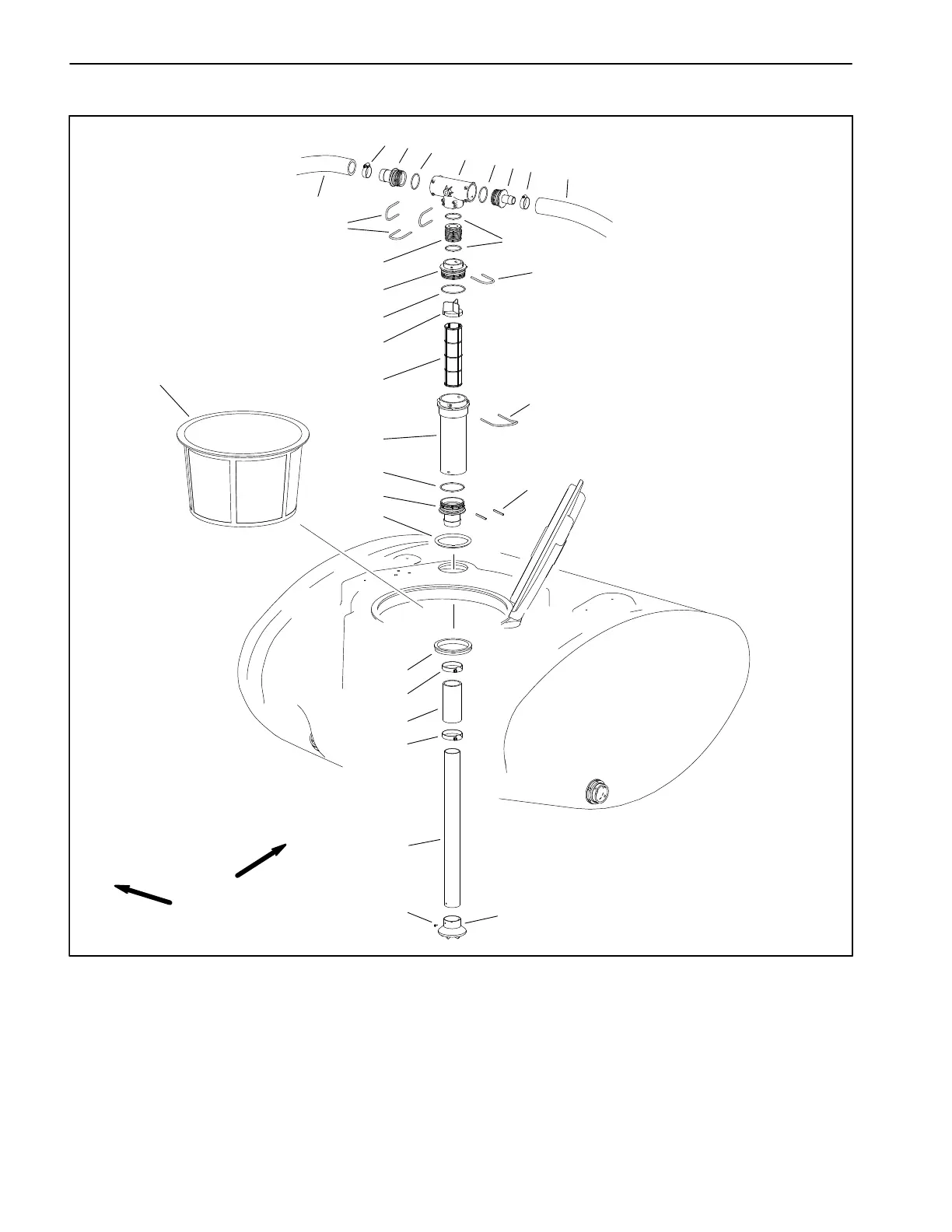

Suction Tube and Strainer
1. Filter basket
2. Tee
3. O−Ring (4)
4. Straight fitting
5. Hose clamp
6. Hose (from agitation bypass valve)
7. Straight fitting
8. Hose clamp
9. Hose (to spray pump)
10. Fork (4)
11. Connector
12. Filter adapter
13. O−Ring
14. Screen vane
15. Strainer screen
16. Suction filter body
17. Fork
18. O−Ring
19. Spring pin (2)
20. Straight fitting
21. Gasket
22. Filter bulkhead nut
23. Hose clamp (2)
24. Hose
25. Suction tube
26. Suction foot
27. Screw
Figure 28
FRONT
RIGHT
1
2
3
4
5
6
7
8
9
10
11
3
12
13
14
15
16
17
18
20
3
10
19
21
22
23
24
25
26
27
23
