Toshiba H9 ASD User Manual

110 H9 ASD Installation and Operation Manual
RR Input Point 1 Setting
Program Frequency Speed Reference Setpoints
This parameter is used to set the gain and bias of the RR input terminal when
the RR terminal is used as the control input while operating in the Speed
Control mode or the Torque Control mode.
This parameter sets the RR input level that is associated with the RR Input
Point 1 Frequency setting when operating in the Speed control mode or is
associated with the RR Input Point 1 Rate setting when operating in the
Torque Control mode.
Speed Control

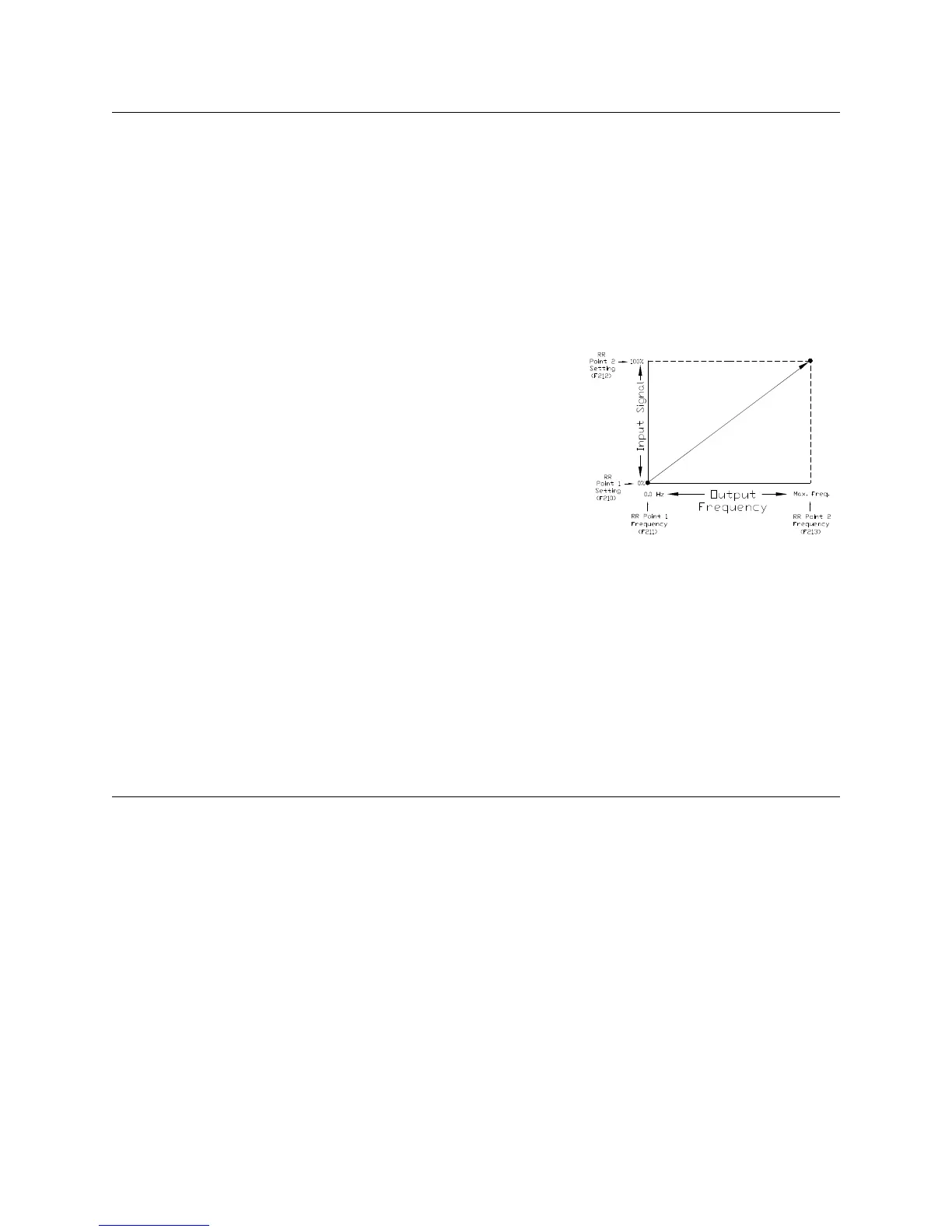

Perform the following setup to allow the system to perform Speed control from
the RR input terminal:
•Set RR Input Point 1 Frequency (F211).
•Set RR Input Point 1 Setting (F210) — the input analog signal level that
corresponds to the frequency setting at RR Input Point 1 Frequency.
•Set RR Input Point 2 Frequency (F213).
•Set RR Input Point 2 Setting (F212) — the input analog signal level that
corresponds to the frequency setting at RR Input Point 2 Frequency.
RR Input Speed Control Setup
Perform the following setup to allow the system to receive Speed control input
at the RR input terminal:
•Program Fundamental Standard Mode Selection Frequency Mode
1 RR.
•Program Fundamental Standard Mode Selection Command Mode
Selection Terminal Block.
•Provide a Run command (F and/or R).
Once set, as the RR input voltage changes, the output frequency of the ASD
will vary in accordance with the above settings.
This parameter value is entered as 0% to 100% of the RR
i
nput signal range.
Direct Access Number — F210
Parameter Type — Numerical
Factory Default — 0
Changeable During Run — Yes
Minimum — 0
Maximum — 100
Units — %
Frequency Settings
RR Input Point 1 Frequency
Program Frequency Speed Reference Setpoints
This parameter is used to set the gain and bias of the RR input terminal when
the RR terminal is used as the control input while operating in the Speed
Control mode.
This parameter sets RR Input Point 1 Frequency and is the frequency that is
associated with the setting of RR Input Point 1 Setting when operating in the
Speed Control mode.
See RR Input Point 1 Setting (F210) for more information on this setting.
Direct Access Number — F211
Parameter Type — Numerical
Factory Default — 0.00
Changeable During Run — Yes
Minimum — 0.00
Maximum — Max. Freq. (F011)
Units — Hz
R
F210 F211
