Triumph 1050 Sprint User Manual

103
Maintenance and Adjustment
Sprint GT

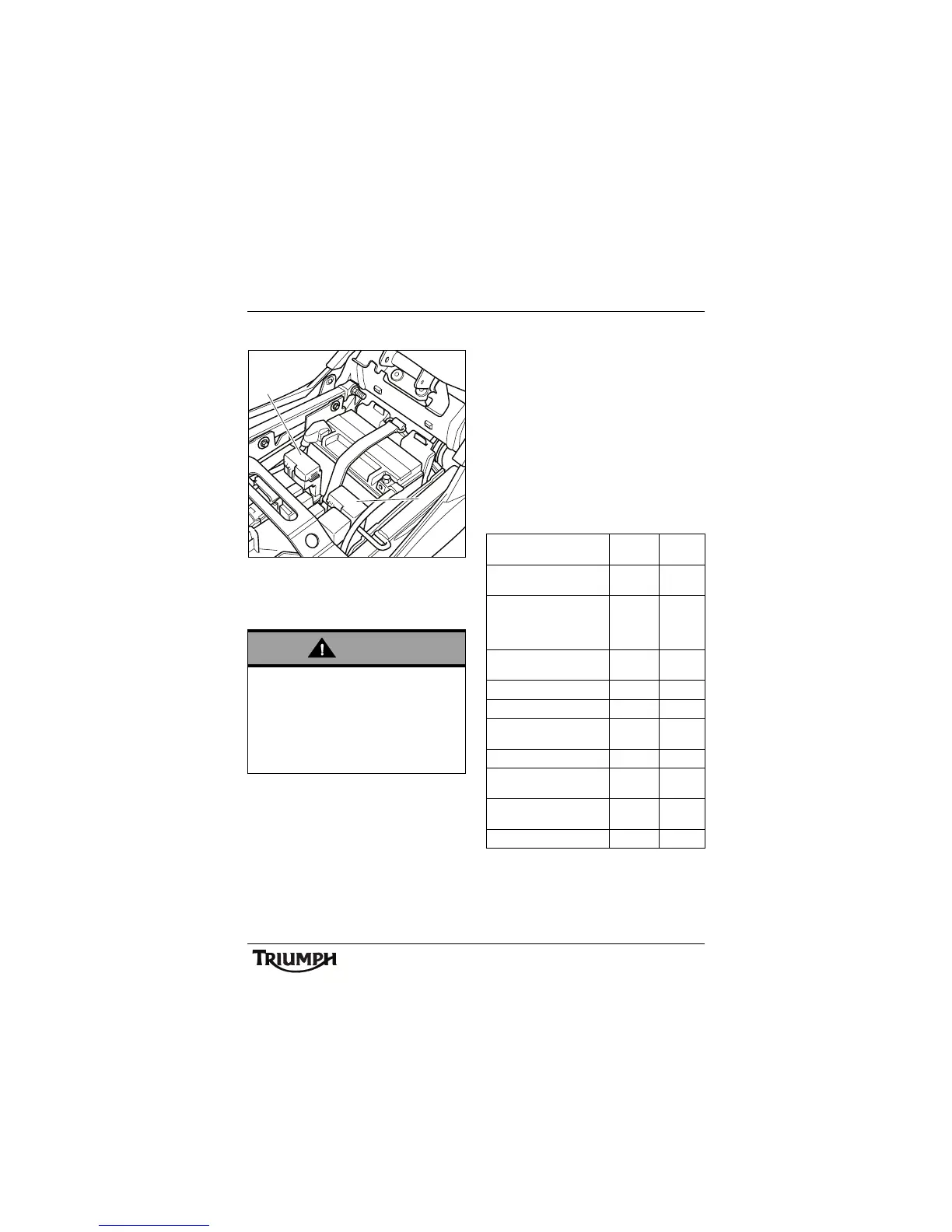

1. Left fuse box
2. Right fuse box
The fuse boxes are located beneath the seat.
Remove the seat to access the fuse boxes.
Fuse Identification - Sprint ST
The fuses can be identified by a number
moulded into the fusebox housing, adjacent
to each fuse, as shown below. These numbers
correspond to the numbers given in the table
below. Fuses without an identification
number are spare, and should be replaced if
used.
A blown fuse is indicated when all of the
systems protected by that fuse become
inoperative. When checking for a blown fuse,
use the table below to establish which fuse
has blown.
Warning
Always replace blown fuses with new ones
of the correct rating (as specified on the
fuse box cover) and never use a fuse of
higher rating. Use of an incorrect fuse
could lead to an electrical problem,
resulting in motorcycle damage, loss of
motorcycle control and an accident.
1
cgdr
2
Circuit Protected Position Rating
(Amps)
Starter solenoid, dip and
main beam headlights
120
Ignition switch main feed,
tail lights, number plate
light, side lights, fuel
pump
210
Indicators, brake light,
horn
310
Not used 4
Not used 5
Accessory socket, heated
grips
610
Cooling fan 7 15
Engine management
system
810
Alarm, diagnostic
connector, instruments
910
GPS 10 2

Triumph 1050 Sprint Specifications

General

Engine Type	Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Displacement	1050 cc
Bore x Stroke	79 x 71.4 mm
Compression Ratio	12.0:1
Fuel System	Multipoint sequential electronic fuel injection
Final Drive	X ring chain
Clutch	Wet, multi-plate
Gearbox	6-speed
Front Brakes	Twin 320mm floating discs, 4 piston calipers
Rear Brakes	Single 255mm disc, 2 piston caliper
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Dry Weight	210 kg
Exhaust	Stainless steel 3 into 1 exhaust system
Ignition	Digital - inductive type
Frame	Aluminum beam perimeter
Front Suspension	43mm
Rear Suspension	Monoshock with adjustable preload
Rake/Trail	24 degrees
Dimensions	Length: 2, 115 mm, Width: 760 mm, Height: 1, 210 mm
